Operation & Safety
Manual
Original Instructions -
Keep this manual with the machine at all times.

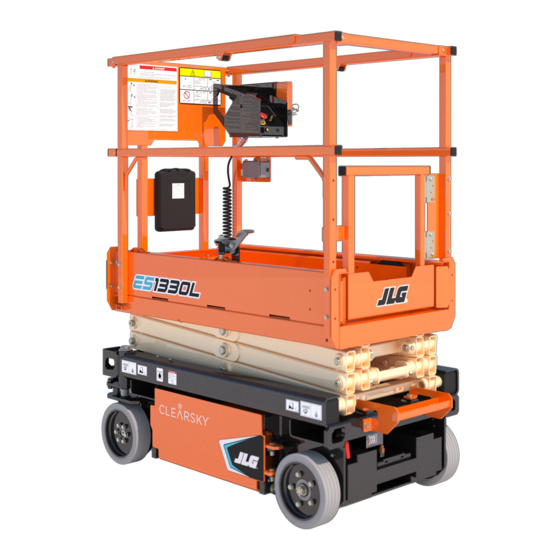

Model
ES1330L, ES1530L
PVC 2304
31221553
August 1, 2023 - Rev B
Copyright ©
ANSI
AS/NZS MOL70 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES1330L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JLG ES1330L

Summary of Contents for JLG ES1330L

  • Page 1 Operation & Safety Manual Original Instructions - Keep this manual with the machine at all times. Model ES1330L, ES1530L PVC 2304 31221553 August 1, 2023 - Rev B Copyright © ANSI AS/NZS MOL70 GB...
  • Page 2 WARNING Operating, servicing and maintaining this vehicle or equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other re- productive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle or equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing.

  • Page 3: Revision Log

    REVISION LOG Description Date Revision April 10, 2023 Original Issue August 1, 2023 Revision Other Publications Available Publication Publication Number 31221553 Service & Maintenance Manual 31221555 (ES1330L); 31221570 (ES1530L) Illustrated Parts Manual ES1330L, ES1530L 31221553...
  • Page 4 This Page is intentionally left blank...

  • Page 5: Foreword

    Due to continuous product improvements, JLG Industries, Inc. reserves the right to make specification changes without prior notification. Contact JLG Industries, Inc. for updated information.
  • Page 6 It may also alert against unsafe practices. This decal will have a yellow background. NOTICE Indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property. 31221553 ES1330L, ES1530L...
  • Page 7 NOTICE JLG Industries, Inc. sends safety related bulletins to the owner of record of this machine. Contact JLG Industries, Inc. to ensure that the current owner records are updated and accurate.
  • Page 8 Questions Regarding Product Modifications Contact: Product Safety and Reliability Department JLG Industries, Inc. 13224 Fountainhead Plaza Hagerstown, MD 21742 or Visit www.jlg.com to find your local JLG office. In USA: Toll Free: 877-JLG-SAFE (877-554-7233) Outside USA: Phone: 240-420-2661 Fax: 301-745-3713 E-mail: ProductSafety@JLG.com...

  • Page 9: Table Of Contents

    Platform Loading ............... 36 Machine Control Locations ..........37 Battery Charging..............37 Ground Control Station............40 Platform Control Station ............. 44 Platform Manual Descent ............ 50 3.10 Grade And Side Slope ............51 3.11 Platform Extension ............. 51 ES1330L, ES1530L 31221553...
  • Page 10 Serial Number Identification ..........79 Machine Specifications ............79 Lubrication................ 83 Hydraulic Oil Check Procedure ..........85 Scissor Arm — Safety Prop ..........86 Battery Maintenance and Charging........87 Tires and Wheels..............89 Diagnostic Trouble Codes (DTC) ........... 91 31221553 ES1330L, ES1530L...
  • Page 11 Section Contents 6.10 Radio Frequency (RF) Information........101 6.11 Supplemental Information Only Applicable to CE/UKCA Machines ................ 102 6.12 EC Declaration of Conformity..........103 6.13 UKCA Declaration of Conformity ........104 ES1330L, ES1530L 31221553...
  • Page 12 This Page is intentionally left blank...

  • Page 13: Safety Precautions

    Read, understand, and study the Operation & Safety Manual in its entirety before operating the machine. For clarification, questions, or additional information regarding any portions of this manual, contact JLG Industries, Inc. • Only personnel who have received proper training regarding the inspection, application and operation of MEWPs (including recognizing and avoiding hazards associated with their operation) shall be authorized to operate a MEWP.
  • Page 14 Do not travel on unsupported surfaces. • This machine can be operated in nominal ambient temperatures of 0° F to 104° F (-20° C to 40° C). Consult JLG to optimize operation outside of this temperature range. 1.2.3 Machine Inspection •...

  • Page 15: Operation

    Do not allow personnel to tamper with or operate the machine from the ground with personnel in the platform, except in an emergency. • Do not carry materials directly on platform railing unless approved by JLG. • When two or more persons are in the platform, the operator shall be responsible for all machine operations.
  • Page 16 Prior to operation, ensure all gates and rails are fastened and secured in their proper position. • JLG Industries, Inc. recommends that all persons in the platform wear a full body harness with a lanyard attached to an authorized lanyard anchorage point while operating this machine. For further information regarding fall protection requirements on JLG products, contact JLG Industries, Inc.
  • Page 17 Maintain a clearance of at least 10 ft (3m) between any part of the machine and its occupants, their tools, and their equipment from any electrical line or apparatus carrying up to 50,000 volts. One foot additional clearance is required for every additional 30,000 volts or less. ES1330L, ES1530L 31221553...
  • Page 18 • Never exceed the maximum platform capacity as specified on the platform. Keep all loads within the confines of the platform, unless authorized by JLG. • Keep the chassis of the machine a minimum of 2 ft (0.6m) from holes, bumps, drop- offs, obstructions, debris, concealed holes, and other potential hazards at the ground level.
  • Page 19 Do not increase the platform size with unauthorized modifications, deck extensions, or attachments. WARNING Do not operate the machine when wind conditions exceed specifications shown in the General Specifications section of this manual or as shown on the capacity placard on the platform billboard. ES1330L, ES1530L 31221553...
  • Page 20 During operation, keep all body parts inside platform railing. • Keep hands and limbs out of the scissor arm assembly during operation and when elevated without safety prop engaged. • Always post a lookout when driving in areas where vision is obstructed. 31221553 ES1330L, ES1530L...

  • Page 21: Towing, Lifting, And Hauling

    • When lifting machine with a forklift, position forks only at designated areas of the machine. Lift with a forklift of adequate capacity. • Refer to the Machine Operation section of this manual for lifting information. ES1330L, ES1530L 31221553...

  • Page 22: Maintenance

    Wear gloves to help protect hands from spraying fluid. • Use only replacement parts or components that are approved by JLG. To be considered approved, replacement parts or components must be identical or equivalent to original parts or components.
  • Page 23 Immediately rinse any contacted area with clean water and seek medical attention. • Charge batteries only in a well ventilated area. • Avoid overfilling the battery fluid level. Add distilled water to batteries only after the batteries are fully charged. ES1330L, ES1530L 31221553...
  • Page 24 This Page is intentionally left blank...

  • Page 25: User Responsibilities, Machine Preparation, And Inspection

    2.1.3 Operator Responsibility The operator must be instructed that they have the responsibility and authority to shut down the machine in case of a malfunction or other unsafe condition of either the machine or the job site. ES1330L, ES1530L 31221553...

  • Page 26: Preparation, Inspection, And Maintenance

    6. Accessories and optional equipment. PREPARATION, INSPECTION, AND MAINTENANCE The following table covers machine inspections and maintenance required by JLG Industries, Inc. Consult local regulations for further requirements for MEWPs. The frequency of inspections and maintenance must be increased as necessary when the machine is used in a harsh or hostile environment, if the machine is used with increased frequency, or if the machine is used in a severe manner.

  • Page 27: Pre-Start Inspection

    Manual Service & Mainte- nance Manual Note: Inspection forms are available from JLG. Use the Service & Maintenance Manual to perform inspections. NOTICE JLG Industries, Inc. recognizes a factory trained service technician as a person who has successfully completed the JLG Service Training School for the specified JLG product model.
  • Page 28 Keep gate closed at all times except when entering/exiting the platform and loading/unloading materials. 11. Lanyard Attach Points – JLG Industries, Inc. recommends personnel in the platform wear a full body harness with a lanyard attached to an authorized lanyard anchorage point.

  • Page 29: Walk-Around Inspection

    If the machine does not operate properly, turn off the machine immediately! Report the problem to the proper maintenance personnel. Do not operate the machine until it is declared safe for operation. Figure 3. MOL70 Market (Fall/Travel Figure 4. All Other Markets Restraint Only) WALK-AROUND INSPECTION ES1330L, ES1530L 31221553...
  • Page 30 9. Scissor Arms, Pivot Pins, Sliding Wear Pads, Lift Cylinder – See Inspection Note. 10. Platform/Rail Gate Assembly – Deck extension slides in and out and locks in place properly. Gate closes properly. All fold-down rail pins (if equipped) in place and secure. See Inspection Note. 31221553 ES1330L, ES1530L...

  • Page 31: Function Check

    Placards secure and legible, control lever and switches return to neutral when activated and released, and emergency stop switch function properly, required manuals in storage box. 12. Static Strap – See Inspection Note. FUNCTION CHECK Perform the Function Check as follows: ES1330L, ES1530L 31221553...
  • Page 32 MODEL DRIVE SPEED REDUCTION HEIGHT ES1330L 2.0 mph to 0.5 mph (3.2 kph to 0.8 kph) 37.4 in (0.95 m) ES1530L Note: For MOL70 specification machines, the machine will not drive when ele- vated above 1.9 m. 31221553 ES1330L, ES1530L...
  • Page 33 2.5° - indoor 37.4 in - 10 ft (0.95 m - 3.05 m) 1.5° - outdoor Note: ES1330L is not available in the MOL70 market. Note: ES1530L is rated for INDOOR USE only in MOL70 and AUS markets. ES1330L, ES1530L...
  • Page 34 This Page is intentionally left blank...

  • Page 35: Machine Controls, Indicators, And Operation

    Ground controls operate lift up and down. Except for performing inspections and function checks, ground controls are to be used only in an emergency to lower the platform to the ground should the operator in the platform be unable to do so. ES1330L, ES1530L 31221553...

  • Page 36: Operating Characteristics And Limitations

    3. All machine systems are functioning properly. 3.3.3 Stability This machine, as originally manufactured by JLG and operated within its rated capacity on a smooth, firm surface, within the limits of the maximum operating slope, provides a stable aerial platform for all platform positions.

  • Page 37: Machine Control Locations

    Always disconnect the charger AC supply before making or breaking the (POS/NEG) connections to the battery. Do not open or disassemble charger. The battery charger AC input plug is located at the rear of the machine inside the battery charger compartment beneath the ladder. ES1330L, ES1530L 31221553...
  • Page 38 MDI battery charger status panel are illuminated. Note: If the charger is left plugged in, the charger will automatically restart a com- plete charge cycle if the battery voltage drops below a minimum voltage, or if 30 days has elapsed. 31221553 ES1330L, ES1530L...
  • Page 39 High State of Charge: Bottom panel - green LED on; top panel - green LED flashing • Charge Complete: Bottom panel - green LED on; top panel - green LED on • Fault Indicator: Red LED on • External Error Condition Caution: Amber LED flashing) ES1330L, ES1530L 31221553...

  • Page 40: Ground Control Station

    Charging Voltage: “V” LED on • Charging Current: “A” LED on GROUND CONTROL STATION 1. Ground/Platform/OFF Key Selector Switch 4. Hourmeter 2. Platform Lift/Lower Switch 5. Overload Indicator 6. MDI Indicator (If Equipped) 3. Ground Emergency Stop Button 31221553 ES1330L, ES1530L...
  • Page 41 In addition, the switch can be used to turn off power to the function controls in the event of an emergency. WARNING Do not operate from ground control station with personnel in the platform except in an emergency. ES1330L, ES1530L 31221553...
  • Page 42 Platform Control Station. The switch should be set to the off position (3) when not using machine or parking the machine overnight. Hourmeter The machine is equipped with an hour meter to indicate the number of hours the machine has been operated. 31221553 ES1330L, ES1530L...
  • Page 43 Note: There will be a brief delay between switch activation and movement of the platform. When operating platform from the ground controls, activate the Lift/Lower switch to up position and hold to raise platform, or down position and hold to lower an elevated platform. Release to stop all movement. ES1330L, ES1530L 31221553...

  • Page 44: Platform Control Station

    18. USB Port (If Equipped) Note: Machines with this platform control box are rated for Indoor/Outdoor functionality, except the ES1530L machine in MOL70 and AUS markets. ES1530L machines in MOL70 and AUS markets are rated for INDOOR USE only. 31221553 ES1330L, ES1530L...
  • Page 45 Use low speed in close work areas with obstacles, other machinery or personnel to avoid. Note: Drive speed automatically reduces to low drive when the platform is raised above the stowed position, regardless of speed switch position. ES1330L, ES1530L 31221553...
  • Page 46 Note: In the MOL70 and AUS markets, ES1530L is rated for INDOOR USE only. If the Indoor/Outdoor operation mode switch is activated on machines with INDOOR ONLY functionality, the Indoor Operation Indicator will flash and the machine will remain in indoor mode. 31221553 ES1330L, ES1530L...
  • Page 47 Do not operate the machine in INDOOR MODE while in OUTDOOR USE. Follow all information on the platform capacity decal for the selected operating mode. Failure to comply could result in machine tip over, personal injury, or death. ES1330L, ES1530L 31221553...
  • Page 48 When released, the switch will return to the center-off position and the wheels will remain in the previously selected position. To return the wheels to the center position, the switch must be activated in the opposite direction until the wheels are centered. 31221553 ES1330L, ES1530L...
  • Page 49 If the code cannot be cleared by the operator, the machine will require service by a qualified JLG mechanic. Tilt Indicator Warning Light and Alarm A red warning light on the control panel illuminates and an audible alarm sounds when the chassis is at or beyond the tilt cutout settings.

  • Page 50: Platform Manual Descent

    Keep hands and arms out of the path of the scissor arms and platform while lowering. 2. Grasp the T-handle and slowly pull out to lower the scissor arms/platform. When the platform is lowered to the desired level, allow the T-handle to return to its closed position. 31221553 ES1330L, ES1530L...

  • Page 51: Grade And Side Slope

    The deck extension adds length to the front of the platform. WARNING For maximum capacity of the deck extension see Machine Specifications section or refer to the capacity placard on the platform billboard. ES1330L, ES1530L 31221553...

  • Page 52: Parking And Stowing Machine

    2. Grasp the top handrails (2) and pull back until it the locking mechanism pin locks into the rear platform extension lock (3). SC000124A 3.12 PARKING AND STOWING MACHINE 1. Drive the machine to a well-protected and well-ventilated area. 31221553 ES1330L, ES1530L...
  • Page 53 6. Chock at least two wheels when parking the machine for an extended period of time. To prevent unauthorized removal, the platform control station can be secured to its mount by replacing the lock pin located on its mounting tab with a keyed or combination lock. ES1330L, ES1530L 31221553...

  • Page 54: Platform Rails Fold-Down Procedure (If Equipped)

    WARNING After the rails have been folded down, use extreme caution when exiting and entering the platform. Enter and exit platform only at the gate area and ladder provided. 31221553 ES1330L, ES1530L...

  • Page 55: Machine Lifting And Tie Down

    The machine can also be lifted using a spreader bar and four equal length straps or chains capable of supporting the full gross weight of the machine. Lift only using the two lift lugs at the rear of the frame and the two tie-down/lift lugs at the front of the machine. ES1330L, ES1530L 31221553...
  • Page 56 When transporting the machine, fully lower the platform (stowed position) and secure the machine to the truck or trailer deck. There are two tie-down/lift up lugs at the front of the machine and two tie-down lugs at rear of the machine. 31221553 ES1330L, ES1530L...

  • Page 57: Towing

    If the machine must be towed, the machine is equipped with a push button to electrically release the brakes. Look for the yellow button in the hydraulic compartment. Note: Some components removed for clarity. 1. Chock wheels or secure machine with tow vehicle. ES1330L, ES1530L 31221553...

  • Page 58: Beacons

    Maximum towing speed is 2.2 mph (3.5 kph) for no further than 60 feet (18 m). Maximum towing grade 25%. 3.16 BEACONS A. Beacon B. LED Motion / Amber Beacon (CS550) Note: Image for reference only. Beacon design may vary based on beacon type, ma- chine model and installation location. 31221553 ES1330L, ES1530L...

  • Page 59: Clearsky Smart Fleet

    Refer to the Access Control and Beacons sections of this manual for more information. Visit the ClearSky section of the JLG website for more resources and information about accessing web portal or mobile app data. 3.18 ACCESS CONTROL - CLEARSKY SMART FLEET™ (IF...

  • Page 60: Safety Decal Locations

    Note: Restricted functionality may occur if the CS550 (ClearSky® LED Motion / Amber Beacon) is damaged or removed. A protective cage is available through JLG. Machines equipped with ClearSky Smart Fleet Access Control are also equipped with the CS550.

  • Page 61: Safety Decal Legend

    Machine Controls, Indicators, and Operation 1. ANSI 2. China, Korea (Dual Rails) 3. MOL70, AUS 4. CE/UKCA 5. China, Korea (Fixed Rails) 6. CSA 1. ANSI, CE/UKCA, MOL70, AUS 2. China 3. Korea, CSA 3.20 SAFETY DECAL LEGEND ES1330L, ES1530L 31221553...
  • Page 62 Machine Controls, Indicators, and Operation 31221553 ES1330L, ES1530L...
  • Page 63 Machine Controls, Indicators, and Operation ES1330L, ES1530L 31221553...
  • Page 64 Machine Controls, Indicators, and Operation 31221553 ES1330L, ES1530L...

  • Page 65: Emergency Procedures

    INCIDENT NOTIFICATION JLG Industries, Inc. must be notified immediately of any incident involving a JLG product. Even if no injury or property damage is evident, JLG must be contacted by telephone and provided with all necessary details. • USA: 877-JLG-SAFE (554-7233) •...

  • Page 66: Platform Manual Descent

    The manual descent control T-handle is located on the left rear of the machine, just below the platform ladder. Look for the instruction decal located beside the release handle. The lowering procedure is as follows: 31221553 ES1330L, ES1530L...

  • Page 67: Clearsky Smart Fleet™ - Locked Out State

    If the CS550 (ClearSky® LED Motion / Amber Beacon) is removed from a machine or disconnected from the control system through damage, the machine may also be placed into a Locked Out state. NOTICE Contact the ClearSky Smart Fleet™ account owner if the machine is in a Locked Out state. ES1330L, ES1530L 31221553...
  • Page 68 This Page is intentionally left blank...

  • Page 69: Accessories

    ✔ ✔ Latch SkySense® ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ Table 8. ES1330L, ES1530L - Options/Accessories Relationship Table COMPATIBLE WITH ACCESSORY INCOMPATIBLE WITH (Note 1) Anti-Vandalism Package None Footswitch None DC/AC Power Inverter None Magnetic Gate Latch None...
  • Page 70 Accessories Table 8. ES1330L, ES1530L - Options/Accessories Relationship Table (continued) COMPATIBLE WITH ACCESSORY INCOMPATIBLE WITH (Note 1) None SkySense® Note 1: Any accessory not listed under “COMPATIBLE WITH” is assumed to be incompatible. 31221553 ES1330L, ES1530L...

  • Page 71: Anti-Vandalism Package

    Ground Control Stations that prevent unauthorized use of the machine. Locks are not provided with this kit. This accessory is available for both control stations. Figure 7. Platform Control Station 1. Lock Position (Covers Closed) 2. Covers Open ES1330L, ES1530L 31221553...

  • Page 72: Dc/Ac Power Inverter

    DC/AC POWER INVERTER The DC to AC Power Inverter converts DC voltage from the onboard system batteries to AC voltage for use at the platform AC output receptacle. 1. Inverter Module Note: Some components removed for clarity. 31221553 ES1330L, ES1530L...
  • Page 73 1. Set the inverter ON/OFF switch to the ON position at the ground control station. 2. Only plug in tools or appliances rated within the maximum output wattage at the platform AC receptacle mounted on the platform. ES1330L, ES1530L 31221553...

  • Page 74: Footswitch

    To operate a function, engage the footswitch and joystick trigger in any sequence before operating a function. MAGNETIC GATE LATCH The Magnetic Gate Latch ensures the platform gate latches securely when closed. 5.5.1 Operation Grasp handle and swing gate open. 31221553 ES1330L, ES1530L...

  • Page 75: Skysense

    It is the operator’s responsibility to be aware of their surroundings at all times. Note: SkySense is not active when operating the machine from the ground controls. ES1330L, ES1530L 31221553...
  • Page 76 The stop zone always activates at the same distance from the object regardless of the joystick’s position. SkySense is active during the following functions: • Lift Up • Drive Forward • Drive Reverse 31221553 ES1330L, ES1530L...
  • Page 77 Additionally, when the machine is in the stop zone, the platform control panel audible alarm will sound, indicating activation of the SoftTouch system. Reset the system by releasing the trigger switch. Audible SkySense alarms can be muted, although LEDs will continue to light. ES1330L, ES1530L 31221553...
  • Page 78 5.6.8 SkySense Coverage Areas Level One Note: Sensor Cones shown are approximations for reference only. 31221553 ES1330L, ES1530L...

  • Page 79: Machine Specifications And Operator Maintenance

    Gross Vehicle Weight 1,975 lb (896 kg) 1,935 lb (878 kg) All Other Markets 11 - 17 sec 13 - 19 sec No Load Lift Up Time 14 - 20 sec 16 - 22 sec Rated Load ES1330L, ES1530L 31221553...
  • Page 80 254 lb (115 kg) Maximum Operating Wind Speed Indoor 0 mph (0 m/s) Outdoor 28 mph (12.5 m/s) Maximum Horizontal Side Force (Indoor) — MOL70 40 lb (180 N) 90 lb (400 N) All Other Markets 45 lb (200 N) 31221553 ES1330L, ES1530L...
  • Page 81 Note: INDOOR USE is use of a MEWP in areas shielded from wind so that there is no wind. OUTDOOR USE is use of a MEWP in an environment that can be exposed to wind. Note: In the MOL70 and AUS markets, ES1530L is rated for INDOOR USE only. ES1330L, ES1530L 31221553...
  • Page 82 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...

  • Page 83: Lubrication

    50° F to 210° F (+10° C to +99° C) 20W-20 Note: Aside from JLG recommendations, it is not advisable to mix oils of different brands or types, as they may not contain the same required additives or be of comparable viscosities.
  • Page 84 Machine Specifications and Operator Maintenance 6.4.3 Lubrication Capacities COMPONENT ES1330L, ES1530L Hydraulic Reservoir (at Full mark) 1.32 gal (5 L) Hydraulic System (Including Reservoir) 1.45 gal (5.5 L) 6.4.4 Hydraulic Oil Specifications SPECIFICATION MOBIL DTE10 EXCEL 15 MOBIL EAL ENVIRONSYN H 32 ISO Viscosity Grade –...

  • Page 85: Hydraulic Oil Check Procedure

    4. Remove filler cap and add proper grade of oil. Fill until oil level is close to the maximum level. Do not overfill. Note: Take precautions so impurities (dirt, water, etc.) cannot enter the hydraulic sys- tem while filter/filter cap is removed. ES1330L, ES1530L 31221553...

  • Page 86: Scissor Arm - Safety Prop

    To engage the safety prop: 1. From the Ground Control Station, raise the platform far enough to allow the safety prop to be engaged. 2. Rotate the prop assembly clockwise until it hangs vertically on the side of the scissor arms. 31221553 ES1330L, ES1530L...

  • Page 87: Battery Maintenance And Charging

    BATTERY MAINTENANCE AND CHARGING WARNING To avoid injury from an explosion, do not smoke or allow sparks or a flame near battery during servicing. Always wear eye and hand protection when servicing batteries. ES1330L, ES1530L 31221553...
  • Page 88 Note: To avoid electrolyte overflow, add distilled water to batteries after charging. When adding water to the battery, fill only to level indicated or 3/8'' above separators. 1. Open battery compartment cover to allow access to battery terminals and vent caps. 31221553 ES1330L, ES1530L...

  • Page 89: Tires And Wheels

    JLG recommends that any replacement tire be the same size and brand as originally installed on the machine or offered by JLG as an approved replacement. Please refer to the JLG Parts Manual for the part number of the approved tires for a particular machine model.
  • Page 90 58 Nm (43 ft.lb.). 5. Wheel mounting bolts should be torqued after the first 50 hours of operation and after each wheel removal. Check torque every 3 months or 150 hours of operation. 31221553 ES1330L, ES1530L...

  • Page 91: Diagnostic Trouble Codes (Dtc)

    The more detailed three to five digit code numbers in the DTC column of the following tables are only indicated on a JLG handheld diagnostic analyzer connected to the machine, or on the Ground Control Station - MDI indicator, if equipped.
  • Page 92 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...
  • Page 93 Machine Specifications and Operator Maintenance ES1330L, ES1530L 31221553...
  • Page 94 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...
  • Page 95 Machine Specifications and Operator Maintenance ES1330L, ES1530L 31221553...
  • Page 96 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...
  • Page 97 Machine Specifications and Operator Maintenance ES1330L, ES1530L 31221553...
  • Page 98 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...
  • Page 99 Machine Specifications and Operator Maintenance ES1330L, ES1530L 31221553...
  • Page 100 Machine Specifications and Operator Maintenance 31221553 ES1330L, ES1530L...

  • Page 101: Radio Frequency (Rf) Information

    Consequently, a person within 20 cm (8 inches) of a CS550 that is connected to machine battery power could expose that person to RF energy in excess of what has been established by the ISED RF exposure guidelines. ES1330L, ES1530L 31221553...

  • Page 102: Supplemental Information Only Applicable To Ce/Ukca Machines

    The vibration total value to which the hand-arm system is subjected does not exceed 2,5 m/s . The highest root mean square value of weighted acceleration to which the whole body is subjected does not exceed 0,5 m/s 31221553 ES1330L, ES1530L...

  • Page 103: Ec Declaration Of Conformity

    EN 61000-6-2:2005 • EN 60204-1:2018 • EN 280:2013+ A1:2015 • EN ISO 12100:2010 JLG Industries, Inc. hereby declares that the above mentioned machine conforms with the requirements of: • 2006/42/EC — Machinery Directive • 2014/30/EU — EMC Directive • 2014/53/EU — RED Directive (If fitted with optional equipment) Note: This declaration conforms with the requirements of annex II-A of the council di- rective 2006/42/EC.

  • Page 104: Ukca Declaration Of Conformity

    EN 60204-1:2018 • EN 280:2013+ A1:2015 • EN ISO 12100:2010 JLG Industries, Inc. hereby declares that the above mentioned machine conforms with the requirements of: • 2008 No. 1597 - Supply of Machinery (Safety) Regulations 2008 • 2016 No. 1091 - Electromagnetic Compatibility Regulations 20165 •...
  • Page 105 Inspection, Maintenance and Repair Log Serial Number ___________________________________ Date Comments...
  • Page 106 Inspection, Maintenance and Repair Log...
  • Page 108 Corporate Office JLG Industries, Inc. 1 JLG Drive McConnellsburg, PA 17233-9533 USA (717) 485-5161 (Corporate) (877) 554-5438 (Customer Support) (717) 485-6417 Visit our website for JLG Worldwide Locations. www.jlg.com...
