Agent336-FL Series
Robust Fanless Embedded System
Hardware User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Agent336-FL Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK Agent336-FL Series

Summary of Contents for AXIOMTEK Agent336-FL Series

  • Page 1 Agent336-FL Series Robust Fanless Embedded System Hardware User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. Be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and place all electronic components in any static-shielded devices. Most electronic components are sensitive to static electrical charge.

  • Page 4: Classification

    Classification Degree of production against electric shock: not classified Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitros oxide. Mode of operation: Continuous Type of protection against electric shock: Class I equipment General Cleaning Tips You may need the following precautions before you begin to clean the computer .

  • Page 5: Cleaning Tools

    Cleaning Tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals.

  • Page 6: Scrap Computer Recycling

    Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 7: Table Of Contents

    Table of Contents Safety Precautions ..................iii Classification ....................iv General Cleaning Tips ................. iv Cleaning Tools ....................v Scrap Computer Recycling ................. vi CHAPTER 1 INTRODUCTION ............. 1 General Description ..............1 System Specifications ............... 2 1.2.1 CPU ........................2 1.2.2 System Memory ....................
  • Page 8 This page is intentionally left blank. viii...

  • Page 9: Chapter 1 Introduction

    Agent336-FL Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the Agent336-FL. The Chapter 1 includes the following sections:  General Description  System Specification  Dimensions  I/O Outlets  Packing List General Description...

  • Page 10: System Specifications

    Agent336-FL Series User’s Manual  Wall mounting (optional) System Specifications 1.2.1  Low power RISC-based module (iMX-8m Qual), ARM Cortex-A53 RISC-based 1.3GHz Processor 1.2.2 System Memory  1 x LPDDR4 3GB SDRAM onboard 1.2.3 Console Port  For user setting with debug 1.2.4...

  • Page 11: Storage

    Agent336-FL Series User’s Manual 1.2.5 Storage  1 x eMMC 8GB onboard (for boot disk)  1 x MicroSD slot (easy-to- access, for store only) 1.2.6 WatchDog Timer (WDT)  1 WatchDog Timer  One step is 250~280ms,255 levels Introduction...

  • Page 12: Com

    Agent336-FL Series User’s Manual 1.2.7  DB9 Pin define  RS232/RS422/RS485 (COM1 ~ 2)  COM 1~2 with TX/RX/RTS/CTS signals  RS-232/422/485 Interface select by software COM1/COM2 RS-232 RS-422 RS-485 TX-(12PIN) Data-(12PIN) TX+(11PIN) Data+(11PIN) RX+(13PIN) RX-(14PIN) Ground Ground Ground 1.2.8 Power ...

  • Page 13: Digital I/O Connector And Pin Definition

    Agent336-FL Series User’s Manual 1.2.9 Digital I/O Connector and Pin Definition  2 DI/ 2DO with optical isolation protection 2KV  DI: W et/Dry  DO: W et  DIO Design Specification Digital Input Input Channels 2,source type Input Voltage...
  • Page 14 Agent336-FL Series User’s Manual  DIO operation schematic diagram Input Circut Output Circut Introduction...
  • Page 15 Agent336-FL Series User’s Manual  Digital Input Wiring Dry Contact Wet Contact If you are using wet contacts, you must connect COM to power. Note  Digital Output Wiring Introduction...

  • Page 16: System Led

    Agent336-FL Series User’s Manual 1.2.10 System LED LED Name Description Color Note Indicate the DC1 input status. When the DC input is PWR1 Green acceptable, the LED will ON. LINK1 Green/ 1 LED (for transmission signal strength, more than 50% is green, less than 50% is Red) LINK2 1.2.11...

  • Page 17: Wireless (3G/Gprs Or Wifi)

    Agent336-FL Series User’s Manual 1.2.12 Wireless (3G/GPRS or Wifi)  1 x Mini card socket 1 (supports USB&PCIE interface) with 1 x SIM Card Socket 1 by inside  1 x Mini card socket 2 (supports USB&PCIE interface)  Support WiFi or 3G/GPRS2...
  • Page 18 Agent336-FL Series User’s Manual PCI-Express Mini Card Connector The PCI Express Mini Card connectors are supported 1x PCI Express lane and 1x USB 2.0 lanes. A PCI Express Mini Card can be applied either PCI Express or USB 2.0. It’s very helpful that we designed USB 2.0 and PCI Express lane in the same slot once it was...

  • Page 19: Operation Temperature

    Agent336-FL Series User’s Manual The SIM Card slot is an ISO 7816 standard 6 -pin connector for PCI Express Mini Card. Signal SIM_PWR LOCK SIM_RESET SIM_CLK OPEN SIM_VPP SIM_DATA 1.2.13 Operation Temperature  -40℃ ~ +70℃ (-40 ºF ~ +158ºF) 1.2.14...

  • Page 20: Dimensions

    Agent336-FL Series User’s Manual Dimensions The following diagrams show you dimensions and outlines of the Agent336-FL Introduction...
  • Page 21 Agent336-FL Series User’s Manual Introduction...

  • Page 22: I/O Outlets

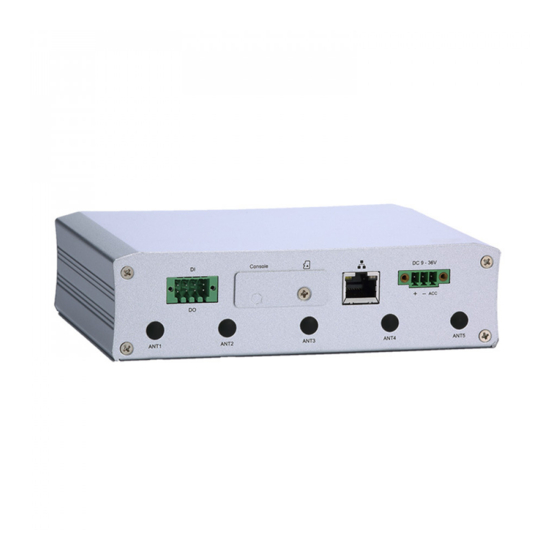

    Agent336-FL Series User’s Manual I/O Outlets The following figures show you I/O outlets on front view and bottom view of the Agent336-FL.  Front View  Back View Introduction...

  • Page 23: Packing List

     Wall Mount Kit x1 Please download the latest BSP or the latest Web_AP for Agent336 from Axiomtek’s website as below list if you have the demand. Note http://www.axiomtek.com/products/ViewProduct.asp?view= 8947 Please contact your local vendors if any damaged or missing items.
  • Page 24 Agent336-FL Series User’s Manual This page is intentionally left blank. Introduction...
