2.1 M.2 SSD Installation
Step 1
Turn off the system and unplug the power cord.
Step 2

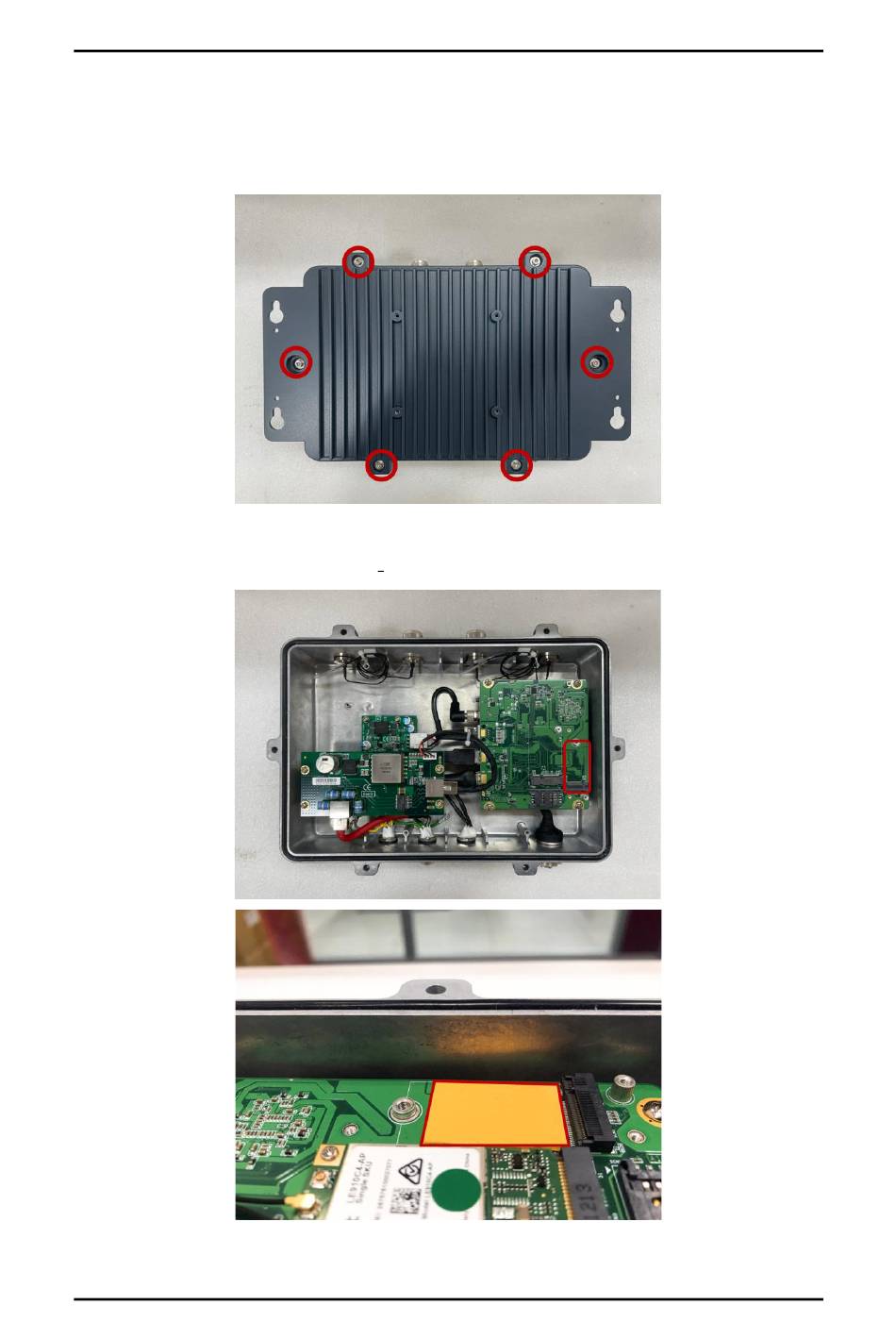

Turn the system upside down to locate and loosen the six screws at the bottom,
as marked by the red circles in the figure below. Then remove the bottom cover.
Step 3
After removing the bottom cover, locate the M.2 2242 Key B slot on the board,
then take two thermal pads out of the package box, and apply one thermal pad
on the M.2 2242 Key B slot.
