- Page 1 AX92320 4-port Gigabit 802.3at PCI Express PoE Card User’s Manual...
- Page 2 Disclaimers This manual has been carefully checked and believed to contain accurate information. Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or rights of any third party, or any liability arising from such use. Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document.
- Page 3 When handling boards and components, wear a grounding wrist strap available from most electronic component stores. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Windows is a trademark of Microsoft Corporation. IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation.
-
Page 4: Table Of Contents
Table of Contents Disclaimers ..................... ii ESD Precautions ................... iii Section 1 Introduction ..........1 General Description ................1 Features ....................1 Specifications ..................2 Dimensions ..................3 Section 2 Connectors ..........5 Connectors ..................5 2.1.1 PD Power Indicator (CN1) ................5 2.1.2 LAN1 ~ LAN4 Connector (CN 3) .............. -
Page 5: Introduction

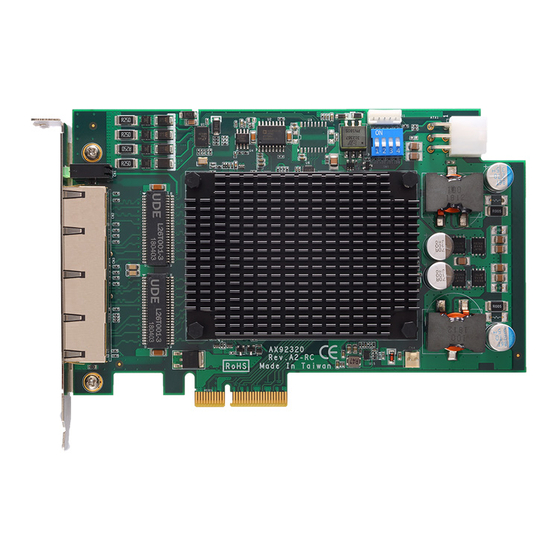

Dimensions General Description The AX92320 PoE (Power over Ethernet) card supports four independent Gigabit Ethernet ports, providing up to 30W at 54 VDC of power per port. Its wide operating temperature range supports integration for vision inspection applications in harsh environments. In addition, the AX92320 features have been designed to reduce cost, simplify installation and facilitate maintenance for your machine vision solutions. -
Page 6: Specifications
AX92320 4-port Gigabit 802.3at PCI Express PoE Card Specifications Lan Chip Intel® Ethernet Controller I210-AT All LAN support 10/100/1000Mbps PCIe Switch PI792X2G608 Golden finger One for standard PCIex4 interface PSE controller ... -
Page 7: Dimensions
AX92320 4-port Gigabit 802.3at PCI Express PoE Card Dimensions Component Side Solder Side Introduction... - Page 8 AX92320 4-port Gigabit 802.3at PCI Express PoE Card This page is intentionally left blank. Introduction...
-
Page 9: Section 2 Connectors
Connectors connect the board with other parts of the system. Loose or improper connection might cause malfunctions. Make sure all connectors are properly and firmly connected. The following table lists the function of each connector on the AX92320. Connectors Label 2.1.1... -
Page 10: Lan1 ~ Lan4 Connector (Cn 3)
AX92320 4-port Gigabit 802.3at PCI Express PoE Card 2.1.2 LAN1 ~ LAN4 Connector (CN 3) Description LED1 Active LED (Amber) LED2 Link LED (10/100-Green; 1000-Amber) 2.1.3 Board ID (SW1) Default board ID setting is 0 (0x000) Board ID Note: On: 1, Off: 0... -
Page 11: 12/24V Power Input (For Ieee 802.3At, Atx1)
AX92320 4-port Gigabit 802.3at PCI Express PoE Card 2.1.4 12/24V Power Input (For IEEE 802.3at, ATX1) Signal +12V / +24V +12V / +24V +12V / +24V Ground (GND) Ground (GND) Ground (GND) Connectors... - Page 12 AX92320 4-port Gigabit 802.3at PCI Express PoE Card This page is intentionally left blank. Connectors...
-
Page 13: Ax Poe Manager Software
AX92320 4-port Gigabit 802.3at PCI Express PoE Card Chapter 3 AX PoE Manager Software Management software AX PoE Manager is a highly integrated software management system that provides an easy-to-use application programming interface. Software Structure AX PoE Manager is one of intelligent software to manage PoE (Power over Ethernet) device, ranging from physical layer connectivity, communication layer protocol, middleware API, high level software for management. -
Page 14: Ax Poe Manager
AX92320 4-port Gigabit 802.3at PCI Express PoE Card AX PoE Manager The PoE Manager belongs to PoE (Power over Ethernet) monitor and manage software. The PoE manager major task is to routinely monitor each PoE port’s power consumption. AX PoE Manager Software... -
Page 15: Menu Bar
AX92320 4-port Gigabit 802.3at PCI Express PoE Card Menu Bar On the top of main screen, you can see menu bar. Select any items in this bar to go to the sub menus. AX PoE Manager Software... -
Page 16: File
AX92320 4-port Gigabit 802.3at PCI Express PoE Card 3.3.1 File Polling rate Set the polling rate to monitor PoE power consumption. 5 sec 10sec 30 sec 60 sec Exit Close the PoE manager AX PoE Manager Software... -
Page 17: Menu List
AX92320 4-port Gigabit 802.3at PCI Express PoE Card Menu List The menu list is located on the left frame of the screen, contains all of monitoring and controlling functions. 3.4.1 Information The Information menu displays the following items information: ... -
Page 18: Control
AX92320 4-port Gigabit 802.3at PCI Express PoE Card 3.4.2 Control The Control menu allows user to set configuration of the following items: Chip Chip Control each port and chip status and reset AX PoE Manager Software... -
Page 19: Appendix A Board Id Mapping
AX92320 4-port Gigabit 802.3at PCI Express PoE Card APPENDIX A Board ID Mapping This section will guide you to solve the common issues when running our application. Board ID Collision Cause: The board ID of the PoE card is mapping to physical SMBus address. If the duplicate SMBus addresses are in the same bus, this will cause communication collision. - Page 20 AX92320 4-port Gigabit 802.3at PCI Express PoE Card This page is intentionally left blank. Board ID Mapping...
