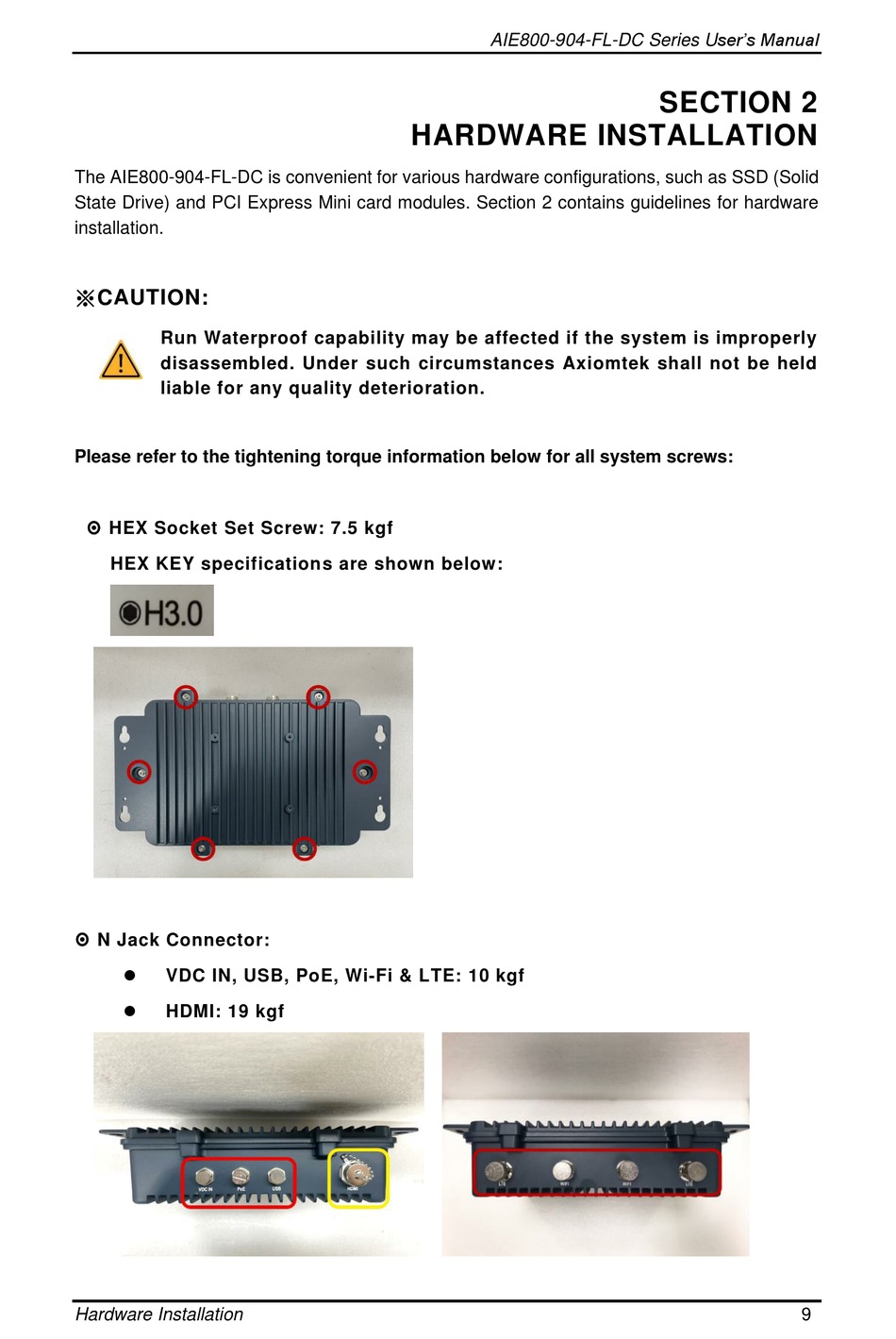

The AIE800-904-FL-DC is convenient for various hardware configurations, such as SSD (Solid
State Drive) and PCI Express Mini card modules. Section 2 contains guidelines for hardware
installation.
※CAUTION:
Run Waterproof capability may be affected if the system is improperly
disassembled. Under such circumstances Axiomtek shall not be held
liable for any quality deterioration.
Please refer to the tightening torque information below for all system screws:
HEX Socket Set Screw: 7.5 kgf
HEX KEY specifications are shown below:
N Jack Connector:
⚫
VDC IN, USB, PoE, Wi-Fi & LTE: 10 kgf
⚫
HDMI: 19 kgf
Hardware Installation
AIE800-904-FL-DC Series User's Manual
HARDWARE INSTALLATION
SECTION 2
9
