Step 4

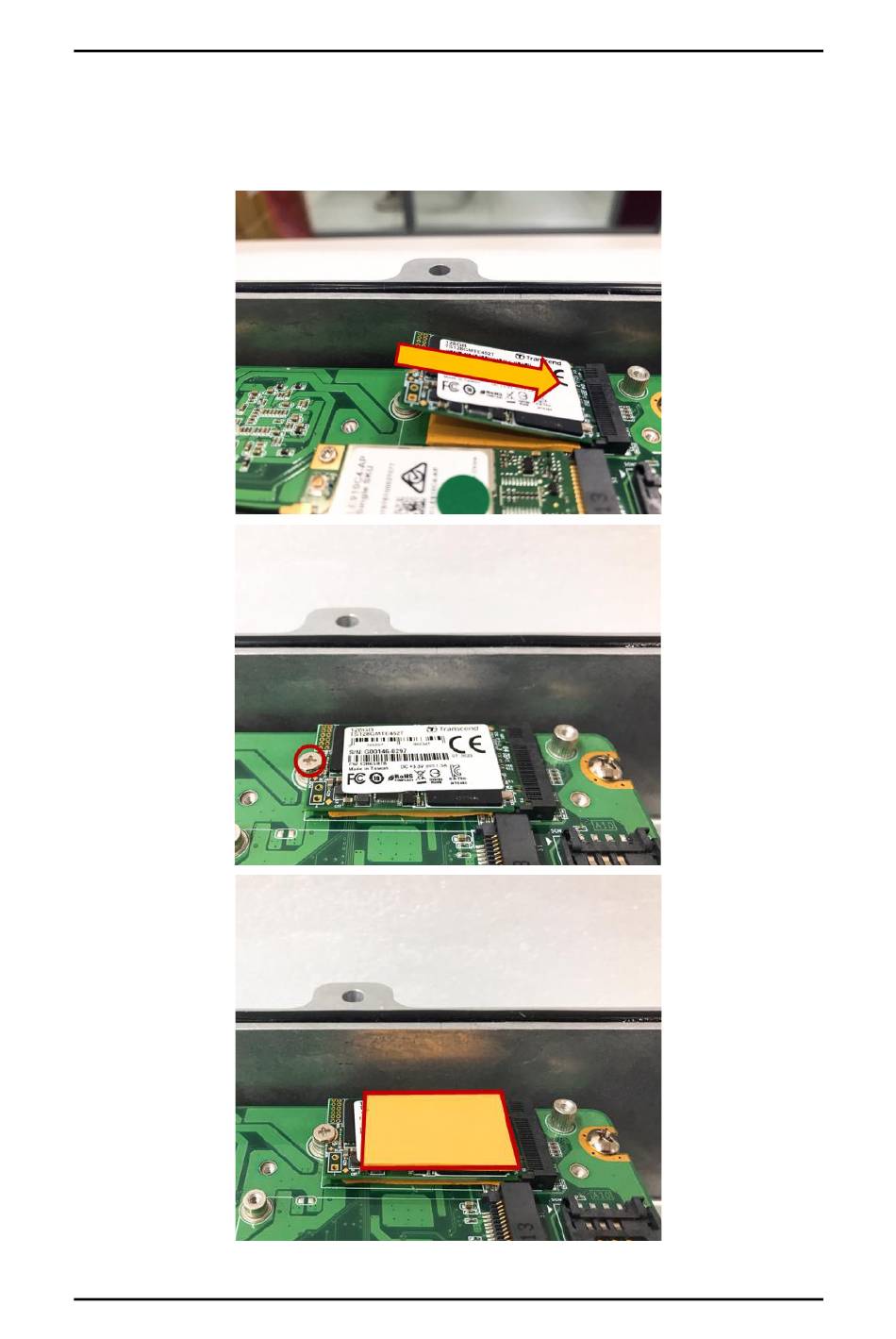

While holding the M.2 2242 Key B SSD at a 30-degree angle up from the
horizontal, slowly insert the golden finger into the M.2 2242 Key B slot until it is
fully inserted in place. And secure the M.2 2242 Key B SSD to the carrier by
tightening up one M3*3L screw to the marked position. Then apply another
thermal pad on the M.2 2242 Key B SSD.
Hardware Installation
AIE800-904-FL-DC Series User's Manual
11
