Section 3: Operation

SECTION 3: OPERATION
WARNING: Tube breakage may result in fl uid being sprayed from the pump. Use appropriate
!
measures to protect operator and equipment.
CAUTION: Keep fi ngers away from the rotor while the pump is in operation. Stop the pump
before loading or unloading tubing.
CAUTION: Hot Surface. Do not touch.
CAUTION: To avoid electrical shock, the power cord protective grounding conductor must be
connected to ground. Not for operation in wet locations as defi ned by EN61010-1.

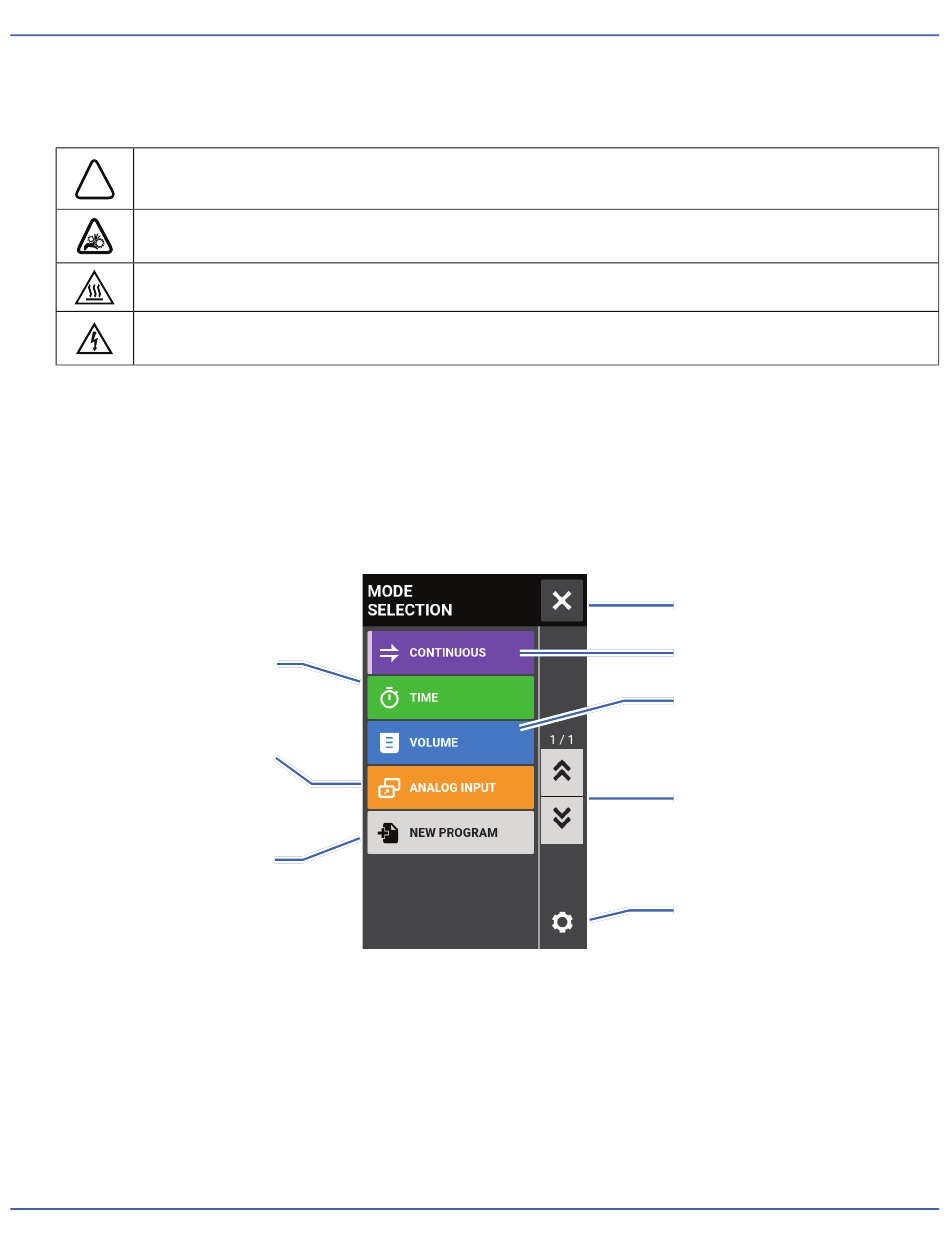

MODE SELECTION SCREEN

Th e Mode Selection Screen allows access to the drive's four basic operation modes (CONTINUOUS, TIME,
VOLUME, and ANALOG INPUT) as well as the New Program Screen and user defi ned programs. Th e Mode
Selection Screen can be accessed from any of the mode screens by tapping the MODE NAME BANNER.
Analog Input Mode
Add New Program
Tap the desired mode or program to access individual mode or program screens.
3-16 Masterflex REGLO Digital Pump Drive with Advanced Connectivity
Time Mode
Return to Previous Screen
Continuous Mode
Volume Mode
Page Scroll
Settings
