Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/chargers and
sub-assemblies, wire harnesses and finger duct.
Altronix
Model Number
T3MB777K1
13.5
T3MB777K1D
• Two (2) tamper switches (Altronix Model TS112 or equivalent).
• Cam lock.
• Battery leads.
• 16 Gauge enclosure with ample knockouts for convenient access.
• Enclosure Dimensions (H x W x D): 36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm).
Enclosure Mounting:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the wall with the
screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure. Mark the position of the lower three holes.
Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes
over the three upper screws. Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2" from
the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device. To activate alarm signal open the door of the enclosure.
Installing and Connecting Lenel/Mercury Modules:
4. Altronix power supplies and sub-assemblies are factory installed and wired.
Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NB and corresponding
Sub-Assembly Installation Guides for PDS8(CB) and ACMS8(CB) for further installation instructions.
5. Position Lenel/Mercury access controller modules over corresponding spacers and depress onto
factory installed snap on spacers on the brackets (Fig. 2, pg. 3). When mounting Lenel/Mercury
modules, start with the bottom to facilitate easy mounting.
6. Connect wire harnesses to Lenel/Mercury access controller modules (Fig. 2, pg. 3).
7. Mount backplane to enclosure with hardware.
- 2 -

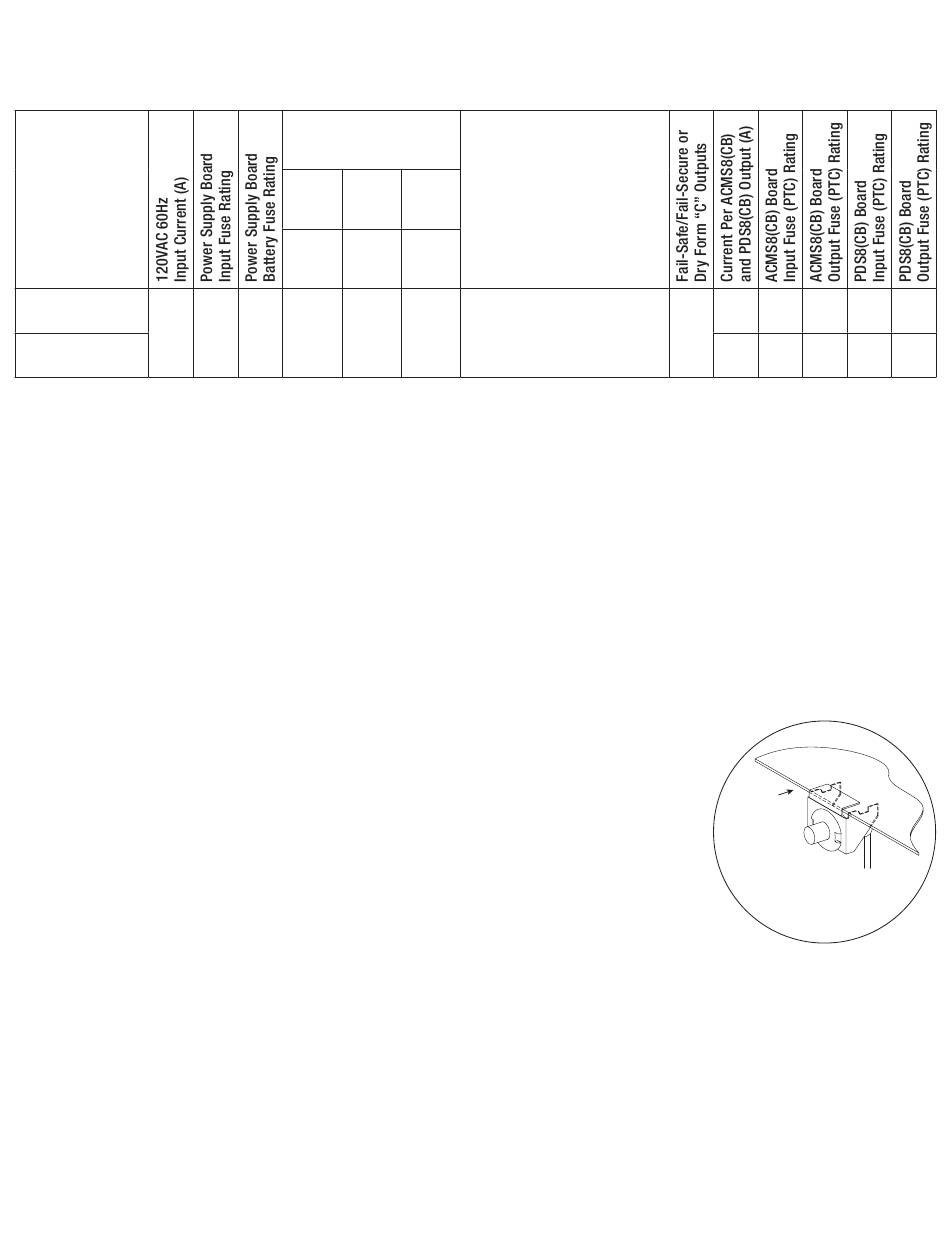

Configuration Chart:

Nominal DC Output
Voltage Range
Power Power
Supply Supply
1 2
Output Output
Range Range
(VDC) (VDC)
6.3A/ 15A/ 20.17- 20.17-
250V 32V 26.4 26.4

Hardware and Accessories:

Installation Instructions:

Overview:

Power
Supply
Maximum Supply Current
3
for Main and Aux. Outputs
Output on Power Supply board and
Range ACMS8(CB) Access Power
(VDC) Controller's outputs
20.17-
24VDC @ 9.4A
26.4

Mechanical:

15A/ 3A/ 10A/
2.5
32V 32V 32V
24
2.0 9A 2.5A 9A
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
T3MB777K1 Kit Series Installation Guide
3A/
32V
2.5A
Fig. 1
