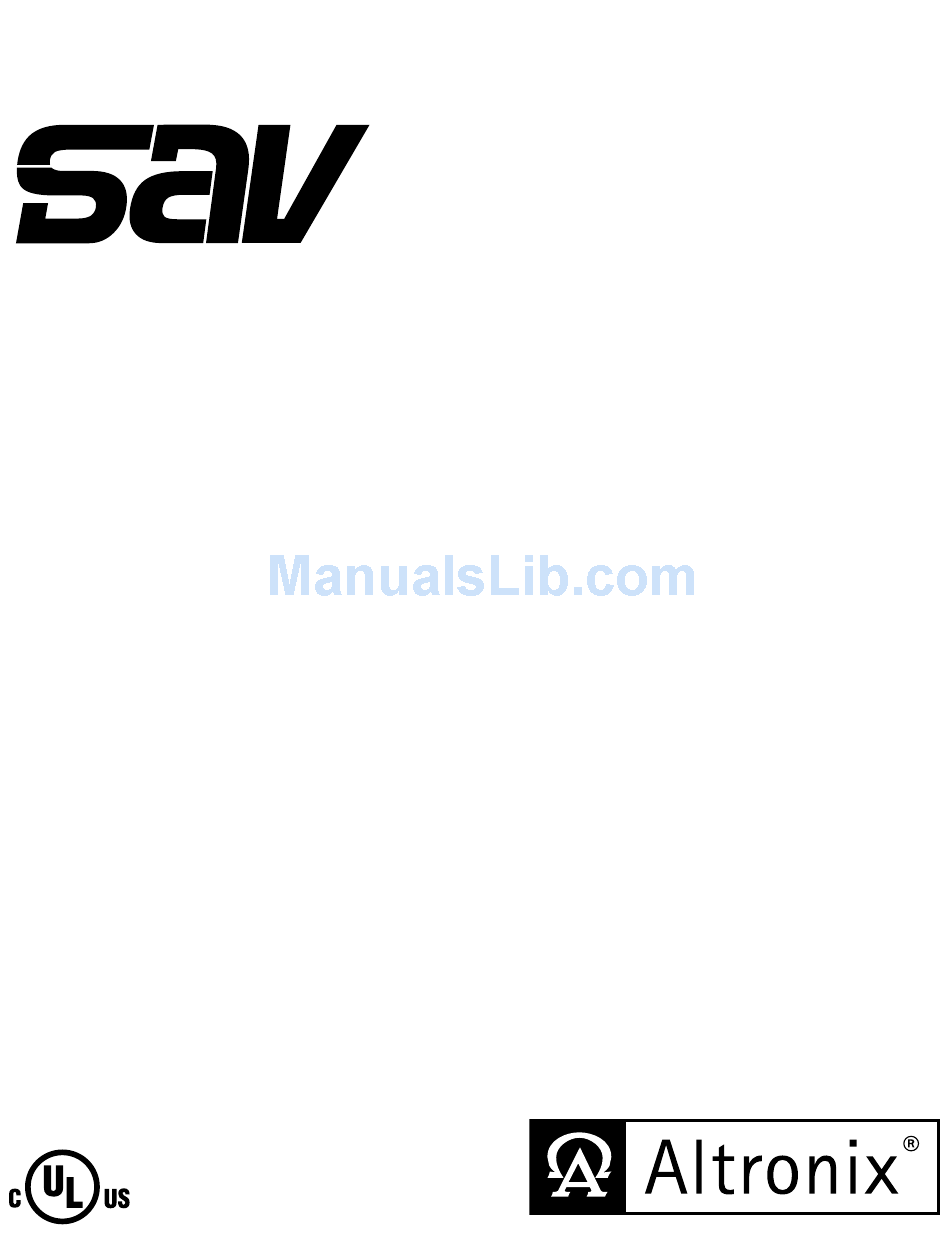

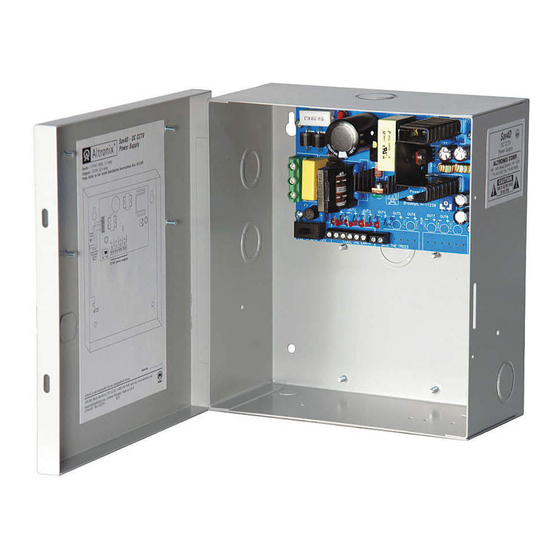

DC CCTV Power Supplies
Installation Guide
Models Include:
Sav4D
- 12VDC @ 5 amp
- Four (4) Class 2 Rated PTC Protected Power-Limited Outputs.
Sav9D
- 12VDC @ 5 amp
- Nine (9) Class 2 Rated PTC Protected Power-Limited Outputs.
Sav18D
- 12VDC @ 5 amp
- Eighteen (18) Class 2 Rated PTC Protected Power-Limited Outputs.
Sav182D
- 12VDC @ 11 amp
- Eighteen (18) Class 2 Rated PTC Protected Power-Limited Outputs.
Sav36D
- 12VDC @ 11 amp
- Thirty-Six (36) Class 2 Rated PTC Protected Power-Limited Outputs
More than just power.™
Rev. 070709
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix Sav4D
Summary of Contents for Altronix Sav4D
-
Page 1: Installation Guide
™ DC CCTV Power Supplies Installation Guide Models Include: Sav4D - 12VDC @ 5 amp - Four (4) Class 2 Rated PTC Protected Power-Limited Outputs. Sav9D - 12VDC @ 5 amp - Nine (9) Class 2 Rated PTC Protected Power-Limited Outputs. -
Page 2: Specifications
Overview: Altronix Sav Power Supplies provide 12VDC distributed via four (4), nine (9), eighteen (18), thirty-six (36) Class 2 Rated PTC protected power-limited outputs for powering Surveillance Cameras and other 12VDC devices. Sav Reference Chart: Sav4D 5 amp 12VDC 2.5 amp* 1.5 amp 0.75 amp... -
Page 3: Maintenance
Note: Voltage will be the same for all outputs. 4. Connect cameras to be powered to the terminals marked [OUT1 through OUT4 (Sav4D)] (Fig. 2, pg. 4), [OUT1 through OUT9 (Sav9D)] (Fig. 3, pg. 5), [OUT1 through OUT18 (Sav18D)] (Fig. 4, pg. 6), [OUT1 through OUT9 on each power supply board (Sav182D)] (Fig. - Page 4 Sav4D Fig. 2 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 2a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 5 Sav9D Fig. 3 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 3a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 6 Sav18D Fig. 4 115VAC, 60Hz/ 230VAC, 50Hz power mains non power- limited Class 1 Green Lead Fig. 4a Voltage Adjustment 12VDC power outputs (For wiring utilize knockouts on the right hand side of enclosure) Class 2 not wet, Class 3 wet, wiring to be used.
- Page 7 Sav182D Fig. 5 115VAC, 60Hz / 230VAC, 50Hz power mains non power-limited Class 1 Green Lead Black Lead White Lead 12VDC power outputs 12VDC power outputs (For wiring utilize (For wiring utilize knockouts on knockouts on the the right hand side of enclosure) left hand side of enclosure) Class 2 not wet, Class 3 wet,...
- Page 8 Sav36D Fig. 6 115VAC, 60Hz / 230VAC, 50Hz power mains non power-limited Class 1 Green Lead Black Lead White Lead 12VDC power outputs 12VDC power outputs (For wiring utilize (For wiring utilize knockouts on knockouts on the the right hand side of enclosure) left hand side of enclosure) Class 2 not wet, Class 3 wet,...
- Page 9 Installation Instructions for 3-wire Line Cord: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. The line cord option should be used when the equipment needs to be removed for maintenance or servicing. Do not attach the 3-wire line cord to the building surface.
- Page 10 Wiring AC line cord for models SAV4D, SAV9D and SAV18D: 1. Connect black lead to terminal marked [L]. Connect green lead to terminal marked [G]. Connect white lead to terminal marked [N] (Fig. 11). Fig. 11 White Lead Green Lead...
- Page 11 Enclosure Dimensions for Sav4D, Sav9D and Sav18D: 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.15mm) 3.625” (184.15mm) 1.25” (31.75mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm) 2” (50.8mm) 2”...
- Page 12 1.0” (25mm) (267mm) (25mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Made in U.S.A. MEMBER IISAV4D/SAV9D/SAV18D/SAV182D/SAV36D...
