AL600ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL600ULX
-
Single Output
• AL600ULPD4
-
Four (4) Fused Outputs
• AL600ULPD8
-
Eight (8) Fused Outputs
• AL600ULXPD16
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL600ULPD8R
• AL600ULPD4CB
-
Four (4) PTC Outputs
• AL600ULPD8CB
-
Eight (8) PTC Outputs
• AL600ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 111003
Advertisement
Table of Contents
Related Manuals for Altronix AL600ULX
Summary of Contents for Altronix AL600ULX
-
Page 1: Installation Guide
AL600ULX Series Power Supply/Charger Installation Guide Models Include: • AL600ULX Single Output • AL600ULPD4 • AL600ULPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL600ULPD8 • AL600ULPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL600ULXPD16 • AL600ULXPD16CB... -
Page 2: Specifications

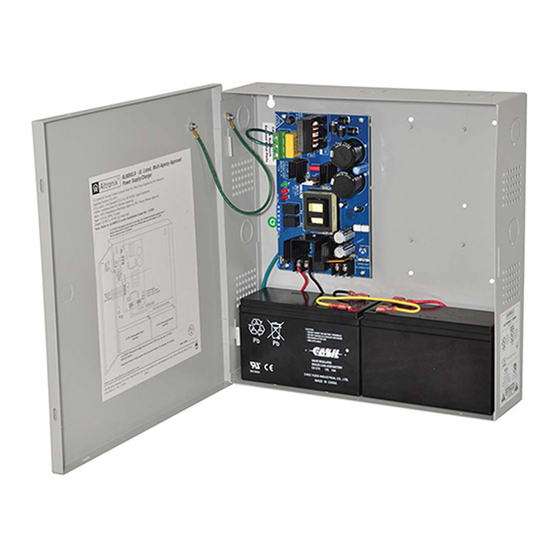

Overview: The AL600ULX is a power supply that converts a 115VAC / 60Hz input, to a 12VDC or 24VDC regulating output (see specifications below). The AL600ULX is the base power supply unit for the UL Listed multi-output power supply/charger series: AL600ULPD4, AL600ULPD4CB, AL600ULPD8, AL600ULPD8CB, AL600ULXPD16, AL600ULXPD16CB (Refer to AL600ULX Series Power Supply Configuration Reference Chart below). -
Page 3: Installation Instructions
[+ BAT] and to the [positive (+)] terminal of the battery. Connect black battery lead to terminal marked [BAT -] and to the [negative (-)] terminal of the battery. 24VDC operation: Connect two (2) 12VDC batteries in series. Keep power limited wiring separate from non-power limited. Use minimum .25" spacing. AL600ULX Series - 3 -... -
Page 4: Led Diagnostics
5. Connect device(s) to be powered: a. For AL600ULX(R) Power Supply connect devices to terminals marked [+ DC -] (Fig. 1, pg. 3). b. For other Power Distribution Models connect devices to be powered to terminal pairs 1 to 4 marked [1P &... -
Page 5: Power Distribution Module(S)
From Power Supply Non- Power Limited DC Output to devices Board From Power Supply (Factory Installed) DC Output to devices Board 1P-8P Power Outputs, (Factory Installed) 1P-8P Power Outputs, 1N-8N Common Outputs 1N-8N Common Outputs AL600ULX Series - 5 -... -
Page 6: Maintenance
Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed. Enclosure Dimensions: • AL600ULX • AL600ULPD4 • AL600ULPD4CB • AL600ULPD8 • AL600ULPD8CB 13.5”H x 13”W x 3.25”D - 6 -... - Page 7 15.5”H x 12.23”W x 4.5”D 1.500" 4.615" 4.615" 1.500" 1.750" 1.375" 1.125" 4.500" 12.230" 4.500" 1.250" 1.250" 1.100" 1.100" 0.910" 0.910" 1.500" 1.500" 2.000" 15.500" 2.000" 5.000" 5.000" 0.790" 1.250" 1.100" 1.250" 1.750" 1.500" 4.615" 4.615" 1.500" AL600ULX Series - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIAL600ULX Series H16K MEMBER - 8 - AL600ULX Series...
