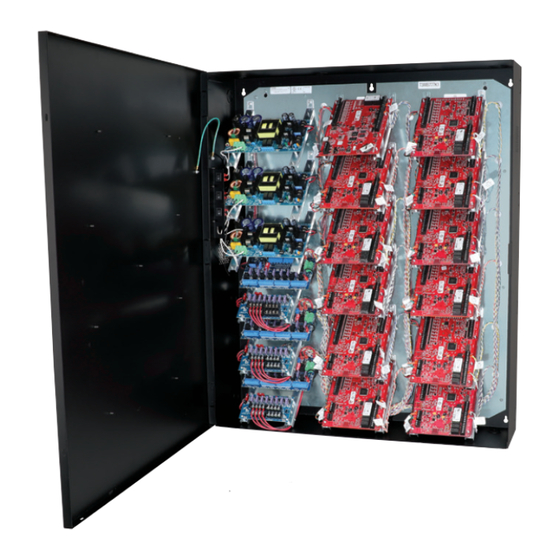

Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
T3MB777K1
24 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
eleven (11) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove3 enclosure with TM3B Altronix/Mercury backplane
and 36 BR3M mounting brackets.
- Three (3) eFlow104NB - Power Supply/Chargers
- Three (3) ACMS8 - Dual Input/Output Fuse Protected
Access Power Controllers
- Three (3) PDS8 - Dual Input/Output Fuse Protected
Power Distribution Modules
- Two (2) Rocker Switch Brackets with
Three (3) Rocker Switches (Not evaluated by UL)
- Wire harnesses and management
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T3MB777K1_051823
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T3MB777K1D
24 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
eleven (11) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove3 enclosure with TM3B Altronix/Mercury backplane
and 36 BR3M mounting brackets.
- Three (3) eFlow104NB - Power Supply/Chargers
- Three (3) ACMS8CB - Dual Input/Output PTC Protected
Access Power Controllers
- Three (3) PDS8CB - Dual Input/Output PTC Protected
Power Distribution Modules
- Two (2) Rocker Switch Brackets with
Three (3) Rocker Switches (Not evaluated by UL)
- Wire harnesses and management
More than just power.™
Advertisement
Table of Contents
Related Manuals for Altronix TROVE PLUS T3MB777K1
Summary of Contents for Altronix TROVE PLUS T3MB777K1
- Page 1 (11) Dual Reader Interface Modules. Each fully assembled kit includes: Each fully assembled kit includes: - Trove3 enclosure with TM3B Altronix/Mercury backplane - Trove3 enclosure with TM3B Altronix/Mercury backplane and 36 BR3M mounting brackets. and 36 BR3M mounting brackets.
- Page 2 Overview: Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/chargers and sub-assemblies, wire harnesses and finger duct. Configuration Chart: Nominal DC Output Voltage Range Power Power Power Supply Supply Supply Maximum Supply Current for Main and Aux.
- Page 3 Access Controller Position Chart for the Following Models: LenelS2 / Mercury Access Controller Pem Mounting LNL-2220 / LP1502 A B C D F G H LNL-1320-S3 / MR52 Fig. 2 Altronix eFlow104NB LP1502 MR52 Altronix eFlow104NB RSB2 MR52 MR52 RSB1...
- Page 4 8.75” (222.3mm) 2” (50.8mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
