Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
T3M77XK1V
16 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
seven (7) Dual Reader Interface Modules.
T3M77XK2V
14 Door Kit with Fused Outputs
Accommodates one (1) Intelligent Controller and seven (7) Dual
Reader Interface Modules.
T3M77XK3V
16 Door Kit with Fused Outputs
Accommodates up to eight (8) Dual Reader Interface Modules.

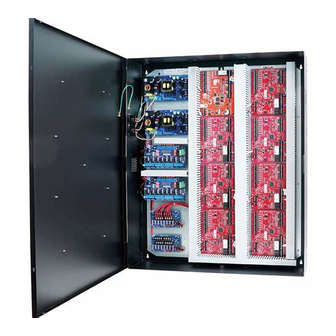

Each fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NBV - Power Supply/Charger
- Two (2) ACMS8 - Dual Input/Output Fuse Protected
Access Power Controller
- Two (2) VR6 - Voltage Regulator
- Two (2) PDS8 - Dual Input/Output Fuse Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
- Wire harnesses and finger duct
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T3M77XKV_071023
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T3M77XK1DV
16 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Dual Reader Controller and
seven (7) Dual Reader Interface Modules.
T3M77XK2DV
14 Door Kit with PTC Outputs
Accommodates one (1) Intelligent Controller and seven (7) Dual
Reader Interface Modules.
T3M77XK3DV
16 Door Kit with Fused Outputs
Accommodates up to eight (8) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove3 enclosure with TM3 Altronix/Mercury backplane
- Two (2) eFlow104NBV - Power Supply/Charger
- Two (2) ACMS8CB - Dual Input/Output PTC Protected
Access Power Controller
- Two (2) VR6 - Voltage Regulator
- Two (2) PDS8CB - Dual Input/Output PTC Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with Two (2) Rocker Switches
- Wire harnesses and finger duct
More than just power.™
Advertisement
Related Manuals for Altronix TROVE PLUS T3M77XK1V
Summary of Contents for Altronix TROVE PLUS T3M77XK1V
- Page 1 Accommodates up to eight (8) Dual Reader Interface Modules. Each fully assembled kit includes: Each fully assembled kit includes: - Trove3 enclosure with TM3 Altronix/Mercury backplane - Trove3 enclosure with TM3 Altronix/Mercury backplane - Two (2) eFlow104NBV - Power Supply/Charger...
-
Page 2: Configuration Chart
Overview: Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/ charger(s) and sub-assemblies, wire harnesses and finger duct. Configuration Chart: Nominal DC Output Voltage Power Supply 1 Power Supply 2 [DC]... - Page 3 2W 4W 2W 4W PWR2 + PWR2 + J5,J6 J5,J6 RS-485 RS-485 TERMINATOR TERMINATOR ACDC ACDC Altronix ACMS8(CB) with VR6 below RDR POWER RDR POWER REG UNREG REG UNREG IN-5V IN-5V OUT-12V OUT-12V PWR1 + PWR1 + PWR2 + PWR2 +...
- Page 4 2W 4W 2W 4W PWR2 + PWR2 + J5,J6 J5,J6 RS-485 RS-485 TERMINATOR TERMINATOR ACDC ACDC Altronix ACMS8(CB) with VR6 below RDR POWER RDR POWER REG UNREG REG UNREG IN-5V IN-5V OUT-12V OUT-12V PWR1 + PWR1 + PWR2 + PWR2 +...
- Page 5 2W 4W 2W 4W PWR2 + PWR2 + J5,J6 J5,J6 RS-485 RS-485 TERMINATOR TERMINATOR ACDC ACDC Altronix ACMS8(CB) with VR6 below RDR POWER RDR POWER REG UNREG REG UNREG IN-5V IN-5V OUT-12V OUT-12V PWR1 + PWR1 + PWR2 + PWR2 +...
- Page 6 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 7 TM3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 2.5” (63.5mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) T3M77XKV Kit Series Installation Guide - 7 -...
- Page 8 8.75” (222.3mm) 2” (50.8mm) Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
