T3Mb777K1(D) Configuration; Access Controller Position Chart For The Following Models - Altronix TROVE PLUS T3MB777K1 Installation Manual

1. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2, pg. 3).
2. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

LenelS2 / Mercury Access Controller
LNL-2220 / LP1502
LNL-1320-S3 / MR52

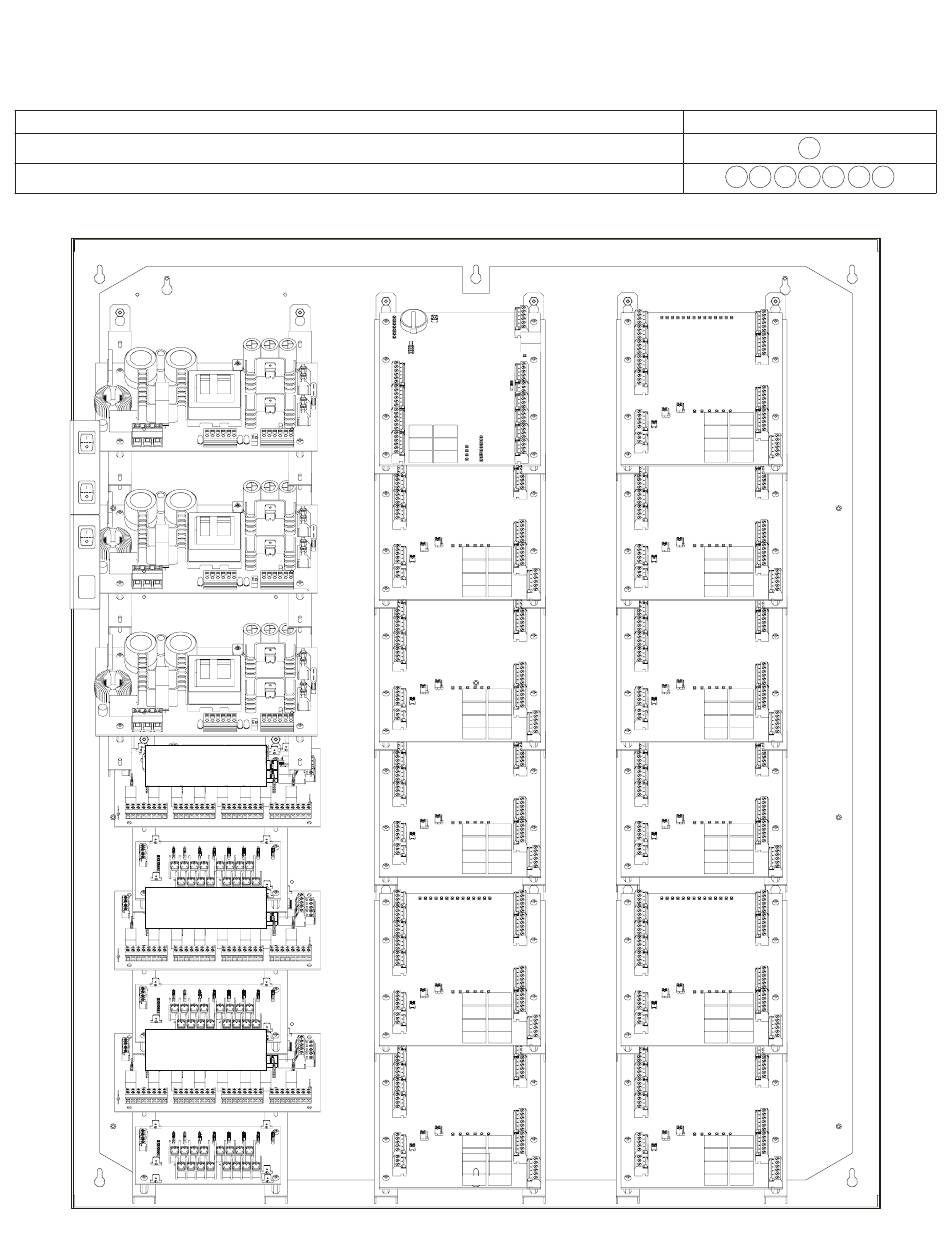

Fig. 2
Altronix eFlow104NB
Altronix eFlow104NB
RSB2
RSB1
Altronix eFlow104NB
Altronix
ACMS8(CB)/PDS8(CB)
Altronix
ACMS8(CB)/PDS8(CB)
Altronix
ACMS8(CB)/PDS8(CB)
T3MB777K1 Kit Series Installation Guide

T3MB777K1(D) Configuration:

LP1502
MR52
MR52
MR52
MR52
MR52
Pem Mounting
E
A B C D F G H
MR52
MR52
MR52
MR52
MR52
MR52
- 3 -
