Altronix Maximal FV Access Power/Controllers distribute and switch power to access control systems and acces-

sories. They convert a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) independently

controlled 12VDC or 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted

to dry form "C" contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger

input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of

access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP

Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire

alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

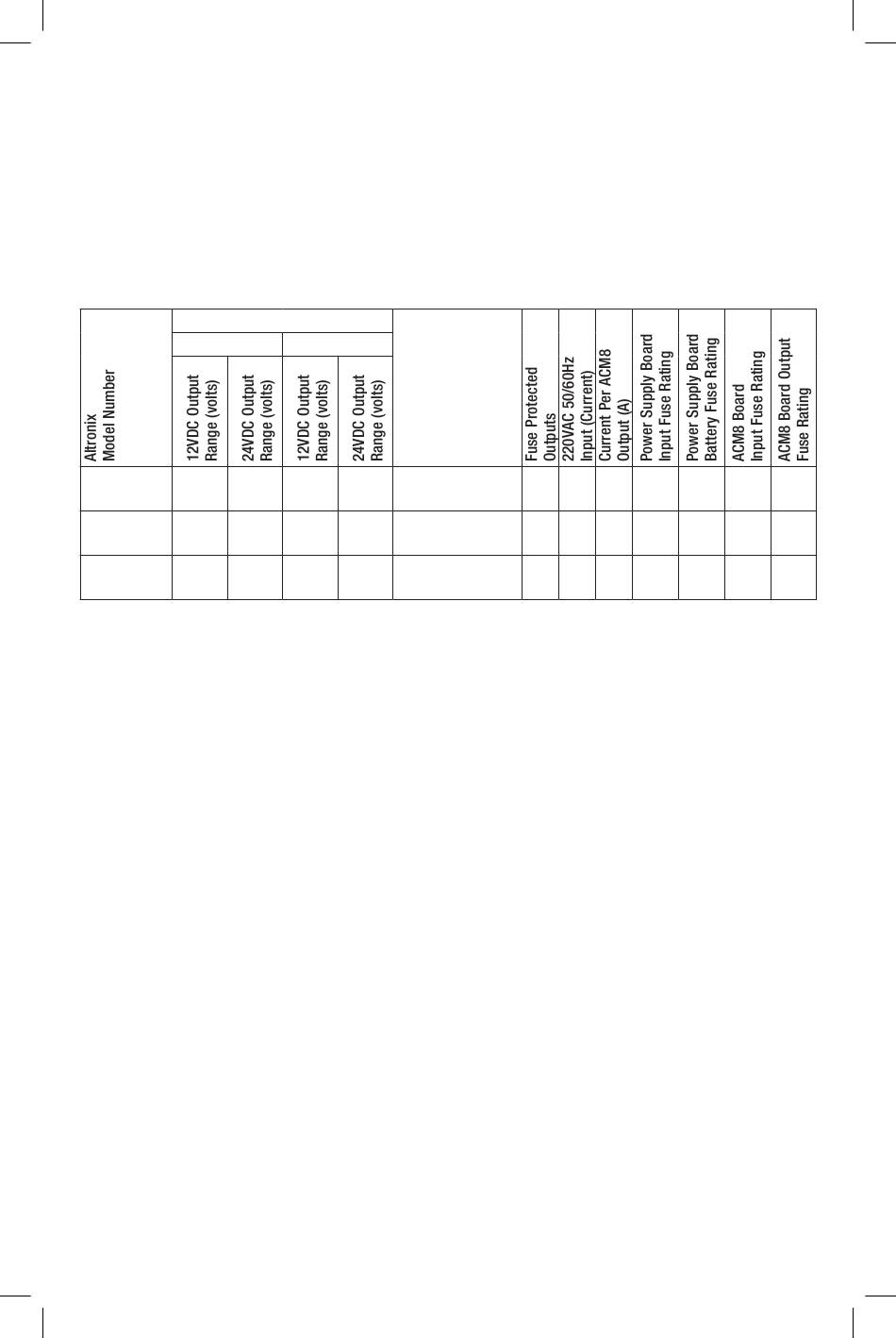

Maximal FV Series Configuration Chart:

Nominal DC Output Voltage

[DC]

10.0-

20.19-

Maximal3FV

13.2

26.4

10.03-

Maximal5FV

13.2

20.17-

Maximal7FV

–

26.4

ACM8 Access Power Controller Modules:

• Sixteen (16) independently trigger controlled outputs. Output options:

a) Sixteen (16) Fail-Safe filtered power outputs.

b) Sixteen (16) Fail-Secure filtered power outputs.

c) Sixteen (16) form "C" relay outputs (rated @ 5A/28VDC or VAC).

d) Any combination of the above.

• Sixteen (16) Access Control System trigger inputs. Input trigger options:

a) Sixteen (16) normally open (NO) dry trigger inputs.

b) Sixteen (16) open collector inputs.

c) Any combination of the above.

• Sixteen (16) unswitched filtered aux. power outputs (outputs are rated @ 2.5A).

• Red LEDs on ACM8 board indicate individual outputs are triggered (relays energized).

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.

Fire Alarm disconnect input trigger options:

a) Normally open (NO) or normally closed (NC) dry trigger input.

b) Polarity reversal input from FACP signaling circuit.

• Green LED on ACM8 board indicates FACP disconnect is triggered.

• FACP output relay indicates that FACP input is triggered (form "C" contact rated @ 1A/28VDC).

• eFlow Power Supply/Charger provides common power for ACM8 board (factory wiring) and all connected

access control devices (field wiring).

• ACM8 board main fuses are rated @ 10A. Output fuses are rated @ 3.5A.

Maximal3FV/5FV/7FV Series (Fused) Installation Guide
