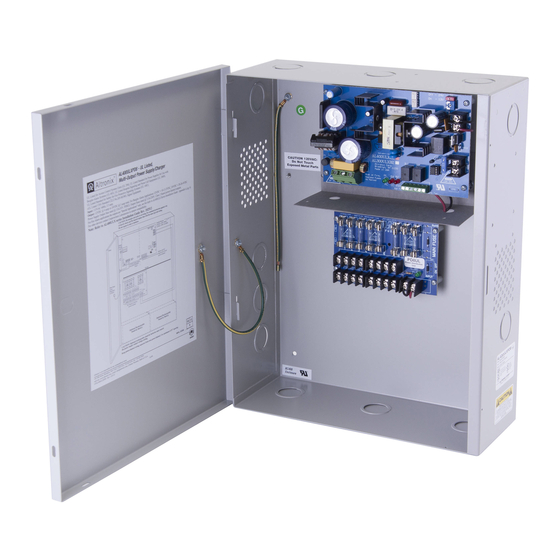

Installation Manual
AL400ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL400ULX
- Single Output
• AL400ULPD4
- Four (4) Fused Outputs
• AL400ULPD8
- Eight (8) Fused Outputs
• AL400ULXPD16
- Sixteen (16) Fused Outputs
For a red enclosure add an "R" suffix to the part # e.g. AL400ULPD8R
• AL400ULPD4CB
- Four (4) PTC Outputs
• AL400ULPD8CB
- Eight (8) PTC Outputs
• AL400ULXPD16CB
- Sixteen (16) PTC Outputs
Rev. 102512
Advertisement
Table of Contents
Related Manuals for Altronix AL400ULX
Summary of Contents for Altronix AL400ULX
-
Page 1: Installation Guide
AL400ULX Series Power Supply/Charger Installation Guide Models Include: • AL400ULX - Single Output • AL400ULPD4 • AL400ULPD4CB - Four (4) Fused Outputs - Four (4) PTC Outputs • AL400ULPD8 • AL400ULPD8CB - Eight (8) Fused Outputs - Eight (8) PTC Outputs •... -
Page 2: Specifications
Overview: The AL400ULX is a power supply that converts a 115VAC / 60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL400ULX is the base power supply unit for the UL Listed multi-output power supply/charger series: AL400ULPD4, AL400ULPD4CB, AL400ULPD8, AL400ULPD8CB, AL400ULXPD16, AL400ULXPD16CB (Refer to AL400ULX Series Power Supply Configuration Reference Chart below). -
Page 3: Installation Instructions
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. Keep power limited wiring separate from non-power limited. Use minimum 0.25" spacing. AL400ULX series - 3 -... -
Page 4: Maintenance
5. Connect devices to be powered: a. For AL400ULX Power Supply: connect devices to the terminals marked [- DC +] (Fig. 1, pg. 3). b. For other Power Distribution Models: connect devices to be powered to the terminal pairs 1 to 4 marked [1P &... -
Page 5: Terminal Identification
O U T P U T S DC Output to devices DC Output to devices From Power Supply From Power Supply 1P-8P Power Outputs, Board Board 1P-8P Power Outputs, 1N-8N Common Outputs (Factory Installed) (Factory Installed) 1N-8N Common Outputs AL400ULX series - 5 -... -
Page 6: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL400ULX output. System Sensor Max Stand-by Alarm Current Detector Type Smoke Detector/Base Current (mA) (mA) B112LP Base 0.12... - Page 7 Enclosure Dimensions (BC300): AL400ULX, AL400ULXR, AL400ULPD4, AL400ULPD4CB, AL400ULPD8, AL400ULPD8CB 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20” 0.75” 0.75” (31mm) 11.0” (31mm)
- Page 8 (117.22mm) (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. IIAL400ULX series E18P MEMBER - 8 - AL400ULX series...
