- Page 1 PDS16/PDS16CB Dual Input Power Distribution Modules Installation Guide More than just power. Rev. 060822...
-
Page 2: Specifications

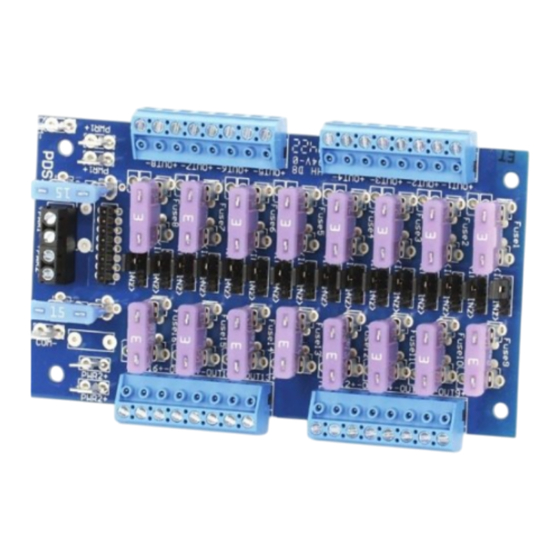

Overview: Altronix PDS16/PDS16CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of sixteen (16) fuse/PTC protected outputs. Specifications: Power Inputs:... - Page 3 Maximum Output of Altronix Power Supplies: DC Power Supplies UL Listed or Recognized Output Voltage Max. Output Current Power Supply AL300ULXB2 12VDC or 24VDC 2.5A AL400ULXB2 12VDC or 24VDC 12VDC @ 4A or 24VDC @ 3A AL600ULXB 12VDC or 24VDC...
-
Page 4: Installation Instructions
1. Mount PDS16/PDS16CB in the desired location/enclosure. When mounting PDS16/PDS16CB alone, use female/female spacers (provided). When mounting with optional VR6 voltage regulator, use female/female spacers (provided) between PDS16/PDS16CB and VR6 (Fig. 3, pg. 4). Attach PDS16/PDS16CB to spacers utilizing 5/16” pan head screws (provided). - Page 5 Use 18 AWG or larger UL Listed wire equipped with 1/4” UL Recognized quick connect terminals rated for proper voltage/current for all jumper connections. 1. Connect first PDS16/PDS16CB board’s spade lug marked [PWR1 +] to the second PDS16/PDS16CB board’s spade lug marked [PWR1 +] (Fig. 2, pg. 3).
- Page 6 VR6 - Voltage Regulator Overview: Altronix VR6 voltage regulator is designed to convert a 24VDC input into a regulated 5VDC or 12VDC output. Refer to VR6 Installation Intructions Rev. 050517. Specifications: Power Input / Output: LED Indicators: • Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
- Page 7 Notes: PDS16/PDS16CB Sub-Assembly Installation Guide - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER PDS16/PDS16CB Sub-Assembly F08V - 8 - PDS16/PDS16CB Sub-Assembly Installation Guide...
