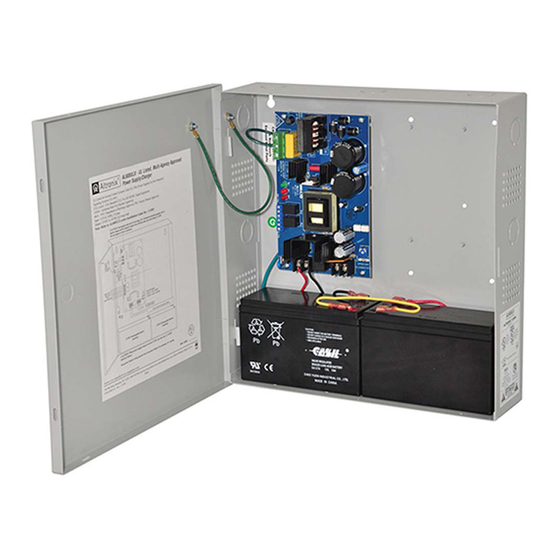

Altronix AL600ULX Series Installation Manual
Power supply/charger
Hide thumbs
Also See for AL600ULX Series:
- Installation manual (9 pages) ,
- Installation instructions (4 pages) ,
- Installation manual (9 pages)
Table of Contents
Advertisement
Quick Links
AL600ULX Series
Power Supply/Charger
Installation Guide
Models Include:
AL600ULX
- Single Output.
AL600ULPD4
- Four (4) Fuse Protected Outputs.
AL600ULPD8
- Eight (8) Fuse Protected Outputs.
AL600ULXPD16
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. AL600ULPD8R
For a larger enclosure add "XX" suffix to the part #, e.g. AL600ULXX
Rev. 013119
AL600ULPD4CB
- Four (4) PTC Protected Outputs.
AL600ULPD8CB
- Eight (8) PTC Protected Outputs.
AL600ULXPD16CB
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL600ULX Series
Summary of Contents for Altronix AL600ULX Series
- Page 1 AL600ULX Series Power Supply/Charger Installation Guide Models Include: AL600ULX - Single Output. AL600ULPD4 AL600ULPD4CB - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL600ULPD8 AL600ULPD8CB - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs.
- Page 2 Overview: Altronix AL600ULX is a power supply that converts a 115VAC, 60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL600ULX is a base power supply unit for the UL Listed multi-output power supply/charger series: AL600ULPD4, AL600ULPD4CB, AL600ULPD8, AL600ULPD8CB, AL600ULXPD16, AL600ULXPD16CB (Refer to AL600ULX Series Power Supply Configuration Reference Chart below).
-
Page 3: Power Supply Output Specifications
Alarm = 6.0A Stand-by = 200mA 24VDC / 12AH Battery – – Alarm = 6.0A Stand-by = 6.0A Stand-by = 1.0A Stand-by = 300mA 24VDC / 40AH Battery Alarm = 6.0A Alarm = 6.0A Alarm = 6.0A AL600ULX Series - 3 -... - Page 4 ON - 12V Optional Rechargeable Optional Rechargeable Stand-by Battery Stand-by Battery CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. - 4 - AL600ULX Series...
-
Page 5: Installation Instructions
[+ BAT –] to ensure that there is no break in the battery connection wires. Note: Maximum charging current under discharges is 0.7A. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. AL600ULX Series - 5 -... -
Page 6: Led Diagnostics
Stand-by battery connections. Maximum charge current 0.7A. Power Distribution Module Terminal Legend Terminal Legend Function/Description PD4UL/PD4ULCB PD8UL/PD8ULCB 1P to 4P 1P to 8P Positive DC power outputs. 1N to 4N 1N to 8N Negative DC power outputs. - 6 - AL600ULX Series... -
Page 7: Power Distribution Module(S)
Class 2 Rated Power-Limited From Power Supply Board Non Power-Limited DC Output to devices From Power Supply (Factory Installed) DC Output to devices Board 1P-8P Power Outputs, 1P-8P Power Outputs, (Factory Installed) 1N-8N Common Outputs 1N-8N Common Outputs AL600ULX Series - 7 -... -
Page 8: Appendix A - Ul Listed Compatible Devices
A.2 Relays Table A-2 below lists relays compatible with AL600ULX output. Manufacturer Model Current (mA) Manufacturer Model Current (mA) PR-1 R-20T PR-2 R-24T PR-3 R-10E System Sensor System Sensor EOLR-1 R-14E R-10T R-20E R-14T R-24E - 8 - AL600ULX Series... - Page 9 Notes: AL600ULX Series - 9 -...
- Page 10 Notes: - 10 - AL600ULX Series...
- Page 11 (279mm) 0.9375” 1.40” 1.40” (24mm) (36mm) (36mm) 5.10” 5.10” (130mm) (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) 3.25” 3.25” (83mm) (83mm) 3.25” (83mm) 1.0” 1.0” (25mm) (25mm) 1.0” 10.5” 1.0” (25mm) (267mm) (25mm) AL600ULX Series - 11 -...
- Page 12 (117.22mm) (117.22mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL600ULX Series A31S...
