Precautions - Ruijie RG-AP180P-L Hardware Installation And Reference Manual

Hardware Installation and Reference Guide
Confirm the following requirements before installation:

The installation location provides sufficient space for heat dissipation.

The installation location meets the temperature and humidity requirements of the device.

The power supply and required current are available in the installation location.

The Ethernet cables have been deployed in the installation location.

The selected power supply meets the system power requirements.

The position of the indoor emergency power switch is found before installation, so that the power switch can
be cut off in case of accidents.

The mounting bracket dimensions and mounting hole pattern should meet the dimensions requirements in
the technical specifications. The following figure shows the mounting bracket dimensions.

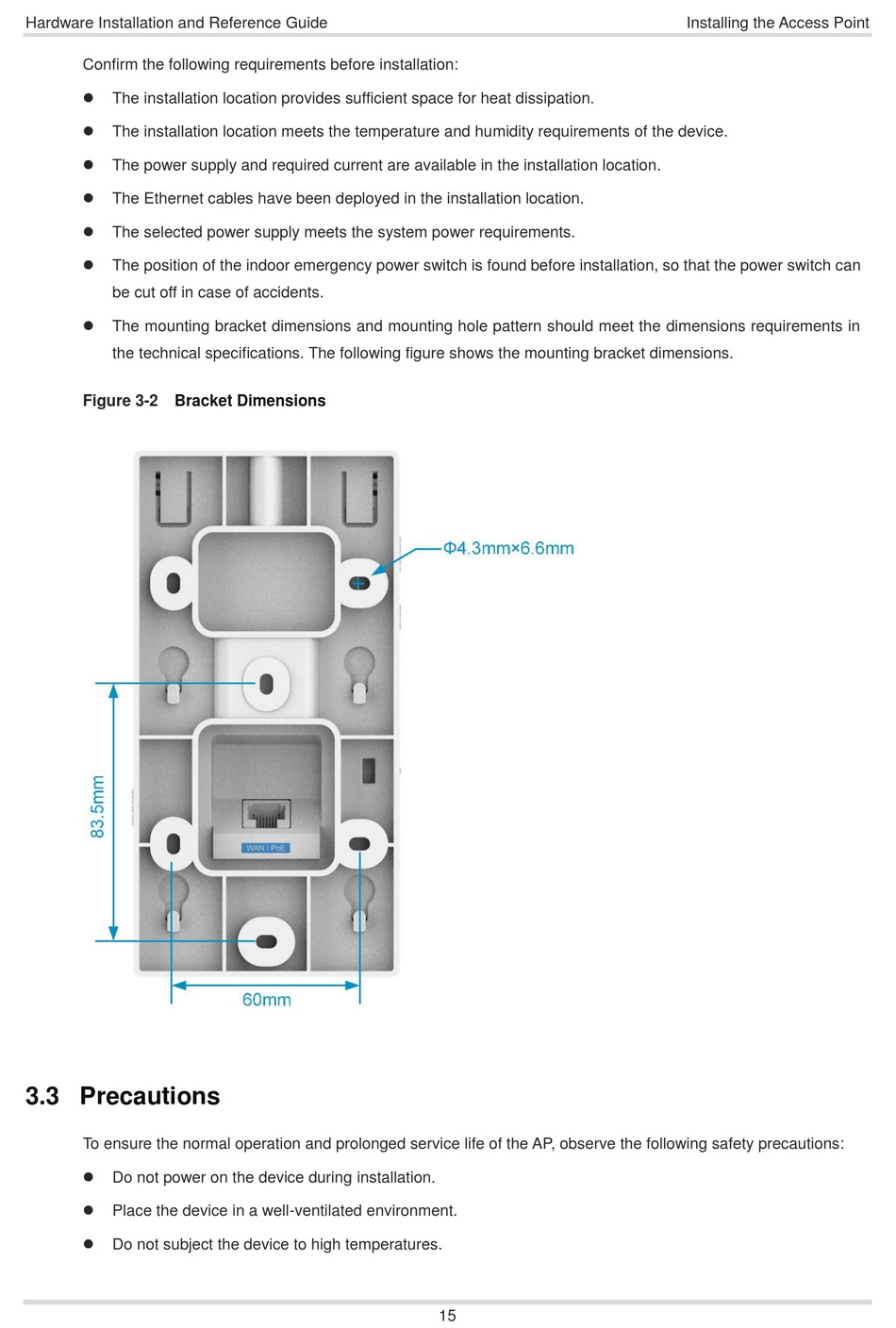

Figure 3-2 Bracket Dimensions
3.3

Precautions

To ensure the normal operation and prolonged service life of the AP, observe the following safety precautions:

Do not power on the device during installation.

Place the device in a well-ventilated environment.

Do not subject the device to high temperatures.
15
Installing the Access Point
