Hardware Installation and Reference Guide

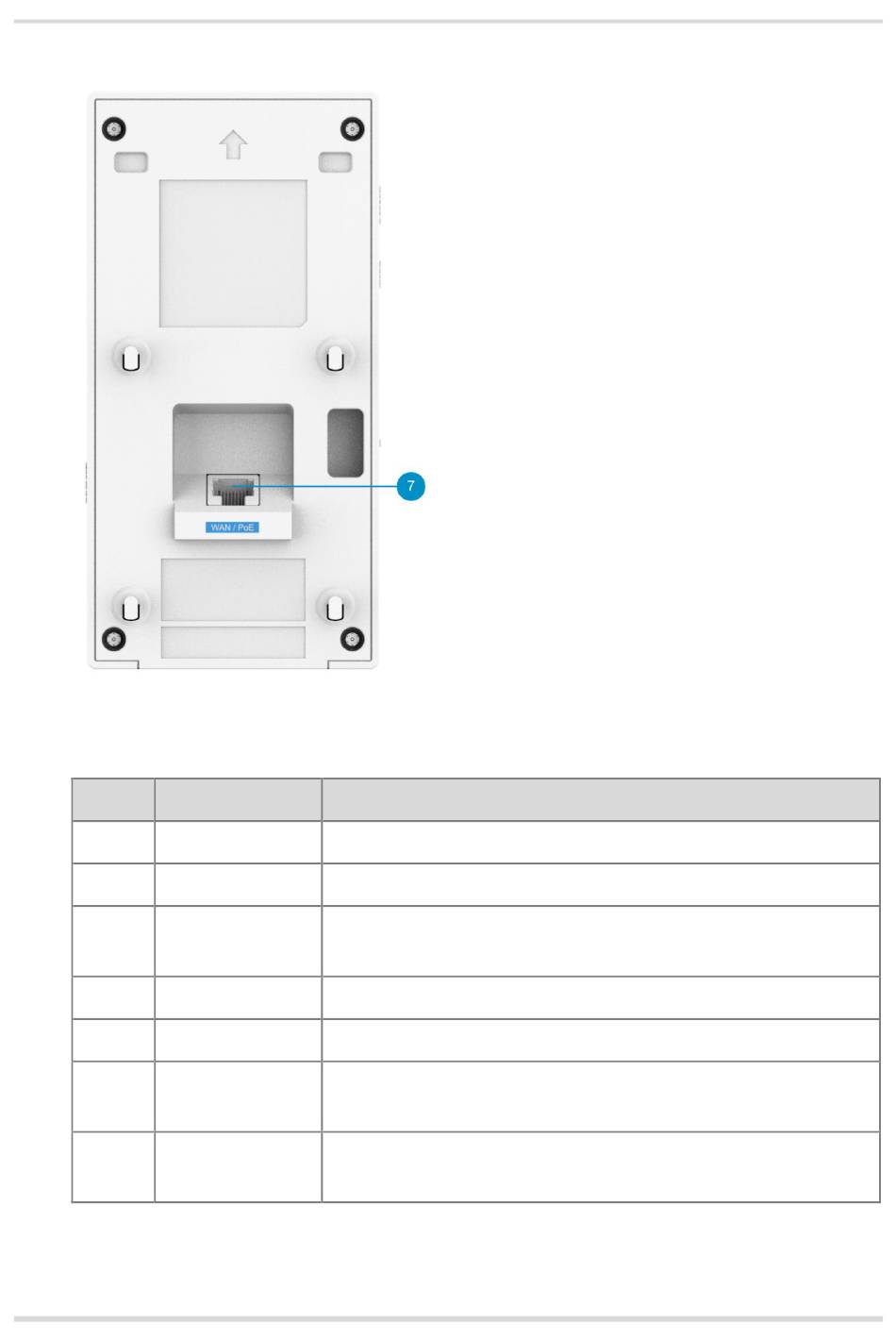

Figure 1-4
Rear View
Table 1-1
LEDs, Buttons and Ports
Item
No.
1
LED
2
DC connector
3
Console port
4
Reset button
5
Lock slot
6
LAN port
7
WAN port
Description
Used to show the running status of the system
Connected to a DC power source
Micro USB-type management port, used to connect to a USB cable to
manage the AP
Used to reboot the device or restore the device to factory settings
Used to install the security screw
Connected to the downlink service ports for data transmission. The LAN1
port can provide 48 V/10 W PoE output to external devices.
Connected to the uplink service ports for wired Ethernet connection and
service data transmission, supporting IEEE 802.3af/at-compliant PoE
