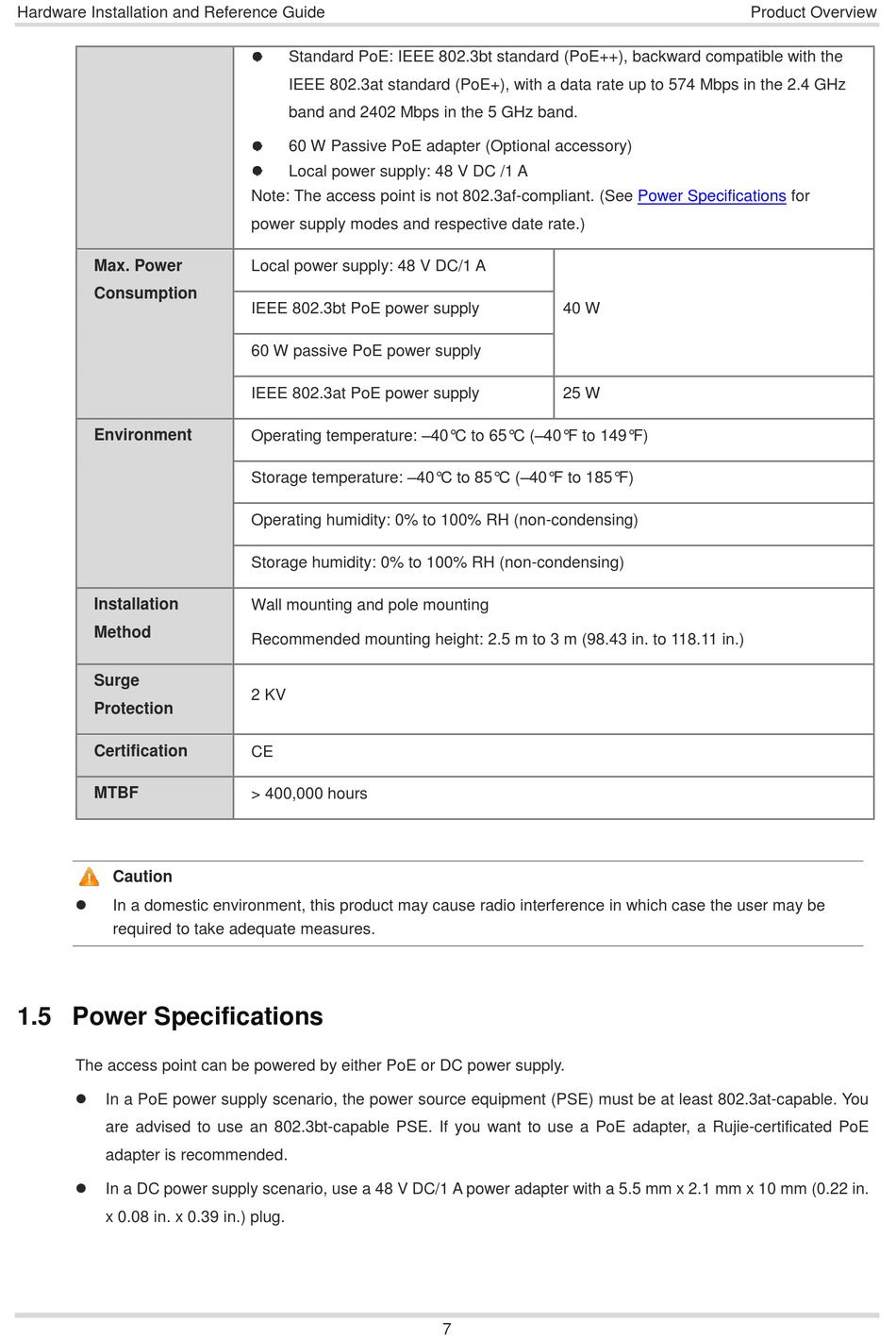

Power Specifications - Ruijie Reyee RAP6260-D Hardware Installation And Reference Manual

Hardware Installation and Reference Guide
Max. Power
Consumption
Environment
Installation
Method
Surge
Protection
Certification
MTBF
Caution

In a domestic environment, this product may cause radio interference in which case the user may be
required to take adequate measures.
1.5

Power Specifications

The access point can be powered by either PoE or DC power supply.

In a PoE power supply scenario, the power source equipment (PSE) must be at least 802.3at-capable. You
are advised to use an 802.3bt-capable PSE. If you want to use a PoE adapter, a Rujie-certificated PoE
adapter is recommended.

In a DC power supply scenario, use a 48 V DC/1 A power adapter with a 5.5 mm x 2.1 mm x 10 mm (0.22 in.
x 0.08 in. x 0.39 in.) plug.
Standard PoE: IEEE 802.3bt standard (PoE++), backward compatible with the
IEEE 802.3at standard (PoE+), with a data rate up to 574 Mbps in the 2.4 GHz
band and 2402 Mbps in the 5 GHz band.
60 W Passive PoE adapter (Optional accessory)
Local power supply: 48 V DC /1 A
Note: The access point is not 802.3af-compliant. (See
power supply modes and respective date rate.)
Local power supply: 48 V DC/1 A
IEEE 802.3bt PoE power supply
60 W passive PoE power supply
IEEE 802.3at PoE power supply
Operating temperature: –40° C to 65° C (–40° F to 149° F)
Storage temperature: –40° C to 85° C (–40° F to 185° F)
Operating humidity: 0% to 100% RH (non-condensing)
Storage humidity: 0% to 100% RH (non-condensing)
Wall mounting and pole mounting
Recommended mounting height: 2.5 m to 3 m (98.43 in. to 118.11 in.)
2 KV
CE
> 400,000 hours
40 W
25 W
7
