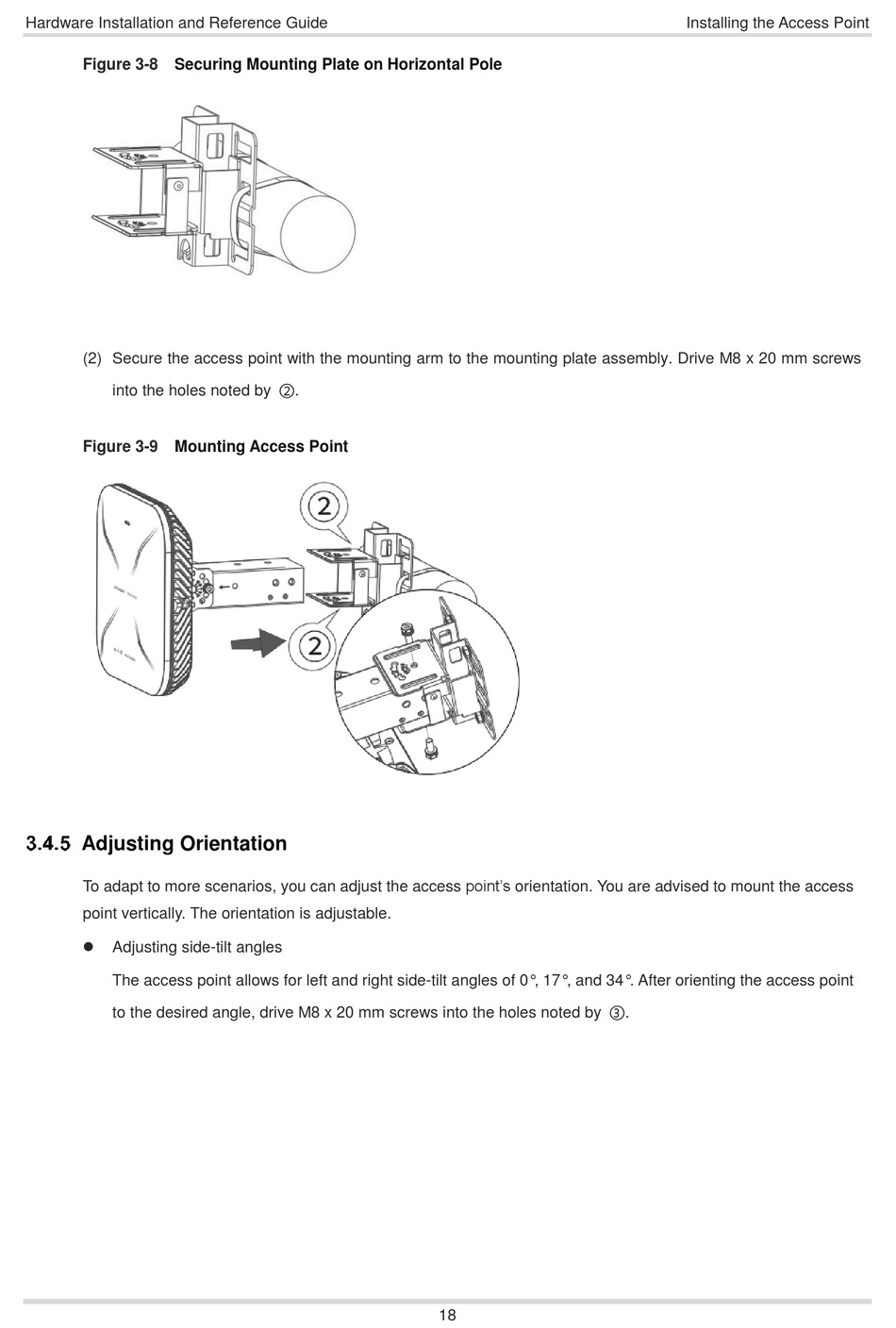

Figure 3-8 Securing Mounting Plate on Horizontal Pole
(2) Secure the access point with the mounting arm to the mounting plate assembly. Drive M8 x 20 mm screws
into the holes noted by ②.
Figure 3-9 Mounting Access Point

Adjusting Orientation

To adapt to more scenarios, you can adjust the access point's orientation. You are advised to mount the access
point vertically. The orientation is adjustable.

Adjusting side-tilt angles
The access point allows for left and right side-tilt angles of 0° , 17° , and 34° . After orienting the access point
to the desired angle, drive M8 x 20 mm screws into the holes noted by ③.
