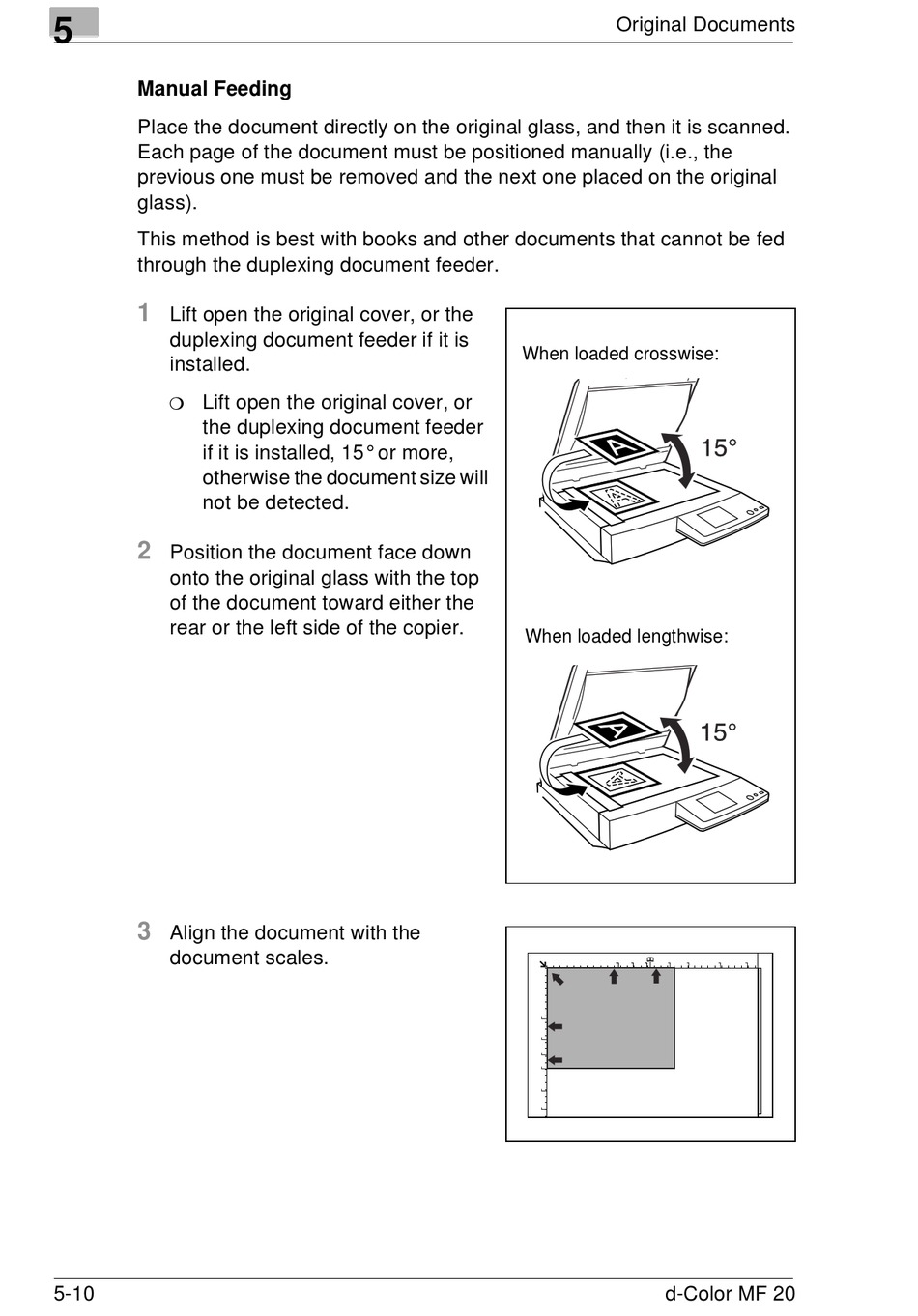

Manual Feeding

Place the document directly on the original glass, and then it is scanned.
Each page of the document must be positioned manually (i.e., the
previous one must be removed and the next one placed on the original
glass).
This method is best with books and other documents that cannot be fed
through the duplexing document feeder.
1
Lift open the original cover, or the
duplexing document feeder if it is
installed.
H
Lift open the original cover, or
the duplexing document feeder
if it is installed, 15° or more,
otherwise the document size will
not be detected.
2
Position the document face down
onto the original glass with the top
of the document toward either the
rear or the left side of the copier.
3
Align the document with the
document scales.
5-10
Original Documents
When loaded crosswise:
When loaded lengthwise:
