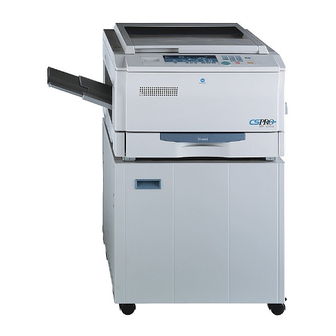

Minolta EP1054 Operator's Manual

Hide thumbs Also See for EP1054:

Service manual (193 pages)

User manual (339 pages)

General instructions manual (280 pages)

Table of Contents

Quick Links

Need help?

Do you have a question about the EP1054 and is the answer not in the manual?

Questions and answers

Summary of Contents for Minolta EP1054

Page 1: Table Of Contents
Table of Contents Using the Copier Properly .............. X-1 What is an Energy Star Copier ?............ X-3 EP1054 ..................X-4 CE Marking (Declaration of Conformity) ........X-4 Terms and Symbols for the Type of Originals and Copy Paper..X-5 Feeding Direction (copy paper path)..........X-5 “Width”...
Page 2 Selecting the Manual Exposure Mode.......... 3-10 Selecting the Photo Mode ............3-10 Book Copying ................3-11 Selecting the Book Copying Mode ..........3-11 Manual Bypass Copying ............3-13 Using the Manual Bypass Tray............. 3-14 Using the Multi Bypass Tray (Option)........... 3-14 EP1054...
Page 3 Unpacking the I. U.................5-14 Setting up the I. U.................5-14 Charging the Copier with Starter and Toner .........5-16 Troubleshooting When this Type of Copy is Produced..........6-1 The Copier is not functioning as designed ........6-3 Specifications Copier EP1085................7-1 Multi Bypass Tray MB-4 ..............7-2 EP1054...
Page 4 Original Pad..................8-2 Original Glass ................. 8-3 Control Panel.................. 8-3 Front Door ..................8-3 Corona Units................... 8-4 Paper Size and Zoom Ratio Table..........8-5 Paper Size ..................8-5 Zoom Ratio Table (Original Size to Copy Paper Size) ....8-6 EP1054...
Page 5: Using The Copier Properly
Never unplug the power cord with a wet hand, as it could cause an electrical shock. Always unplug the power cord before moving the copier. Moving the copier with the power cord plugged in can damage the cord resulting in a fire or causing an electrical shock. EP1054...
Page 6 Pour avoir la certitude de travailler dans un environnment réunissant des conditions de confort, santé et de sécurité, il est préférable de bien aérer la pièce ou se trouve le copieur. EP1054...
Page 7: What Is An Energy Star Copier
It takes 10 times more energy to produce a piece of paper than it does to make a single copy on a copier. Therefore, using less paper also means decreased national energy consumption. EP1054...
Page 8: Ce Marking (Declaration Of Conformity
EP1054 Thank you for choosing Minolta. This operator’s manual explains how to operate the copier and replenish its supplies. It also gives some troubleshooting tips as well as general precautions to be observed when operating the copier. To ensure the best performance and effective use of your copier, read this manual carefully until you familiarize yourself thoroughly with its operation and features.
Page 9: Terms And Symbols For The Type Of Originals And Copy Paper
“feeding direction.” “Width” and “Length” When we talk about the size of the original or copy, we call side A “width” and side B “length.” A: Width B: Length EP1054...
Page 10: Terms And Symbols Used
“width,” we call it “lengthwise” and use symbol “L” or “ “. Crosswise When the original or copy has a “length” shorter than its “width,” we call it “crosswise” and use symbol “C” or “ ” EP1054...
Page 11: Safety Notes
If an extension cord is needed, use one with a capacity more than the power consumption of the copier. Make sure that no unusual, excessive force is being applied to the power cord or extension cord. EP1054...
Page 12: Grounding
To ensure easy copier operation, supply replacement and service maintenance, adhere to the recommended space requirements detailed below. NOTE è Be sure to allow a clearance of 150mm. or more at the back of the copier as there is a ventilation duct. 1,085 Copier 1,250 Scale: mm EP1054...
Page 13: Precautions For Use
ALWAYS provide good ventilation when making a large number of continuous copies. NEVER keep the copier running when it becomes inordinately hot or produces abnormal noise. If that happens, immediately turn OFF the copier, unplug it, and then call your Technical Representative. EP1054...
Page 14: Care Of Copier Supplies
Toner Bottle. Keep supplies out of the reach of children. If your hands become soiled with toner, wash them with soap and water immediately. Moving If you need to transport the copier over a long distance, consult your Technical Representative. EP1054...
Page 15: Legal Restrictions On Copying
Copyrighted Works without permission of the copyright owner In addition, it is prohibited under any circumstances to copy domestic or foreign currencies or Works of Art without permission of the copyright owner. When in doubt about the nature of a document, consult with legal counsel. EP1054...
Page 16 Safety Notes EP1054...
Page 17: Getting To Know Your Copier
EP1085 Drawers, allowing to make copies on them, see page 3-14. EP1054 The Paper Drawer can hold up to 250 sheets of copy paper. The Manual Bypass Tray allows you to make a copy...
Page 18: Copier Parts And Accessories
Holds up to 250 sheets of paper. The Edge Guide and Trailing Edge Stop are movable, allowing you to load paper of different sizes, see page 5-4. Exit Tray Holds copies fed out of the copier. Copy Tray Extender Slide this out when making copies on large-size paper. EP1054...
Page 19: Inside Copier
5-7. Toner Bottle Contains toner. Replace it with a new one when the Add Toner Indicator lights up, see page 5-2. Toner Bottle Holder Swing open to replace the Toner Bottle, see page 5-2. EP1054...
Page 20 Turn ON to prevent condensation from forming on the PC Drum when power is turned OFF. (For Technical Representative only) Fusing Unit Handle Hold onto this Handle when lifting the Upper Half of the Fusing Unit, see page 5-7. Fusing Unit Fuses the toner image onto the paper. EP1054...
Page 21: Multi Bypass Tray Mb-4
Multi Bypass Tray Load your paper on this Tray. It allows you to make copies continuously on paper fed from this Tray, see page 3-14. Multi Bypass Tray Slide this out to use large-size copy paper, see page 3-14. Extender EP1054...
Page 22: Control Panel Keys And Indicators
Photo Mode, see page 3-10. Exposure Control Key Press as necessary to make the exposure level lower in the ,Lighter) Manual Exposure Mode, see page 3-10. Book Key Press as necessary to select the Book Copying Mode , see page 3-11. EP1054...
Page 23 Press to start a copy cycle. Enlargement Key Press to select a desired fixed enlargement ratio, see page 3-8. Full Size Key Press to select full size (100%), see page 3-8. Reduction Key Press to select a desired fixed reduction ratio, see page 3-8. EP1054...
Page 24: Display
Example: Shows that a misfeed has occurred inside the copier. Call-Tech.-Rep. Indicator Indicates that the copier has developed a malfunction. When a malfunction occurs, the corresponding malfunction code is shown across the Zoom Ratio Indicator and Multi-Copy Display, see page 5-10. EP1054...
Page 25: Paper Information Display
Each shows the following data. Example Zoom ratio: 100% No. of copies: 1 Count of the Total Counter Example: 93,930 (copies) User’s Choice code and setting value Example: Choice code: 14, Setting: 1 Malfunction code Example: Malfunction code C0F30 1142O025AA EP1054...
Page 26: Exposure Information Display
Photo the Manual Exposure Mode, see page 3-10. The center LED is normally lit. Lighter Darker Auto/Photo Photo Mode Indicator Indicates that the copier is now in Auto Photo the Photo Mode, see page 3-10. Lighter Darker Auto/Photo 2-10 EP1054...
Page 27: Turning On And Off, And Resetting The Copier
When the Copier is Turned ON Blinking Orange Turns Green The Start Key blinks orange, indicating that the copier is now warming In about 30 sec., the Start key turns green. Now the copier is ready to make copies. EP1054 2-11...
Page 28: Minimizing The Warm-Up Time
1142O093CA Leaving the Energy Saver Mode Press any Key on the control panel, for instance, the Start Key. This cancels the Energy Saver Mode, and the copier will be ready to make copies in about 20 seconds. 1139O2360A 2-12 EP1054...
Page 29: Initial Mode And Panel Resetting
1139O4782A Useful Tip The Panel Reset Key enables you to cancel all previous settings efficiently. To avoid miscopy, try to press the Panel Reset Key before attempting to make any setting for your own job. EP1054 2-13...
Page 30: Auto Reset Function
Auto Reset Function is activated to cause the copier to return to the initial mode automatically. Useful Tip The Auto Reset Function can be enabled or disabled by User’s Choice. For more details, see page 4-6. 2-14 EP1054...
Page 31: Making Copies
3-6. YES: 1142O138DA Go step 3 or step 7. Load the desired paper size or make a copy using a Manual Bypass Tray. è Add Paper Indicator, see page 5-5. è Manual Bypass Copying, see page 3-13. EP1054...
Page 32 3-10. Select the Auto Exposure Mode or Photo Mode, see page 3-10. Auto Photo Lighter Darker Auto/Photo To copy from a book Selecting Book Copying Press the Book Key to select the Book Book Copying Mode, see page 3-11. EP1054...
Page 33 If you enter a wrong number, press the Clear key and enter the correct number. Starting the Copy Cycle Press the Start Key to start the copy cycle. Press the Stop Key to stop the copy cycle. 1139O2360A EP1054...
Page 34: Copying Procedure
Place a blank sheet of paper of the same size as the original over the original. Then, lower the Original Cover. NOTE è If this is not done, the copy produced may be of very poor quality. Gently lower the Original Cover. EP1054...
Page 35: Book Original
Original Width Scale end. NOTE è Not positioning an open book properly will result in copies with pages in incorrect order. è Do not place an original weighing more than 3kg on the Original Glass, as an image problem could result. EP1054...
Page 36: Checking The Copy Paper Size And Selecting The Paper Source
Each time the Paper Select Key is pressed, the Paper Source Indicators or Multi Bypass Indicator lights up alternately. Also, the Paper Size Indicator corresponding to that of the Drawer lights up. LGL. 11x17 LTR. 11x14 LTR. 5 x8 Paper Paper Metric EP1054...
Page 37: Zoom Ratio
Zoom Ratios Any ratio from 50% to 200% (in 1% increments) can be selected. 50%~200% 1139O3590A Selecting the Fixed Zoom Ratios Press the Reduction, Full Size, or Enlargement Key to select a fixed zoom 100% ratio of your choice. EP1054...
Page 38: Setting A Zoom Ratio
Zoom Down Key makes the ratio Zoom range: smaller 50% to 200% Zoom Up Key makes the ratio greater Useful Tip To save time, first select the fixed ratio nearest to the target zoom ratio before using the Zoom Up or Down Key. EP1054...
Page 39: Image Density
Darker Auto/Photo 1152O021CA Photo Mode The copier can make a faithful reproduction of an original having Auto halftone images such as photos. Photo The image density of the photo may be varied in nine steps. Lighter Darker Auto/Photo 1152O020CA EP1054...
Page 40: Selecting The Auto Exposure Mode
The exposure level in the Auto Exposure Mode can be varied by using the User’s Choice, see page 4-7. The copier has been factory-set to automatically select the Auto Exposure Mode. The User’s Choice can be used to change this default setting to the Manual Exposure Mode, see page 4-8. 3-10 EP1054...
Page 41: Book Copying
Not positioning an open book properly will result in copies with pages in incorrect order. è Do not look directly at the Original Glass surface, as a very intense beam of light can be emitted. Press the Book Key. The Book Indicator lights up. Book EP1054 3-11...
Page 42 Paper the corresponding Paper Size Indicator blink on the Control Panel. è In such a case, load paper of the same size and in the same direction of each page of a book into the Drawer. A4 Crosswise 3-12 EP1054...
Page 43: Manual Bypass Copying
Thick paper, translucent paper: Approx. 20 sheets OHP transparencies: Up to 5 sheets IMPORTANT è When making multiple copies using OHP transparencies, set the Copy Tray into the upper position if there is no Sorter or Staple Sorter mounted. EP1054 3-13...
Page 44: Using The Manual Bypass Tray
Place the original on the Original Glass and make the control panel settings. Swing down the Multi Bypass Tray and slide the Paper Guide Plate to the size of the copy paper. NOTE è Pull out the Multi Bypass Tray Extender if you are using larger paper. 3-14 EP1054...
Page 45 Press the Start Key to start the copy cycle. 1139O2360A NOTES è Do not insert the paper while the copier is in the warm-up cycle or a multi-copy cycle. è The Auto Size and Book Copying Mode cannot be selected for manual bypass copying. EP1054 3-15...
Page 46 Making Copies 3-16 EP1054...
Page 47: Auxiliary Functions
Auxiliary Functions Auxiliary Functions Checking the Total Number of Copies Mode This function allows you to check the total count of the two counters of the copier. Meter Count Toner Drum Dehumidify 1142O152CA Types of Counters Total Counter: Shows the total number of copies made since the installation of the copier.
Page 48: Using The Meter Count Function
Auxiliary Functions Using the Meter Count Function Press the Meter Count Key once. The count of the Total Counter is Meter Count shown across the Zoom Ratio Indicator and Multi-Copy Display. Toner Drum Dehumidify Press the Meter Count Key again. The count of the Size Counter is Meter Count shown across the Zoom Ratio...
Page 49: Toner Replenisher Function (Increasing The Image Density)
Auxiliary Functions Toner Replenisher Function (Increasing the Image Density) The copier tends to exhaust the supply of toner rapidly when making a number of copies from an original with dark solid Meter Count areas. As a result, the image density of the copy will become lighter.
Page 50: Drum Dehumidifier Function
Auxiliary Functions Drum Dehumidifier Function During times of high humidity or when there are sudden rapid changes in humidity (especially when you are Meter Count using a heater in winter), condensation could form on the Toner surface of the PC Drum , resulting in Drum Dehumidify blotchy copies.
Page 51 Auxiliary Functions NOTE è The copier cannot be set into the Drum Dehumidifier Mode while it is warming up. EP1085...
Page 52: User's Choice
Auxiliary Functions User’s Choice The copier has been set so that the most frequently used settings are automatically selected in the initial mode. The User’s Choice allows you to 50%~200% select the default settings which are 141% automatically selected in the initial 115% 100% @ @ @...
Page 53 Auxiliary Functions U-13 Default auto exposure level Determines the default exposure level in the Auto Exposure Mode. Setting Description Initial Setting Low, level 4 Low, level 3 Low, level 2 Low, level 1 Standard High, level 1 High, level 2 When the exposure level is “Low,”...
Page 54 Auxiliary Functions U-14 Default exposure mode/level Determines the default exposure mode, either Auto or Manual, selected when the control panel settings are reset. If Auto is selected, this function also allows you to specify the default exposure level (EXP) in the Manual Exposure Mode, after the Auto Exposure Mode has been canceled.
Page 55 Auxiliary Functions With EXP5 at the central level, the exposure level is lower as the number becomes smaller, and it is higher as the number becomes greater. 1 2 3 4 5 6 7 8 9 Lighter Darker Auto/Photo U-20 Auto Panel Reset ON/OFF Selects whether to activate the Auto Panel Reset function 60 seconds after a copy cycle has been completed or a control panel key has been pressed.
Page 56 Auxiliary Functions U-21 Energy Saver ON Timing Select whether or not to set the copier into the Energy Saver mode after the lapse of a given period of time after a copy cycle has been completed or a key on the control panel has been operated. The period of time can fall within the range of 1 to 98 min., or be set to 240 min.
Page 57: Making The User's Choice Mode Settings
Auxiliary Functions Making the User’s Choice Mode Settings Keep pressing the Panel Reset Key for about 3 seconds. [U] appears on the Zoom Ratio Indicator, and the indicator on the Multi-Copy Display goes out. Panel Reset 1139O4782A Zoom Ratio Multi-Copy Indicator Display 1139O3850A...
Page 58 Auxiliary Functions Press the Clear Key. This clears the current setting. 1142O169AA Zoom Ratio Multi-Copy Indicator Display 1139O3860A Using the Key Pad, enter the new setting. The Multi-Copy Display shows the new setting. For the Choice Code see page 4-6. Zoom Ratio Multi-Copy 1142O171AA...
Page 59 Auxiliary Functions Press the Panel Reset Key. Panel Reset This allows the copier to leave the User’s Choice Mode and the control panel shows the default settings again. 1139O4782A NOTE è If the Choice Code number on the Zoom Ratio Indicator or codes on the Multi-Copy Display start blinking when the Start Key is pressed following step 2 or 5, that entry is invalid.
Page 60 Auxiliary Functions 4-14 EP1085...
Page 61: When An Indicator Lights Up
When an Indicator Lights Up When an Indicator Lights Up Quick Reference for Indicator Lights Meter Count Toner FLS. Paper 50%~200% Drum Dehumidify Inch Auto 141% Photo Book 115% 100% @ @ @ Full Size Lighter Darker Auto/Photo 100% When the copier encounters any of the following conditions, a corresponding warning indicator lights up.
Page 62: Detailed Instructions For Indicator Lights
When an Indicator Lights Up Detailed Instructions for Indicator Lights Add Toner Indicator The Add Toner Indicator lights up when toner in the Toner Bottle is running out. Once the Indicator lights up, replace the Toner Bottle with a new one as soon as possible by following the procedure given below.
Page 63 When an Indicator Lights Up With the Seal on the Toner Bottle facing up, slowly peel off the Seal as illustrated. NOTE è Be careful, some toner may puff out from the bottle. Ensuring that the arrows ( ) on the Toner Bottle are facing you, insert the Bottle into position.
Page 64: Add Paper Indicator
When an Indicator Lights Up Add Paper Indicator When the Drawer or the Multi Bypass Tray has run out of paper, the Add Paper Indicator lights up. At this time, Paper you cannot start a new copy cycle Use the following procedure to load paper into the Drawer or the Multi Bypass Tray.
Page 65: Adding Paper (Multi Bypass Tray)
When an Indicator Lights Up Slide the Edge Guides tightly up against the paper. Gently slide the Drawer back in. NOTE è When loading Inch Size paper into the Drawer, flip the Marketing Area Switch located in the rear left corner of the Drawer to “Inch”.
Page 66: Closure Failure Indicator
When an Indicator Lights Up Closure Failure Indicator The Closure Failure Indicator lights up if a copier door is left open, or an option is not attached properly. The Monitor Display shows the location of the closure failure. At this time, you can no longer start a new copy cycle.
Page 67: Misfeed Indicator
When an Indicator Lights Up Misfeed Indicator If a paper misfeed occurs during a copy cycle, that copy cycle stops. The Mis- feed Indicator lights up and the Monitor Display shows the location. At this time, you cannot start a new copy cycle. Misfeed Clearing Procedure NOTE è...
Page 68 When an Indicator Lights Up Remove any sheet of paper from the Transport Section. Open the Right Door. Then pull out the sheet of paper from the Manual Bypass Port. Pull out the sheet of paper from the Paper Take-Up Section. Close the Right Door.
Page 69 When an Indicator Lights Up Slide out the Drawer and unload the paper from the Drawer. Next, push down the Paper Lifting Plate until it is locked into position. Fan the paper and reload it. NOTE è Make sure that the paper stack rests under the two catches of the Drawer.
Page 70: Call-Tech.-Rep. Indicator
When an Indicator Lights Up Call-Tech.-Rep. Indicator Meter Count Toner FLS. Paper 50%~200% Drum Dehumidify Inch Auto 141% Photo Book 115% 100% Full Size @ @ @ Lighter Darker Auto/Photo 100% When a malfunction occurs in the copier, the Call-Tech.-Rep. Indicator lights up and the corresponding malfunction code appears across the Zoom Ratio Indicator and Multi-Copy Display.
Page 71: I.u. Service Life Indicator Lights Up
When an Indicator Lights Up I.U. Service Life Indicator Lights Up When the time is about to come when the Imaging Unit needs replacement, the I.U. Service Life Indicator starts blinking to prompt you to replace it with a new one. 1142O174CA Replace the Imaging Unit by following the procedure given below.
Page 72: Precautions For Handling
When an Indicator Lights Up Precautions for Handling Do not leave the I. U. in a bright place. Do not store the I. U. in a hot place of 40°C (104°F) or more. Do not store the I. U. in a humid place or subject to water splash.
Page 73: Removing The I. U. From The Copier
When an Indicator Lights Up Removing the I. U. from the copier Open the Front Door. Turn the Lock Release Lever counterclockwise to swing up the Upper Half of the copier. Turn the I. U. Lock Release Lever and, while holding it down, pull the I. U.
Page 74: Unpacking The I. U
When an Indicator Lights Up Unpacking the I. U. Peel off the tape and open the Box. Starter Bottle Take the Starter Bottle and the I. U. in its bag out of the Box. I. U. Setting up the I. U. Take the I.
Page 75 When an Indicator Lights Up Carefully pull the polyester tape from the I. U.. Remove the Cap from the I. U. and re-fit it to the used I. U. as shown in the illustration. Align the I. U. with the rails in the copier.
Page 76: Charging The Copier With Starter And Toner
When an Indicator Lights Up NOTE è An improperly installed I. U. could be a cause of copier malfunction. Lower the Upper Half of the copier and push it into the locked position by pushing down on the portion marked with “Push Down Here Only”.
Page 77 When an Indicator Lights Up Peel off the tape from the Starter Bottle. Align the markings on the Starter Bottle with the upper side of the Bottle Holder and slide the Bottle into position. NOTE è Insert the Bottle all the way into the copier until the marking on the Bottle is aligned with the marking on the Bottle Holder.
Page 78 When an Indicator Lights Up The copier automatically starts the charging cycle for approximately 5 minutes. è During this cycle, do not open the Front Door. During this cycle, six segments of the ones digit LED on the Magnification Ratio Indicator forming a “0”...
Page 79 When an Indicator Lights Up Hold the Toner Bottle so that its tab is on the upper side, shake it well and peel off the tape. Once the tape has been removed, hold the Bottle so that its toner port faces up.
Page 80 When an Indicator Lights Up 5-20 EP1085...
Page 81: Troubleshooting
Glass is dirty. with a soft dry cloth, see page 8-3. The original is not held tightly on Place the original in position so the Original Glass. that it is held tightly against the Original Glass, see page 3-4. EP1054...
Page 82 100%.) page 3-4. The reduction ratio selected is Select the zoom ratio according not in accordance with the copy to the copy paper size, see page paper size. (When doing manual 3-7. reduction copying.) EP1054...
Page 83: The Copier Is Not Functioning As Designed
Plug the power cord into the when the Power Switch is into the power outlet? power outlet. turned ON. Is the room circuit breaker Close the room circuit open? breaker. Turn the copier OFF immediately, unplug the power cord, and call your Technical Representative. EP1054...
Page 84 Troubleshooting EP1054...
Page 85: Specifications
(approx. copies/minute) Full size (100%) A3L: 12 B4L: 13 A4L: 15 A4Y: 15 Zoom Ratios Fixed ratios Full size: 1:1±0.5% Reduction Ratios: 50%, 70%, 81% Enlargement Ratios: 115%, 141%, 200% Zoom ratios: From 50% to 200% in 1% increments EP1054...
Page 86: Multi Bypass Tray Mb-4
Thick paper: weighing 90g/m to 157g/m OHP Transparencies Translucent paper Paper Size Standard: A3L to A6L Non-standard: Crosswise: 100mm to 297mm Lengthwise: 140mm to 432mm Power Source DC24V supplied from copier Power Consumption 30W or less Weight 2.7 kg EP1054...
Page 87: Miscellaneous
Is the Glass cracked or chipped? Original Cover, Automatic Document Feeder Item Action Is the Original Pad dirty? Clean the Pad using the procedure given in “Cleaning”, see page 8-2. Is the Original Pad scratched? Call your Technical Representative. EP1054...
Page 88: Copy Paper
Wipe the surface of the Housing clean with a soft cloth dampened with mild home detergent. Original Pad Raise the Original Cover. Wipe the surface of the Original Pad clean with a soft cloth dampened with mild home detergent. EP1054...
Page 89: Original Glass
è NEVER use a glass cleaner or any other detergent to avoid damage to the control panel keys and display. Front Door Swing down the Front Door. Wipe the inside of the Front Door clean with a soft cloth. EP1054...
Page 90: Corona Units
Gently slide the Cleaning Lever back into the original position. Gently slide out the Lower Corona Unit Cleaning Lever as far as it will Gently slide the Cleaning Lever back into the original position. Repeat steps 2 to 5 two to three times. EP1054...
Page 91: Paper Size And Zoom Ratio Table
8-1/4” x 11-3/4” 8-1/4” x 11-3/4” 210mm x 301mm LETTER 8-1/2” x 11” 216mm x 279mm GOVERNMENT 8” x 10-1/2” 203mm x 267mm LETTER QUARTO 8” x 10” 203mm x 254mm STATEMENT INVOICE 5-1/2” x 8-1/2” 140mm x 216mm EP1054...
Page 92: Zoom Ratio Table (Original Size To Copy Paper Size)
5-3/4” x 8-1/4” x 1.414 x 2.000 x 1.733 x 1.224 x 2.000 105 x 148mm x 1.414 4-1/4” x 5-3/4” x 1.733 x 1.224 x 0.816 257 x 364mm x 0.577 10” x 14-1/4” x 0.707 x 0.500 x 1.154 EP1054...
Page 93 0.500 11” x 14” Legal x 0.772 279.4 x 355.6mm Foolscap x 0.772 Letter x 0.772 Invoice x 0.500 Legal Legal x 0.928 8-1/2” x 14” Foolscap x 0.785 215.9 x 355.6mm Letter x 0.607 Invoice x 1.214 EP1054...
Page 94 11” x 17” x 1.294 215.9 x 279.4mm 11” x 14” x 1.272 Invoice 11” x 17” x 2.000 5-1/2” x 8-1/2” 11” x 14” x 1.647 139.7 x 215.9mm Legal x 1.545 Foolscap x 1.529 Letter x 1.294 EP1054...
Page 95 Drum Dehumidifier Function ................4-4 Energy Saver Mode ..................2-12 Energy Saver ON Timing .................4-10 Enlargement .......................3-8 Enlargement Ratios ....................3-8 Fixed Zoom Ratios .....................3-7 Full Size ......................3-8 Full Size Copy ....................3-8 I. U. Service Life Indicator ................ 2-9 5-11 Initial Mode .......................2-13 EP1054 IX-1...
Page 96 Replacing the Toner Bottle ................5-2 Size Counter ...................... 4-1 Toner Replenisher Function ................4-3 Toner, Add ......................5-2 Total Counter ..................... 4-1 Total Number of Copies Mode ................4-1 User’s Choice ....................4-6 Zoom Ratio ......................3-7 Zoom Ratio Table ....................8-6 IX-2 EP1054...
