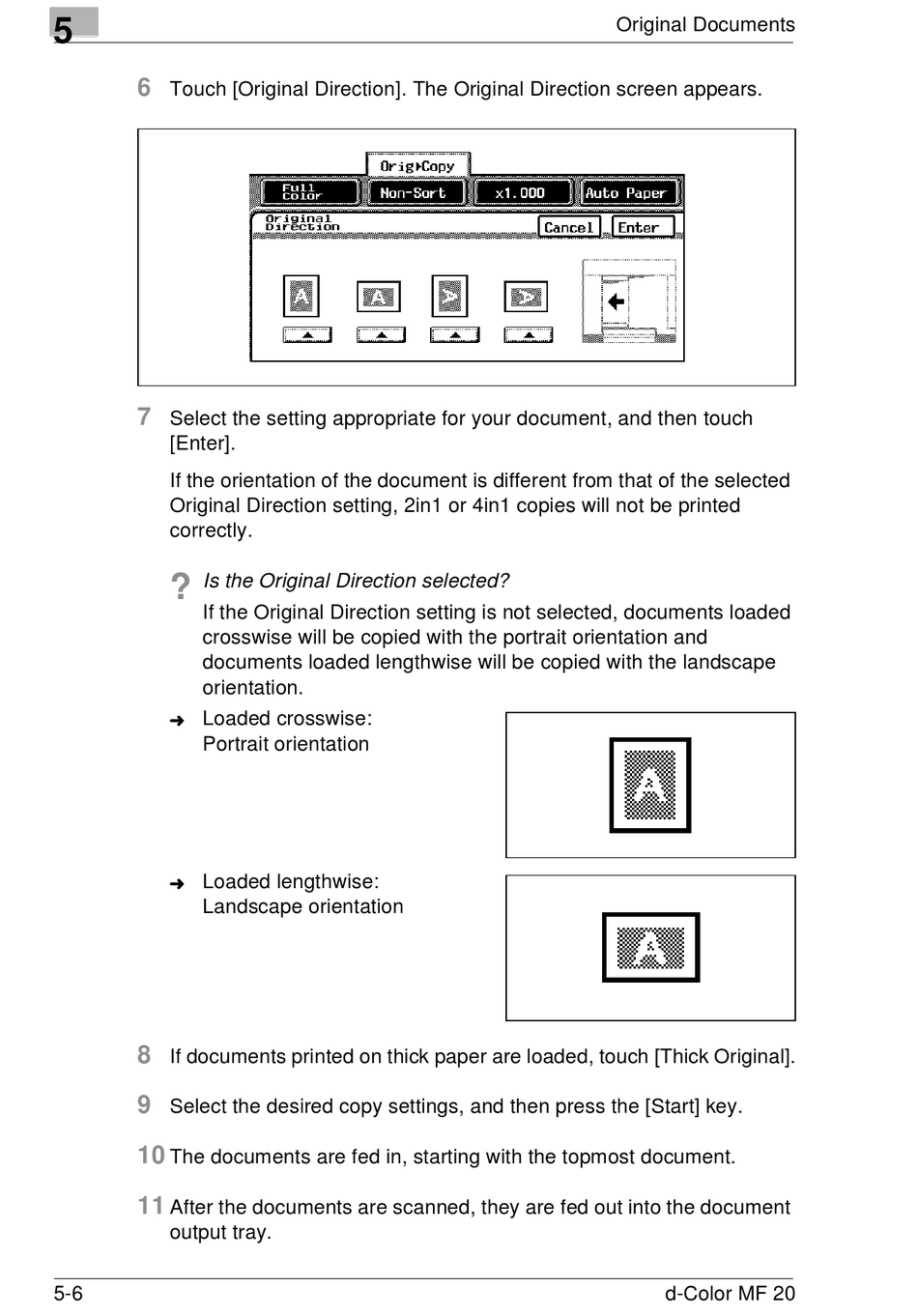

Minolta d-Color MF 20 Manual page 92

5
6
Touch [Original Direction]. The Original Direction screen appears.
7
Select the setting appropriate for your document, and then touch
[Enter].
If the orientation of the document is different from that of the selected
Original Direction setting, 2in1 or 4in1 copies will not be printed
correctly.
? Is the Original Direction selected?
If the Original Direction setting is not selected, documents loaded
crosswise will be copied with the portrait orientation and
documents loaded lengthwise will be copied with the landscape
orientation.
§ Loaded crosswise:
Portrait orientation
§
Loaded lengthwise:
Landscape orientation
8
If documents printed on thick paper are loaded, touch [Thick Original].
9
Select the desired copy settings, and then press the [Start] key.
10
The documents are fed in, starting with the topmost document.
11
After the documents are scanned, they are fed out into the document
output tray.
5-6
Original Documents
d-Color MF 20
