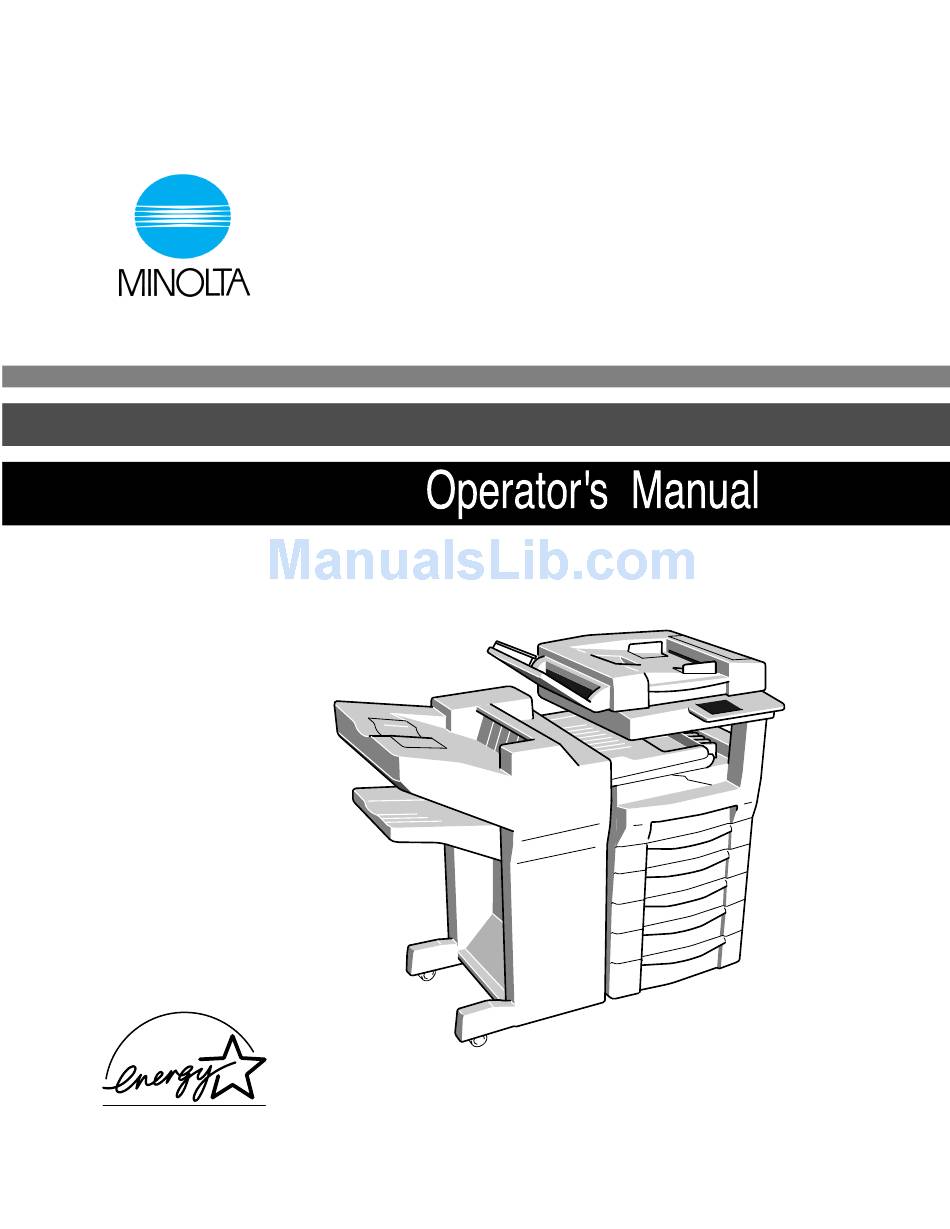

  • Page 1 1171-7704-03 Di250/Di350...
  • Page 3 Therefore, using less paper also means decreased national energy consumption. Recycled Paper (USA market only) Your Minolta Copier has been designed to use the following Recycled Paper: Minolta Recycled Bond Item No. 8925 701...
  • Page 5 Using the Copier Properly To ensure the optimum performance of the copier, follow the precautions listed below. • Never place a heavy object on the copier. • Never subject the copier to shocks. • Never open any doors or turn the copier off while the copier is making copies. •...
  • Page 6 Using the Copier Properly • Never use a multiple outlet adapter, as a fire or electrical shock can result. • Should the power cord become damaged, immediately turn the copier off, unplug the power cord and call your technical representative. A damaged cord can result in a fire or cause an electric shock.
  • Page 7 Thank you for choosing Minolta quality. For over 30 years Minolta has been a leader on the forefront of office equipment technology and service. Our desire has always been to bring you highly reliable products. We pledge to continue to provide you, our customer, with our state of the art equipment, as well as full customer service for all our products.

  • Page 8: Table Of Contents

    1. Typical Copies You Can Make With Your Copier Typical Copies You Can Make With Your Copier ......... 2-2 2. System Overview System Overview .................... 2-6 Di250 and Options ..................2-6 Di350 and Options ..................2-8 Copier Accessories ..................2-10 Outside the Copier ..................2-12 Inside the Copier ...................2-13...
  • Page 9 Contents 3. Selecting the Zoom Zoom Ratio ....................3-10 4. Selecting the Finishing Finishing Functions ..................3-16 Selecting the Finishing Function ..............3-18 Loading the Originals ................... 3-21 5. Selecting the Original Copy Type Original Copy Types ................. 3-22 Selecting the Original Copy Type ............. 3-26 6.
  • Page 10 Contents Chapter 5 When a Message Appears 1. When the Message “The current Paper Drawer is empty.” Appears Adding paper ....................5-2 2. When the Message “Add Toner.” Appears Replacing the Toner Bottle ................5-10 3. When the Message “Please change Imaging Unit.” Appears Changing the Imaging Unit ................5-12 4.

  • Page 11: Terms And Symbols For The Type Of Originals And Copy Paper

    Terms and Symbols for the Type of Originals and Copy Paper A few special terms and symbols are used in this manual to designate types of originals and copy paper. This page explains about these terms and symbols. Feeding Direction (copy paper path) In this copier system, copy paper is taken up from the right-hand side of the copier, fed through the copier toward the left-hand side, and ejected face down onto the Copy Tray.

  • Page 12: Safety Information

    Safety Information Laser Safety This is a digital machine which operates by means of a laser. There is no possibility of danger from the laser, provided the machine is operated according to the instructions in this manual. Since radiation emitted by the laser is completely confined within protective housing, the laser beam cannot escape from the machine during any phase of user operation.

  • Page 13: Laser Safety Label

    A laser safety label is attached to the outside of the copy machine as shown below. Manufacturer’s Name Plate Laser safety label For United States MINOLTA CO., LTD 2, Higashiakatsuchi, Yawata-cho, Toyokawa-shi Aichi-ken 442-8585, Japan 2($ MANUFACTURED: THIS PRODUCT COMPLIES WITH 21 CFR CHAPTER I, SUBCHAPTER J.
  • Page 15 Chapter 1 6DIHW\1RWHV...

  • Page 16: Installing The Copier

    1. Installing the Copier Installation Site To ensure utmost safety and prevent possible malfunctions of the copier, install it in a location which meets the following requirements. A place away from a curtain or the like that may catch fire and burn easily. An area where there is no possibility of being splashed with water or other types of liquid.

  • Page 17: Precautions For Use Operating Environment

    2. Precautions for Use Operating Environment The operating environmental requirements of the copier are as follows. Temperature : 10°C to 32°C (50°F to 89.6°F) with a fluctuation of 10°C (18°F) per hour. Humidity : 15% to 85% with a fluctuation of 20% per hour. Using the Copier Properly To ensure the optimum performance of the copier, follow the precautions listed below.

  • Page 18: Note On Making Multiple Copies

    2. Precautions for Use Note on making multiple copies If you make smaller than Legal size copies during a multi-copy cycle, there is a possibility that the copying speed will be reduced due to a rise in fusing temperature. The copying speed will automatically return to normal when the optimum fusing temperature is re-established.
  • Page 19 Chapter 2 *HWWLQJWR.QRZ<RXU&RSLHU...

  • Page 20: Typical Copies You Can Make With Your Copier

    1. Typical Copies You Can Make With Your Copier Typical Copies You Can Make With Your Copier Here’s a sample of the features the copier is equipped with to turn out different types of copies. For the specific operations, see the relevant pages indicated by Original Copy p.
  • Page 21 1. Typical Copies You Can Make With Your Copier Mixed Original Detection p. 2-24 Mixed Original Detection 2$$ Finishing p. 3-16 Sort Staple 2$$ 2$$ Group Hole Punch 2($ 2$$ Zoom Ratio p. 3-10 Reduce, Full size, Enlarge, X/Y Zoom 2$$...
  • Page 22 1. Typical Copies You Can Make With Your Copier Auxiliary Functions Cover p. 3-34 Page Insertion p. 3-36 2$$ 2$ OHP Interleaving p. 3-40 File Margin p. 3-44 2$& 2$$ Erase p. 3-46 Image Repeat p. 3-48 2$$ 2$$...
  • Page 23 1. Typical Copies You Can Make With Your Copier Distribution p. 3-50 Separate Scan p. 3-52 2$$ 2$$ Small Original Adjustment p. 3-51 2$$...

  • Page 24: System Overview

    The following overview presents the copier and the available options with a brief explanation of the function of each. Refer to “Control Panel Keys and Indicators” ( p. 2-14) for using the Touch Panel and Control Panel. Di250 and Options 2$$ Original Cover <Option>...
  • Page 25 2. System Overview Duplexing Document Feeder AFR-14 <Option> In addition to the automatic feeding of multiple originals, it can automatically turn over 2-sided originals for making 2$$ copies of both sides. Duplex Unit AD-10 <Option> Automatically turns over 1-sided copies to make 2-sided copies.

  • Page 26: Di350 And Options

    2. System Overview Di350 and Options 2$$ Original Cover <Option> Holds the original in position on the Original Glass. 2$$ Automatic Document Feeder AF-7 <Option> Performs automatic feeding of multiple originals. 2$$ Finisher FN-100 <Option> Permits sorting, grouping, punching or sort-stapling copies.
  • Page 27 2. System Overview Duplexing Document Feeder AFR-14 <Option> In addition to the automatic feeding of multiple originals, it can automatically turn over 2-sided originals for 2$$ making copies of both sides. Paper Feed Unit PF-108 <Option> Holds up to 500 sheets of paper. 2$$ Paper Feed Unit PF-110 <Option>...

  • Page 28: Copier Accessories

    2-10 2. System Overview Copier Accessories 2$% 2$$ 2$& 2$$ Automatic Document Feeder Print Lamp : Lights up green when scanning. Lights up red when there is trouble. Document Guide Plate : Slide the guide plate to the size of the originals. Document Feed Tray : Load the originals face up on this tray.
  • Page 29 2-11 2. System Overview Shift Tray Shift Tray : Receives sorted copy sets by shifting. Job Tray Job Tray : Receives copied paper. Duplex Unit Lock Release Lever : Use to open the Duplex Unit for clearing a misfed sheet of paper. Drawer Drawer : Load the paper into these drawers.

  • Page 30: Outside The Copier

    2-12 2. System Overview Outside the Copier 2$% Control Panel : Set the various functions of the copier. p. 2-14 Non-Sort Exit Tray : Unsorted copies are fed out here. Power Switch : Use to turn the copier ON and OFF. p.

  • Page 31: Inside The Copier

    2-13 2. System Overview Inside the Copier 2$$ Pinch Lever : Pull up for clearing misfed paper. p. 5-16 Green Hooks : Use to slide out the Imaging Unit. p. 5-16...

  • Page 32: Control Panel Keys And Indicators

    2-14 3. Control Panel Keys and Indicators Control Panel Keys and Indicators Access 2(% Touch Panel Interrupt Key • Shows various screens and messages. • Press to interrupt a current job with a p. 2-15 different one. Press it again to return to the previous job.

  • Page 33: What Is The Touch Panel

    2-15 3. Control Panel Keys and Indicators What is the Touch Panel? The Touch Panel is the screen through which you can select or register the various settings of the machine by touching the keys on the screen. * Some of the Touch Panel screens used in the Operator’s Manual may be different from what you actually will see on your machine.
  • Page 34 2-16 3. Control Panel Keys and Indicators Message Display Shows the current copier status, operating instructions, precautions and other data including the number of copies selected. 3(% ex.) Add paper Basic Function / Key Display Shows the basic function keys that can be selected to set the corresponding basic function.

  • Page 35: Icons

    2-17 3. Control Panel Keys and Indicators Icons Icon Description Copying Now copying. Printing Now printing. Print Waiting Processing the next print job. Receiving Data Receiving the data. Data remains Data remains in memory. Paper empty Add paper. p. 5-2 Toner is running out.

  • Page 36: Turning On And Off And Initial Mode

    2-18 Turning ON and OFF and Initial Mode Turning ON and OFF • Turning the Copier ON Press the Power Switch to the (ON) position. • Turning the Copier OFF Press the Power Switch to the (OFF) position. NOTE The Auto Shut OFF function will automatically shut down the copier a given period of time after the last activity.

  • Page 37: Placing Originals

    2-19 5. Placing Originals Using the Document Feeder The Document Feeder automatically feeds original sheets placed on the Document Feed Tray one by one. After the copy cycle has been completed, it automatically ejects the original onto the Document Exit Tray.
  • Page 38 2-20 5. Placing Originals Loading the Originals Slide the Document Guide Plate to the size of NOTES the originals. • The maximum number of originals that can be <Duplexing Document Feeder> loaded Duplexing Document Feeder: Up to 50 Automatic Document Feeder: Up to 70 •...
  • Page 39 2-21 5. Placing Originals Using the Single Automatic Document Feeding Mode (SADF Mode) This is the mode in which you insert your originals one by one into the Duplexing Document Feeder to make a copy. When you insert the original into the Single Document Feed Tray, the copier automatically starts the copy cycle.

  • Page 40: Placing Originals On The Glass

    2-22 5. Placing Originals Placing Originals on the Glass Different methods are used to place the original depending on its type. Use the procedure appropriate for your original. If you are using a Document Feeder, see p. 2-19 Sheet Originals Highly Transparent Originals <Using originals not suitable for the document <Using transparencies and translucent paper for...
  • Page 41 2-23 5. Placing Originals Making Copies from A Book Using Book Copy Mode <“Book” refers to an open bound original> Place the open book so that its top edge is at Instructions for Original Placement the rear of the copier and the center of the •...

  • Page 42: Mixed Orig. Detection

    2-24 5. Placing Originals Mixed Orig. Detection <Only when the Duplexing Document Feeder is mounted> The Mixed Original Detection function enables making copies automatically from originals of assorted sizes loaded on the Document Feeder. Legal Legal Letter Letter 11"X17" 11"X17" Auto Paper Letter Letter...

  • Page 43: Auxiliary Functions

    2-25 6. Auxiliary Functions Auxiliary Functions Panel Resetting Mode Check The Panel Reset key resets all control panel By pressing the Mode Check key on the control settings to default settings including the number of panel, you can either check for or change or store copies and zoom ratio.
  • Page 44 The time for the copier to enter the Energy Save p. 4-6 Mode can be selected as shown below. From 1 to 240 min. for Di250 From 15 to 240 min. for Di350 For details, see User’s Choice. p. 4-6...
  • Page 45 2-27 6. Auxiliary Functions <Entering the Access Number> Access Number From the 10-key Pad, enter the access If an access number has been programmed, it number and press the Access Mode key. allows only particular persons to use the copier or a supervisor to keep track of the number of copies made by a particular department.
  • Page 46 2-28 6. Auxiliary Functions To Stop Printing Press the Stop Key while data is being processed or printed out. The screen below appears and you can choose whether to delete the data or not. 3&%...
  • Page 47 Chapter 3 0DNLQJ&RSLHV...

  • Page 48: Basic Copying Overview

    1. Basic Copying Overview Basic Copying Overview × One of the most basic copying jobs is to make full-size ( 1.000) copies of the original. • Place the original in position (step 1), set the number of copies to be made (step 8), and press the Start key (step 9).
  • Page 49 8. Setting the number of copies. • From the 10-Key Pad, set the desired number of copies to be made. The maximum number that can be set: 99 for Di250 999 for Di350 Useful Tip The maximum number of copies is not limited in the initial setting.

  • Page 50: Selecting The Paper

    2. Selecting the Paper In the following pages, we explain how to select the copy paper. Touch Basics Paper to show a screen which allows you to select the copy paper. 3(% Copy Paper Size Auto Paper In the Auto Paper mode, the copier automatically NOTES selects the paper of the optimum size according to •...
  • Page 51 2. Selecting the Paper Manual Selection Auto Drawer Switching The copy paper size can be set manually according If the drawer currently selected for use runs out of to your need. paper and there is another drawer loaded with paper of the same size and in the same direction, Paper Touch on the Basics screen and the...
  • Page 52 2. Selecting the Paper Special Paper Setting If the symbol appears on the paper select key on the Touch Panel, it means that particular drawer has been designated for special paper. 3(% The copier provides three different types of special paper setting, each having a specific purpose as detailed below.

  • Page 53: Manual Bypass Copying

    2. Selecting the Paper Manual Bypass Copying • Use the Manual Bypass to make copies on paper not loaded in any drawer, or to copy onto OHP transparencies, thick paper, or any other special paper. • When using the Manual Bypass Tray, you can load only one sheet of copy paper at a time. Copy Paper that Can be Used for Manual Bypass Tray Types of Paper •...
  • Page 54 2. Selecting the Paper <Using Metric Size Paper> Select the desired copy paper size. When you want to use metric size paper, touch Metric on the screen given in step 4 and you have a screen that allows you to select a metric paper size.
  • Page 55 2. Selecting the Paper <Using Nonstandard Size Paper> <Changing the Paper Size> • When you use a nonstandard size paper, touch • Touch Paper Bypass Custom Size on the screen given in step 4 and you have the following screen. 3(% •...

  • Page 56: Selecting The Zoom Zoom Ratio

    3-10 3. Selecting the Zoom Zoom Ratio In the following pages, we explain how to select the zoom ratio. When you touch Zoom on the Basics screen on the Touch Panel, a screen appears that allows you to set the zoom ratio. Set the zoom ratio according to your need.
  • Page 57 3-11 3. Selecting the Zoom For a Slightly Smaller Image Using Zoom Up/Down Keys This function lets you make a copy slightly Pressing the key changes the reduced in image size from that of the original. zoom ratio in 0.001 increments. You can hold down the key to change the ratio quickly.
  • Page 58 3-12 3. Selecting the Zoom Using the 10-Key Pad You may use the 10-Key Pad to directly enter the zoom ratio. <Same ratio for X and Y> <Using the X / Y Zoom> Custom Zoom Custom Zoom Touch Touch 3(% 3(% X / Y Zoom Enter the desired zoom ratio from the 10-Key...
  • Page 59 3-13 3. Selecting the Zoom Calling up a Ratio from Memory You can store some of the most frequently used zoom ratios in memory and recall them later as necessary. Custom Zoom Touch 3(% From among the two ratios previously stored in memory, select the desired one.
  • Page 60 3-14 3. Selecting the Zoom Storing a Ratio in Memory Touch Custom Zoom Useful Tips × Example: 1.300 Press 1, 3, 0, and 0, in that order. 2%$ • To correct a ratio, press the key and then enter the correct one again. •...
  • Page 61 3-15 3. Selecting the Zoom...

  • Page 62: Selecting The Finishing

    3-16 4. Selecting the Finishing In the following, we explain about different finishing functions and setting procedures. When Finishing is touched on the Touch Panel, a screen appears that allows you to set a particular finishing function. Finishing Functions Non-Sort •...
  • Page 63 3-17 4. Selecting the Finishing Staple <Only when the Finisher or Mailbin Finisher is mounted> • This function is effective when making multiple copies from multiple originals. Copies are sorted or grouped into complete sets of the originals and then stapled. Staple Touch NOTE...

  • Page 64: Selecting The Finishing Function

    3-18 4. Selecting the Finishing Selecting the Finishing Function Sort/Group Touch the desired finishing function key. Useful Tips • Shift Sorting The sorted copy sets are stacked in the same direction, but in a sawtooth manner by shifting the tray to the front or rear for each set.
  • Page 65 3-19 4. Selecting the Finishing Staple Touch the desired finishing function key. 3(% Touch Staple 3(% NOTES • Stapling is not possible in the Interrupt mode. • No Stapling takes place in Non-Sort mode. • Note the correct direction of the originals when making copies in the Staple Mode.
  • Page 66 3-20 4. Selecting the Finishing Hole Punch Touch the desired finishing function key. Touch the desired hole-punching position. 3(% 3(% Touch Hole Punch Useful Tip If you do not select a hole-punching position, the copier automatically sets the Hole-Punch position according to the original feeding direction.

  • Page 67: Loading The Originals

    3-21 4. Selecting the Finishing Loading the Originals Staple Note the correct direction of the originals if the copies are to be stapled in Staple Mode. Duplexing Document Feeder Automatic Document Feeder Original Glass Staple Position Staple Position Staple Position 2$$ 2$% 2$%...

  • Page 68: Original Copy Types

    3-22 5. Selecting the Original Copy Type In the following pages, we shall look at how to make the settings for the type of copy you want to make from the type of original you have. When you touch Orig. Copy on the Touch Panel, a screen appears that allows you to set the orig.
  • Page 69 3-23 5. Selecting the Original Copy Type <With Document Feeder> <Only for Di350 with Document Feeder> Select 1 1 [4in1] <accessed via Booklet> Select 2 1 [4in1] <accessed via Booklet> to copy 4 different 1-sided originals onto one side to copy 2 different 2-sided originals (4 pages) onto of a single sheet of paper.
  • Page 70 3-24 5. Selecting the Original Copy Type Select Book/Separation 1 <accessed via Book> <With Duplex Unit> to make 1-sided page-by-page copies of an open Select Book/Separation 2 <accessed via Book> book. to make a 2-sided copy of an open book. Each page of the open book will be copied onto one side of the copy.
  • Page 71 3-25 5. Selecting the Original Copy Type Precaution for 2-sided Original • When making copies from 2-sided originals with the Automatic Document Feeder, scan the first side of the original stack, then turn the stack over (from left to right) and load the stack into the tray to copy the other side.

  • Page 72: Selecting The Original Copy Type

    3-26 5. Selecting the Original Copy Type Selecting the Original Copy Type Using 1 or 2 Originals Original Direction Load the Originals. Touch Select the Original Type. 3&& Select the position of the original. 3&& Select the desired copy type. 3&&...
  • Page 73 3-27 5. Selecting the Original Copy Type Margin key for the original: Hold down the key until the When you’re going to make copies using 1 2 or desired margin width is reached. 1, first check to see if your original has a file margin in it.
  • Page 74 3-28 5. Selecting the Original Copy Type Book Standard Book Right Bound Touch Position the book on the glass. Select the Original Type. <With Duplexing Document Feeder> Book/Separation • Touch 3(% Touch Separation Spreadsheet 3&& • Touch Book 3(% If you want to erase the four edges or center, Book Erase touch 3(%...
  • Page 75 3-29 5. Selecting the Original Copy Type Frame Center Select the particular erase function Touch , then hold (“Book Erase”). down the key until the desired erase width is reached. Then, Enter touch 3(% 3(% Useful Tips You have a choice of the following three erase Useful Tip functions.
  • Page 76 3-30 5. Selecting the Original Copy Type <To copy using Separation and 2-sided> Page Order • Touch 3(% You have a choice of the following two page arrangements. Book Order 2$$ Standard 2$$ • Select the desired page arrangement. 3(% Enter •...
  • Page 77 3-31 5. Selecting the Original Copy Type 2-in-1 Original Separation <To separate a 1-sided 2-in-1 original> Load the Originals. Select the 1-sided copy type. 2$% NOTE Make sure to set the originals lengthwise. 3(% NOTES Book/Separation Touch • 2-sided copy, 2-in-1, 4-in-1 and Booklet Creation are not available for copying.

  • Page 78: Selecting The Density

    3-32 6. Selecting the Density Image Density In the following pages, we explain how to set the exposure level for the image density. When you touch Density on the Touch Panel, a screen appears that allows you to set the exposure level for the image density.
  • Page 79 3-33 6. Selecting the Density NOTE If Auto Exposure is set when making copies in Photo Mode, the copier automatically switches the mode to Text Mode. Useful Tips • The exposure level in the Auto Exposure mode can be made either “Darker” or “Lighter” by using User’s Choice.

  • Page 80: Auxiliary Functions

    3-34 7. Auxiliary Functions These pages explain about convenient functions offered as the Auxiliary functions and how to set these features. When the Auxiliary key on the Touch Panel is touched, the Auxiliary function menu screen appears. 3&& 3&' Cover <Only when a Document Feeder is mounted>...
  • Page 81 3-35 7. Auxiliary Functions Using the Cover Mode Load your originals into the document Touch the key for Cover Paper. feeder. Touch Cover 3(% Select the drawer in which paper for the cover has been loaded. 3&& Select the key for the front cover. 3(% NOTE 3(%...

  • Page 82: Page Insertion

    3-36 7. Auxiliary Functions Page Insertion <Only for Di350 with a Duplexing Document Feeder> Page Insertion allows you to insert a special sheet of paper (e.g., color paper) into the copy set. Two different functions are available. Select the appropriate one according to your need. Functions Page Insertion <Copied Inserts>...
  • Page 83 3-37 7. Auxiliary Functions Specifying the Place for an Insert In the Page Insertion mode, you must specify where to place an insert by using Automatic Detection. Automatic Detection Put a sheet of paper of a different size from the originals at your desired places in the original set (for convenience, let us call this paper the insert marker), load the original set onto the duplexing document feeder and let the copier start the original count sequence.
  • Page 84 3-38 7. Auxiliary Functions Using Page Insertion Put an insert marker into the desired place in Load the original set containing insert the original set. markers into the duplexing document feeder. Insert Marker Original Set Insert Marker 2$% 2$$ Touch Page Insertion Example 1: To place a copied insert at the 2nd position from top.
  • Page 85 3-39 7. Auxiliary Functions Touch the paper size key for Insert Paper. Press the Start Key to start the simultaneous Auto Detection sequence and scanning of the original set. * The document feeder starts feeding the originals loaded in it to detect the insert markers and to make copies.

  • Page 86: Ohp Interleaving

    3-40 7. Auxiliary Functions OHP Interleaving When you make copies on transparencies, the OHP Interleaving function inserts copied or non-copied interleaves after each transparency. Two different functions are available. Select the appropriate one according to your need. Functions <Copied Interleaves> The copier copies onto OHP transparencies and, after each transparency, inserts a copied sheet of paper.
  • Page 87 3-41 7. Auxiliary Functions Using OHP Interleaving Load the originals. Touch the key for the Insert Paper. 2$$ 2$% 3(% NOTE Select the Insert Paper. If you make each copy through the Original Glass, start with the first page of the set. OHP Interleaving Touch 3(%...
  • Page 88 3-42 7. Auxiliary Functions Enter Select the paper source for OHP Touch transparencies. 3(% 3(% Useful Tip <When using the Manual Bypass Tray> Cancel Touch to cancel the settings made • Load an OHP transparency onto the and return to the initial Auxiliary screen. Manual Bypass Tray.
  • Page 89 3-43 7. Auxiliary Functions...

  • Page 90: File Margin

    3-44 7. Auxiliary Functions File Margin The copier provides a file margin along the leading edge for your ease in filing. There are two different ways available for making a file margin. Use the one that is most suited to your need. Functions The image of the original is shifted to the right to Copy...
  • Page 91 3-45 7. Auxiliary Functions Hold down the key until the desired margin width is reached. 3(% Useful Tips • You can change the margin width in 1/16” increments within the range 0 ~ 3/4”. Cancel • Touch to cancel the settings made and return to the initial Auxiliary screen.

  • Page 92: Edge/Frame Erase

    3-46 7. Auxiliary Functions Edge/Frame Erase The copier erases a margin of a set width along the four edges, or one edge, to erase shadows or other unwanted images. This feature is effective in erasing the communications record on a document received by fax.
  • Page 93 3-47 7. Auxiliary Functions Using a Particular Edge/Frame Erase Function Place the original. Useful Tips • You can change the erase width in 1/16” Edge/Frame Erase Touch increments within the range 1/4” to 3/4”. • Touch Cancel to cancel the settings made and return to the initial Auxiliary screen.

  • Page 94: Image Repeat

    3-48 7. Auxiliary Functions Image Repeat The image of the original is repeatedly produced on the copy paper. The copier automatically calculates the number of images that can be printed based on the copy paper size and zoom ratio. 2$$ Selecting Image Repeat Auto Detect Load the original.
  • Page 95 3-49 7. Auxiliary Functions <Original Size is standard> • Touch Size Input in step 4. Select the size of the original and touch Enter 3(% <Original Size is nonstandard> Size Input • Touch , then touch Custom Size in step 4. 3(% •...

  • Page 96: Distribution

    3-50 7. Auxiliary Functions Distribution A reference (distribution) number is assigned to each copy set and printed in the background of the copy. 2$$ Using Distribution Load the originals. Select the page on which to print the distribution number, First page only All pages either Distribution...

  • Page 97: Small Original Adjustment

    3-51 7. Auxiliary Functions Small Original Adjustment When your original is smaller than the copy paper or when you are making a reduction copy, Small Original Adjustment prevents the areas outside the original from being dirtied on the copy. You will not have a copy with black areas surrounding the image which is made with the Document Feeder raised.

  • Page 98: Separate Scan

    3-52 7. Auxiliary Functions Separate Scan Separate Scan enables the copier to scan a large set of originals in several parts. The Document Feeder can be loaded with up to 50 or 70 pages of a document. If you, however, divide a large document consisting of more than 70 pages so that each part contains 70 or fewer pages, it can still be scanned by the copier.

  • Page 99: Using Memory Recall Memory Recall

    3-53 8. Using Memory Recall Memory Recall After a print cycle has been completed, Memory Recall allows you to run another print cycle again using the same image data and copy settings as the previous one without having to reload the originals. Memory Recall After the first print cycle, touch on the Touch Panel to show a screen that allows you...

  • Page 100: Selecting Job List

    3-54 9. Selecting Job List Job List When an optional Printer Controller is mounted, the Job List key will appear on the Touch Panel. In the following, we explain about the useful functions and procedures in Job List. 3&' Selecting Job List Checking / Delete a Job You can check for operational data and present Useful Tip...
  • Page 101 3-55 9. Selecting Job List Canceling the Lock Canceling the lock will release the data transmitted from a personal computer and put it in the print queue. Enter the password to cancel the lock. Job List Touch 3&' Unlock Touch 3&% Enter the 4-digit password using the 10-key pad.
  • Page 102 3-56 9. Selecting Job List...
  • Page 103 Chapter 4 8VLQJWKH8WLOLW\0RGH...

  • Page 104: Settings In The Utility Mode

    1. Settings in the Utility Mode Input and Setting Screens This chapter explains about the functions and setting screens that are available by using the Utility Key. User’s Choice Job Recall The copier can be set so that the most frequently Up to 10 different, frequently used copy job used settings are automatically selected in the programs can be stored in memory and recalled...
  • Page 105 1. Settings in the Utility Mode Admin. Management Allows the administrator of the copier to make settings for operating and maintaining the copier. “Settings in Admin. Management” p. 4-18 1168P105CB On Line <With an optional Printer Controller> Touch to highlight this key and enable the copier to receive data as a printer.

  • Page 106: Making The User's Choice Settings

    2. Making the User’s Choice Settings The copier has been set so that most frequently used settings are automatically selected in the initial mode. User’s Choice allows you to select the default settings which are automatically selected in the initial mode according to your own needs. By setting defaults that are most frequently used, time and effort to make extra settings will be eliminated when the copier is turned ON or when Auto Panel Reset is activated.
  • Page 107 2. Making the User’s Choice Settings Memory Recall Original Copy Default Select whether to enable (“ON”) the function that Specify the original copy type automatically allows you to use the same image data of the copy selected when power is turned ON or panel reset. cycle that has just been completed or not (“OFF).
  • Page 108 The initial setting is Set the time it takes the copier to enter the Energy Save mode in 1 min. increments. Di250: From 1 min. to 240 min. Di350: From 15 min. to 240 min. Density Priority The initial setting is “15 min.”...
  • Page 109 2. Making the User’s Choice Settings Print Exposure Intelligent Sorting Select the print exposure level from the range -2 to Select whether to turn “ON” or “OFF” the function that automatically switches between Sort and Non-Sort, selecting Non-Sort if only a single The initial setting is “0”.

  • Page 110: Making The User's Choice Settings

    2. Making the User’s Choice Settings Making the User’s Choice Settings Press the Utility key. Touch the key of the desired User’s Choice function. For example, touch Output Priority 1166O243EA User’s Choice Touch 1168P135CC Touch Sort 1168P132CC Touch the key of the desired page of the menu, from For example, if you want to change the Output Priority from Non-Sort to Sort, touch...

  • Page 111: Meter Count

    3. Meter Count Using Meter Count Meter Count allows you to check the total count of each of the following five counters. Total Counter 2-Sided Total Shows the total number of copies made since the Shows the number of 2-sided copies made. installation of the copier.

  • Page 112: Job Memory Input And Job Recall

    4-10 4. Job Memory Input and Job Recall Job Memory Input Up to 10 different, frequently used copy job programs can be stored in memory and recalled later as necessary. Storing a Job Set up the job you want to store in memory. Select any one of the 10 job number keys from marked with...
  • Page 113 4-11 4. Job Memory Input and Job Recall The job settings appear on the Touch Panel. 1168P116CB Useful Tip Backup To change the screen, touch Next After you have checked the settings, touch Enter Touch Exit 1168P117CB...
  • Page 114 4-12 4. Job Memory Input and Job Recall Deleting a Job Program Press the Mode Check key. Touch the job number key from which you want to delete a job program. 1166O242EA Touch Job Mem Input 1168P119CB Useful Tip When appears in that key, it indicates that the job program has been deleted.

  • Page 115: Recalling A Job From Memory

    4-13 4. Job Memory Input and Job Recall Recalling a Job from Memory Press the Utility key. Check the settings made and then touch Enter . The copier is set up for these setting and the Basics screen reappears. 1166O243EA Copy Job Recall Touch 1168P123CB...

  • Page 116: Settings In User Management

    4-14 5. Settings in User Management Setting the Confirmation Beep and Alarm Beep Confirmation Beep Alarm Beep The volume of the confirmation beep that can be The volume of the alarm beep that sounds when, heard when a control panel key is pressed may be for example, a paper misfeed occurs may be adjusted in the range between 0 (zero) and 5 adjusted in the range between 0 (zero) and 5...

  • Page 117: Using The Scanner Dry Function

    4-15 5. Settings in User Management Using the Scanner Dry Function During times of high humidity or when there are sudden rapid changes in humidity (especially when you are using a heater in winter), condensation can form on the surface of the PC Drum and Scanner resulting in blotchy copies.

  • Page 118: Using The Toner Replenisher Function

    4-16 5. Settings in User Management Using the Toner Replenisher Function The copier tends to exhaust the supply of toner rapidly when making a number of copies from an original with dark solid areas such as a photo. As a result, the image density of the copy will become lighter. In such a case, you can use Toner Replenisher to regain the normal image density quickly.

  • Page 119: Panel Cleaning

    4-17 5. Settings in User Management Panel Cleaning Test Print To clean the surface of the touch panel, use this function. p. 7-8 1168P188CB 1168P130CA Important Do not touch this key. This is for the Tech. Rep. to adjust this machine. See p. 4-3 for the printer test print.

  • Page 120: Settings In Admin. Management

    4-18 6. Settings in Admin. Management Admin. Management Mode The Admin. Management mode is for the administrator of your copier. When Admin. Management is selected, the message prompts you to enter the administrator number. NOTES • The administrator number is to be programmed by your Tech. Rep. Ask him/her for more details. •...

  • Page 121: Functions Of Admin. Management

    4-19 6. Settings in Admin. Management Functions of Admin. Management Administrator Set You can set the Max. Copy Sets and Disable Auto Shut Off functions. Copy Track You can set the Account No., Total Count, Size Count, Copy Limit and Access Code functions. User Help This function cannot be used by this copier.

  • Page 122: Administrator Set

    4-20 6. Settings in Admin. Management Administrator Set Max. Copy Sets Limit the number of copies or copy sets that can be made per job from 1 to 99. The initial setting is “OFF.” Enter the Copy Limit Value from the 10-key Administrator Set To show the key on...
  • Page 123 4-21 6. Settings in Admin. Management Disable Auto Shut Off This function can disable the Auto Shut Off function. Select whether to enable (“Yes”) or disable (“No”) the Disable Auto Shut Off function. The initial setting is “No” (disable). Enter Touch To show the Administrator Set...

  • Page 124: Copy Track

    4-22 6. Settings in Admin. Management Copy Track This function allows the administrator to keep track of the number of copies made in the Copier mode and the number of prints made in the Printer mode for each account. Select whether to turn “ON” or “OFF” the Copy Track function for “Copier” or “Printer” and select the Copy Track method, either “100 Accounts”...
  • Page 125 4-23 6. Settings in Admin. Management Setting Copy Track Initialize the Copy Track function data by Copy Track To show the key on the Enter touching Touch Panel, follow the steps given in “Setting Admin. Management.” p. 4-18 Touch Copy Track 1168P146CB NOTES •...
  • Page 126 4-24 6. Settings in Admin. Management Setting the Account Number You can change or program the Account Number only when “100 Accounts” is set. Copy Track To show the key on the Touch the key of the target account. Touch Panel, follow the steps given in “Setting Admin.
  • Page 127 4-25 6. Settings in Admin. Management Programming the Access Code An access code can be programmed when “100 Accounts” is selected. Copy Track To show the key on the Touch the Access Code key of the target Touch Panel, follow the steps given in account.
  • Page 128 4-26 6. Settings in Admin. Management Setting a Copy Limit for Each Account A limit for the number of copies made can be set for each account when “100 Accounts” is selected. Copy Track To show the key on the Touch the Copy Limit key of the target Touch Panel, follow the steps given in account.
  • Page 129 4-27 6. Settings in Admin. Management Clearing Counters for Each Account A counter can be cleared for each account when “100 Accounts” or “1000 Accounts” is selected. It is also possible to clear all counters of all accounts at once. To show the Copy Track key on the...
  • Page 130 4-28 6. Settings in Admin. Management...
  • Page 131 Chapter 5 :KHQD0HVVDJH$SSHDUV...

  • Page 132: When The Message "The Current Paper Drawer Is Empty." Appears

    1. When the Message “The current Paper Drawer is empty.” Appears When the drawer currently selected for use runs out of paper, the message shown on the left appears. The current copy cycle is interrupted and you cannot start a new copy cycle. The blinking drawer has run out of paper.
  • Page 133 1. When the Message “The current Paper Drawer is empty.” Appears OHP/Card Slide the Drawer back in. Touch 1166O081AA 1170P157EC Change Touch on the 1st Drawer Paper Select screen. Useful Tip Card Select when labels have been loaded. Enter Select the type of paper and touch 1170P155EC Touch the key of the desired paper size.
  • Page 134 1. When the Message “The current Paper Drawer is empty.” Appears <Using Metric Size Paper> <Using Nonstandard Size Paper> When you want to use metric size paper, touch • When you use a nonstandard size paper, touch Metric Custom Size on the screen given in step 7 and you on the screen given in step 7 have a screen that allows you to select a metric...
  • Page 135 1. When the Message “The current Paper Drawer is empty.” Appears 2nd Drawer Paper Feed Unit PF-108 Slide out the drawer. Slide out the drawer. 1171U016AA 1171U016AA Load the paper stack into the Drawer so that Load the paper stack into the Drawer so that its front side faces up.
  • Page 136 1. When the Message “The current Paper Drawer is empty.” Appears Paper Feed Unit PF-110 Slide out the drawer. Pinch the tabs on the Edge Guide and Trailing Edge Stop and slide them to the exact size of the paper loaded. 1166O082AA Press the Paper Lifting Plate down until it 1166O085AB...
  • Page 137 1. When the Message “The current Paper Drawer is empty.” Appears <When turning the Paper Setting Dial to “User Set”> Turning the Paper Setting Dial to “User Set” accesses a screen from which you can choose an alternative paper size. 1170P184EA Touch the desired paper size and then touch Enter...
  • Page 138 1. When the Message “The current Paper Drawer is empty.” Appears Large Capacity Cabinet Slide out the drawer. Load another paper stack into the left half of the drawer, front side face up. Press the leading edge of the paper stack tightly up against the left side of the Drawer.
  • Page 139 1. When the Message “The current Paper Drawer is empty.” Appears...

  • Page 140: When The Message "Add Toner." Appears

    5-10 2. When the Message “Add Toner.” Appears The message “Please add toner.” appears when toner is soon running out. You can still make copies, but the image density will become lighter and lighter. It is recommended therefore that you replace the Toner as soon as possible.
  • Page 141 5-11 2. When the Message “Add Toner.” Appears With the Seal on the Toner Bottle facing up, NOTES slowly peel off the Seal as illustrated. • Use ONLY the specified toner for this copier. Using any other toner could result in trouble. •...

  • Page 142: When The Message "Please Change Imaging Unit." Appears

    5-12 3. When the Message “Please change Imaging Unit.” Appears The Imaging Unit life will expire within approx. 5000 images after the message on the left appears. After approx. 5000 images the machine will cease operation until a new Imaging Unit is installed. Please call your technical representative for a replacement Imaging Unit.
  • Page 143 5-13 3. When the Message “Please change Imaging Unit.” Appears Align the green labels on the new Imaging Unit with those on the rails in the copier, then slide the Imaging Unit into the copier. 1166O254AA Holding onto the green hooks of the Imaging Unit, push the Imaging Unit all the way into the copier until a click is heard.

  • Page 144: When The Message "Stapler Empty." Appears

    5-14 4. When the Message “Stapler Empty.” Appears The message shown on the left appears when the staples are running out. Reload the Staple Cartridge with a new clip by following the procedure given below. 1170P165EC Reloading the Staple Cartridge Slide the Finisher/Mailbin Finisher away While pressing down the green lever, pull out from the copier.
  • Page 145 5-15 4. When the Message “Stapler Empty.” Appears Insert the new Staple Cartridge into the Slide the Finisher/Mailbin Finisher back Stapler Unit until it clicks into place. against the copier. 1166O176AA 1166O130AB Align the arrows and firmly push the Stapler Unit down into the well.

  • Page 146: When The Message "A Paper Misfeed Has Been Detected." Appears

    5-16 5. When the Message “A paper misfeed has been detected.” Appears If a paper misfeed occurs during a copy cycle, the message shown on the left appears and that particular copy cycle is stopped in the middle of operation. Clear the misfed sheet of paper according to the procedure given below.

  • Page 147: Misfeed Clearing Procedures

    5-17 5. When the Message “A paper misfeed has been detected.” Appears Misfeed Clearing Procedures Manual Bypass Tray Duplex Unit Unlock and open the Right Door. Open the Duplex Unit. 1166O180AA 1166O158AA Slowly and gently pull out the sheet of paper. CAUTION NEVER touch the electrical contacts inside the right door and underneath the Imaging...
  • Page 148 5-18 5. When the Message “A paper misfeed has been detected.” Appears Copier Open the right Side Panel and flip down the Reload the paper stack in the drawer and transparent paper guide. slide the drawer back into the copier. 1166O138AA 1171U020AA Slowly and gently pull out the sheet of paper.
  • Page 149 5-19 5. When the Message “A paper misfeed has been detected.” Appears Slowly and gently pull out the sheet of paper. Close the Right Door. 1166O231AA NOTE Do not take out the Imaging Unit at this time. CAUTION The area around the Fusing Unit is very hot.
  • Page 150 5-20 5. When the Message “A paper misfeed has been detected.” Appears Duplexing Document Feeder Open Misfeed Clearing Guide Remove the paper on the Original Glass and lower the Duplexing Document Feeder. 1166O256AA 1166O147AA Unload the originals from the Duplexing Document Feeder and gently pull out the Close Misfeed Clearing Guides original.
  • Page 151 5-21 5. When the Message “A paper misfeed has been detected.” Appears Automatic Document Feeder Open the Misfeed Clearing Guide. Pulling up the Document Feed Tray, gently pull out the original. 1166O151AA 1166O162AA Unload the originals from the Automatic Document Feeder. Bring the tray and Misfeed Clearing Guide back down.
  • Page 152 5-22 5. When the Message “A paper misfeed has been detected.” Appears Finisher and Mailbin Finisher Slide the Finisher/Mailbin Finisher away Open Misfeed Clearing Guide from the copier. 1166O168AA 1166O165AA CAUTION Open the Transport Unit Cover. Metallic parts inside the Misfeed Clearing Guide are very hot.
  • Page 153 5-23 5. When the Message “A paper misfeed has been detected.” Appears Close Misfeed Clearing Guide Remove the sheet of paper. 1166O184AA 1166O172AA Raise Misfeed Clearing Guide Open Misfeed Clearing Guide remove the sheet of paper. 1166O173AA 1166O185AA Remove the sheet of paper and close Misfeed Close Misfeed Clearing Guide Clearing Guide Slide the Finisher/Mailbin Finisher back...
  • Page 154 5-24 5. When the Message “A paper misfeed has been detected.” Appears Job Tray Unlock and open the Right Door. Gently pull out the sheet of paper. 1166O156AA 1166O158AA Close the Job Tray Door. CAUTION NEVER touch the electrical contacts inside the right door and underneath the Imaging Unit, as an electrostatic discharge may damage the copier.
  • Page 155 5-25 5. When the Message “A paper misfeed has been detected.” Appears Shift Tray Unlock and open the Right Door. Gently pull out the sheet of paper. 1166O156AA 1166O158AA Close the Shift Tray Cover. CAUTION NEVER touch the electrical contacts inside the right door and underneath the Imaging Unit, as an electrostatic discharge may damage the copier.

  • Page 156: When A Staple Misfeed Occurs

    5-26 6. When a Staple Misfeed Occurs Clearing the Staple Misfeed Slide the Finisher/Mailbin Finisher away Push up the guide of the Staple Cartridge and from the copier. pull out one staple sheet. 1166O165AA 1166O177AA Return the guide back to its original position. Press and turn the knob to open the cover at the rear of the Finisher.
  • Page 157 5-27 6. When a Staple Misfeed Occurs Press and turn the knob to lock the cover. NOTE After a staple misfeed has been cleared, the Staple Unit runs idly a maximum of about 10 stapling sequences without actually driving staples into paper. What the Staple Unit is doing is feeding a staple sheet to the required position.

  • Page 158: When A Size Error Message Appears

    5-28 7. When a Size Error Message Appears Clearing a Size Error After clearing a paper misfeed, the size error message shown below may appear. If the paper size setting for a drawer does not agree with the actual paper size loaded in the drawer, a paper misfeed can occur. 1168P186CA 1168P187CA NOTE...
  • Page 159 5-29 7. When a Size Error Message Appears <Paper Feed Unit PF-110> Slide out the drawer. 1166O273AA Turn the Paper Setting Dial to the position corresponding to the current paper size loaded in the drawer. 1166O209EB Slide the Drawer back in. 1166O086AA...

  • Page 160: What Does Each Message Mean

    5-30 8. What Does Each Message Mean? What does each message mean? Message Cause Action A malfunction was detected. The copier malfunctioned and Call and inform your Technical The SMART controller has is unable to make copies. Representative of the code called your Technical being shown on the Touch Representative.
  • Page 161 Chapter 6 7URXEOHVKRRWLQJ...

  • Page 162: When This Type Of Copy Is Produced

    1. When This Type of Copy is Produced When this type of copy is produced Symptom Possible Cause Action The image is too light. The exposure level for the Auto Change the setting of “Auto Exposure mode is set at Exposure Level”...
  • Page 163 1. When This Type of Copy is Produced Symptom Possible Cause Action The copy has lines. The Original Glass is dirty. Wipe the Original Glass clean with a soft dry cloth. p. 7-8 The Original Pad is dirty. Wipe the Original Pad clean with a soft cloth dampened with alcohol.

  • Page 164: The Copier Is Not Functioning As Designed

    2. The Copier is not Functioning as Designed The copier is not functioning as designed Symptom Check for Action The Touch Panel shows nothing. Is only the Start key lit up green? The copier is in the Energy Saver mode or the LCD Back-light is off.

  • Page 165: Chapter 7 Miscellaneous

    Chapter 7 Miscellaneous...

  • Page 166: Specifications

    1. Specifications Specifications Copier Di250 Di350 Type Console/Desk Top Copier Platen Type Stationary Photo conductor Copying System Electrostatic Dry Powdered Image Transfer to Plain Paper Developing System Micro-Toning High-Grade System Fusing System Lamp-Heated Roller Resolution 600dpi Types of Original Sheets, Books and other three-dimensional objects Maximum Original Size : 11”×17”L...

  • Page 167: Automatic Document Feeder

    1. Specifications Duplexing Document Feeder AFR-14 Document Feeding System Standard Mode : 1-sided original, 2-sided original Mixed Original Detection Mode : 1-sided Mixed Original Detection 2-sided Mixed Original Detection Single Feeding Mode : 1-sided original Kinds of Original Plain paper 1-sided original Mode : 13-1/4 to 29-1/4 lbs.

  • Page 168: Paper Feed Unit

    1. Specifications Paper Feed Unit PF-108 PF-110 Kinds of Paper Plain paper (16 to 24 lbs.), Recycled paper Paper Size 11”×17”L to Letter 11”×17” L to 5-1/2”×8-1/2”C Capacity 500 sheets (21-1/4 lbs.) 250 sheets (21-1/4 lbs.) Power Source Supplied from copier Power Consumption 10W or less Dimensions...
  • Page 169 1. Specifications Finisher FN-100 Types of Trays Top Offset Tray, Elevator Tray Modes Non-Sort Mode, Sort Mode, Group Mode, Staple Mode, Hole Punch Mode Kinds of Paper <Top Offset Tray> Non-Sort Mode • Plain paper (16 to 24 lbs.), Recycled paper •...
  • Page 170 1. Specifications Mailbin Finisher FN-500 Types of Trays Top Offset Tray, Elevator Tray, Mailbins (5 bins) Modes Non-Sort Mode, Sort Mode, Group Mode, Staple Mode and Hole Punch Mode Kinds of Paper <Top Offset Tray> Non-Sort Mode • Plain paper (16 to 24 lbs.), Recycled paper •...
  • Page 171 1. Specifications Job Tray JS-200 Type Stationary Number of Trays 2 Trays : Job Tray is the 1st tray. Copier exit tray becomes the 2nd tray. Mode Non-Sort Mode, Sort Mode and Group Mode Kinds of Paper <First Tray> • Plain paper (16 to 24 lbs.) <Second Tray>...

  • Page 172: Care Of The Copier

    2. Care of the Copier Cleaning Touch Panel Housing Panel Cleaning Mode enables you to clean the Wipe the surface of the housing clean with a soft Touch Panel when the Main Switch is ON. cloth dampened with alcohol. Press the Utility key and touch User Management 1166O097AA 1168P125CC...
  • Page 173 2. Care of the Copier Document Transport Belt Original Pad Open the Document Feeder. Raise the Document Feeder or Original Cover. Wipe the surface of the Document Transport Belt clean with a soft cloth dampened with Wipe the surface of the Original Pad clean alcohol.

  • Page 174: Function Combination Matrix

    7-10 3. Function Combination Matrix Function Combination Matrix Function Set Last Basic Orig. Copy Paper Zoom Finishing Orig. Copy Function Set First × × × × × × × × F F Auto Paper × × × × × Paper Feed Unit ×...
  • Page 175 7-11 3. Function Combination Matrix Function Set Last Orig. Copy Density Auxiliary Other Copy Function Set First × × Auto Paper F F F F F D D × Paper Feed Unit × 1st Drawer (OHP/Card) Paper × 1st Drawer (Plain) ×...

  • Page 176: Conditions For Combined Functions

    7-12 3. Function Combination Matrix Conditions for Combined Functions : The functions can be used in combination with each other. : The functions cannot be set in combination. (The function set first takes precedence.) : The functions cannot be set in combination. (The function set last takes precedence.) : The functions can be set in combination.

  • Page 177: Description Of Paper Size And Zoom Ratio Table

    7-13 4. Description of Paper Size and Zoom Ratio Table Description of paper size and zoom ratio table Paper Size Name Size (Metric) Size (Inch) 11-3/4” × 16-1/2” 297mm×420mm 10” × 14-1/4” 257mm×364mm 8-1/4” × 11-3/4” 210mm×297mm 7-1/4” × 10” 182mm×257mm 5-3/4”...
  • Page 178 7-14 Index Numeric Control Panel ..........2-14 Copy Paper Size ..........3-4 1 (2in1) 1 ............. 3-24 Copy Track ............. 4-22 100 Accounts ..........4-22 Copy Track Data ..........4-23 1000 Accounts ..........4-22 Cover .............. 3-34 10-key Pad ............. 2-14 Crisscross Grouping ........
  • Page 179 7-15 Index Manual Bypass Copying ........3-7 Small Original Adjustment ......3-51 Manual Exposure ..........3-33 “Small” Originals ..........4-7 Margin ............3-27 Sort ..............3-16 Max. Copy Sets ..........4-20 Special Paper Setting ........3-6 Memory Recall ..........3-53 Specifications ...........7-2 Meter Count ............4-9 Staple ..............3-17 Misfeed Clearing Procedures ......5-17 Start Key ............2-14 Mixed Orig.
  • Page 181 Copyright 1998 MINOLTA CO., LTD. Printed in Japan The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers. Minolta Co., Ltd. Image Information Products Marketing Headquarters 1999.

This manual is also suitable for:

Di350

Table of Contents
