Specifications
VLT® AutomationDrive FC 302
508 (20.0)
18 (0.7)
254
96 (3.8)
(10.0)
168 (6.6)
154 (6.1)
1
1800 (70.9)
168 (6.6)
9
9
1209 (47.6)
601 (23.7)
4X 121 (4.8)
4X 457 (18.0)
560 (22.0)
69 (2.7)
1
Heat sink access panel (optional)

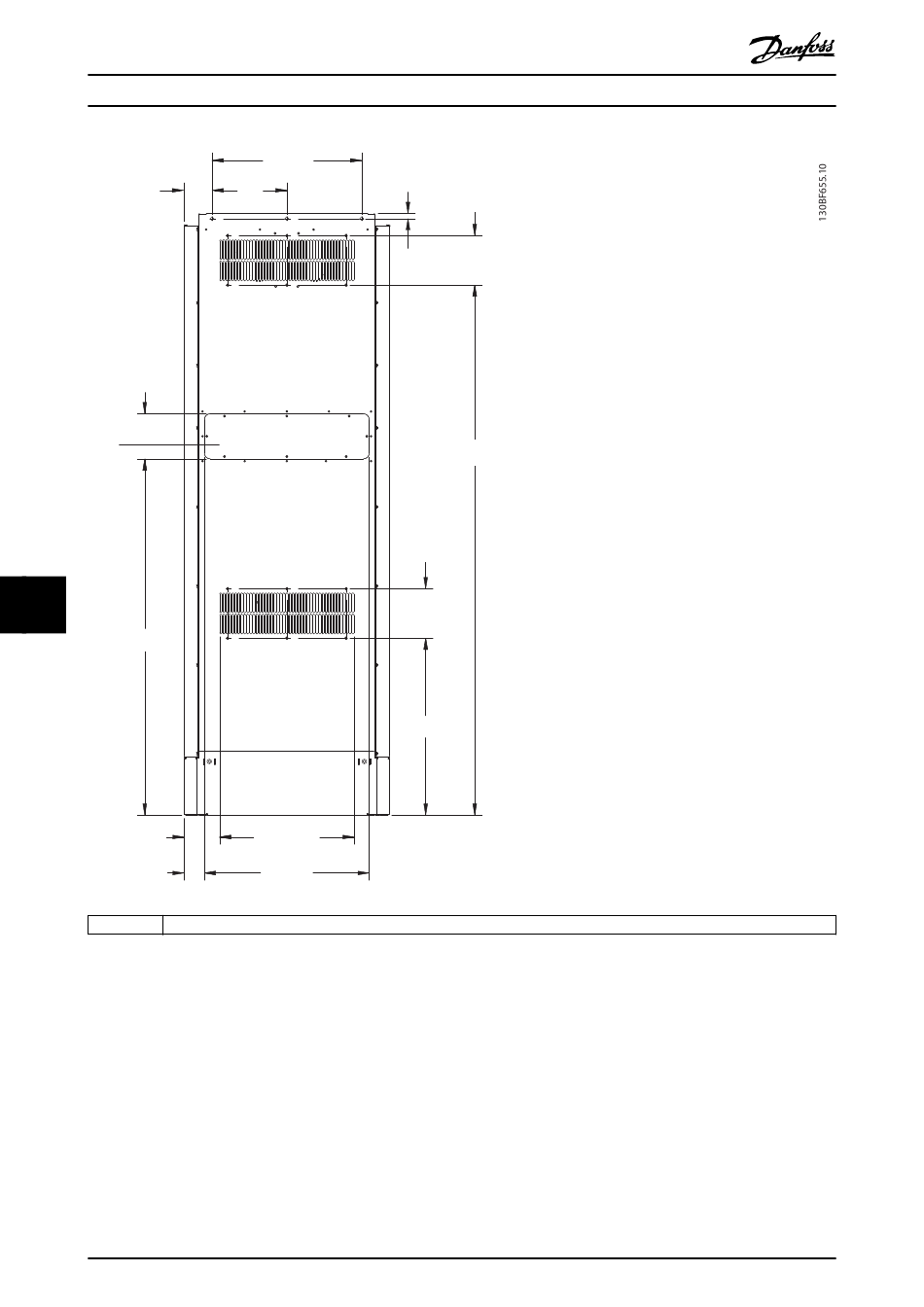

Illustration 9.8 Back View of E2h
