Electrical Installation Operating Guide
5 5
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
R/L1 91 S/L2 92 T/L3 93 U/T1 96 V/T2 97 W/T3 98
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
W/T3 98
R/L1 91 S/L2 92 T/L3 93 U/T1 96 V/T2 97

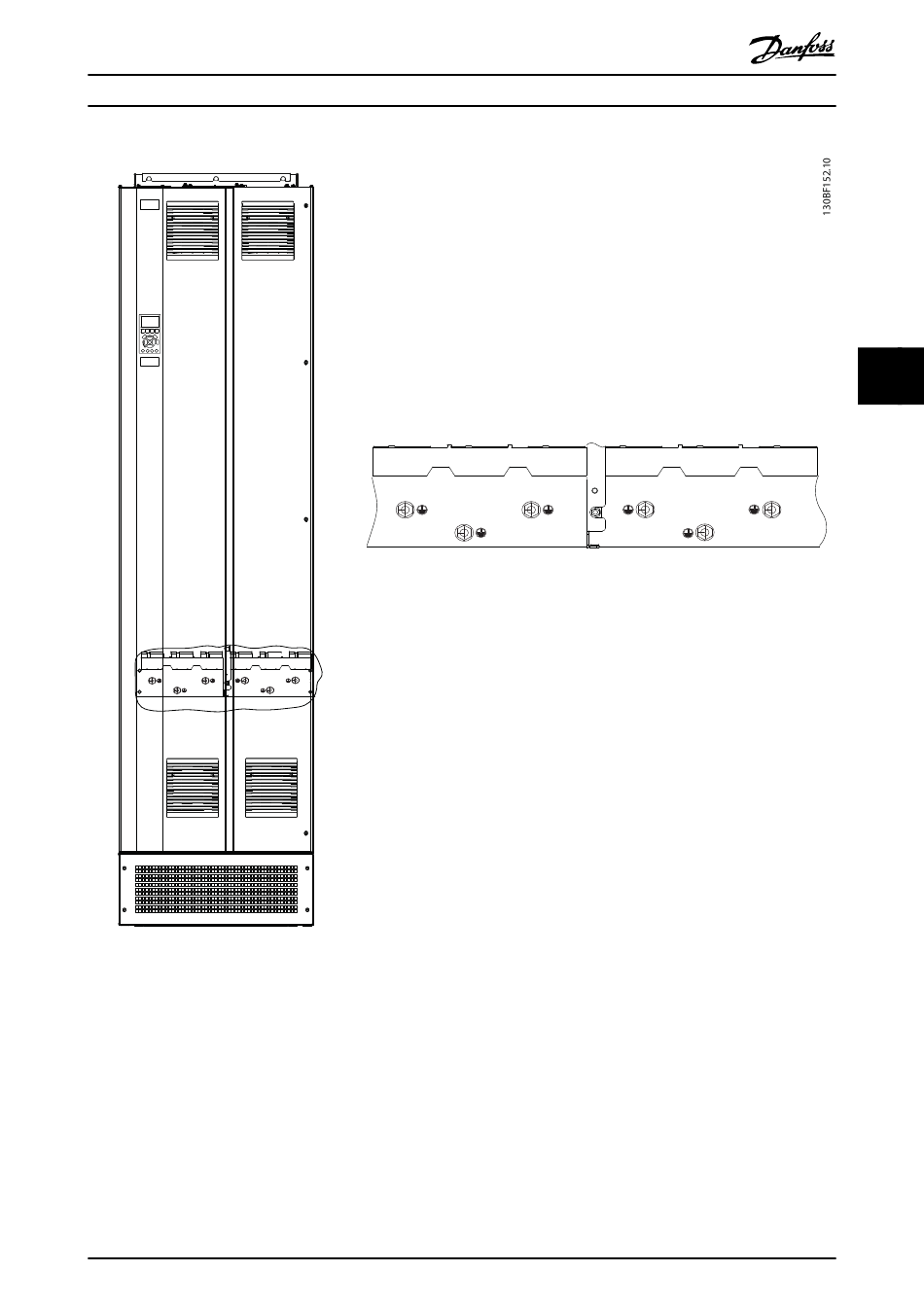

Illustration 5.5 Ground terminals (E1h shown). For a detailed view of terminals, refer to chapter 5.7 Terminal Dimensions.
