Electrical Installation
+ REGEN 82
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (14FT-LB)
U/T1 96

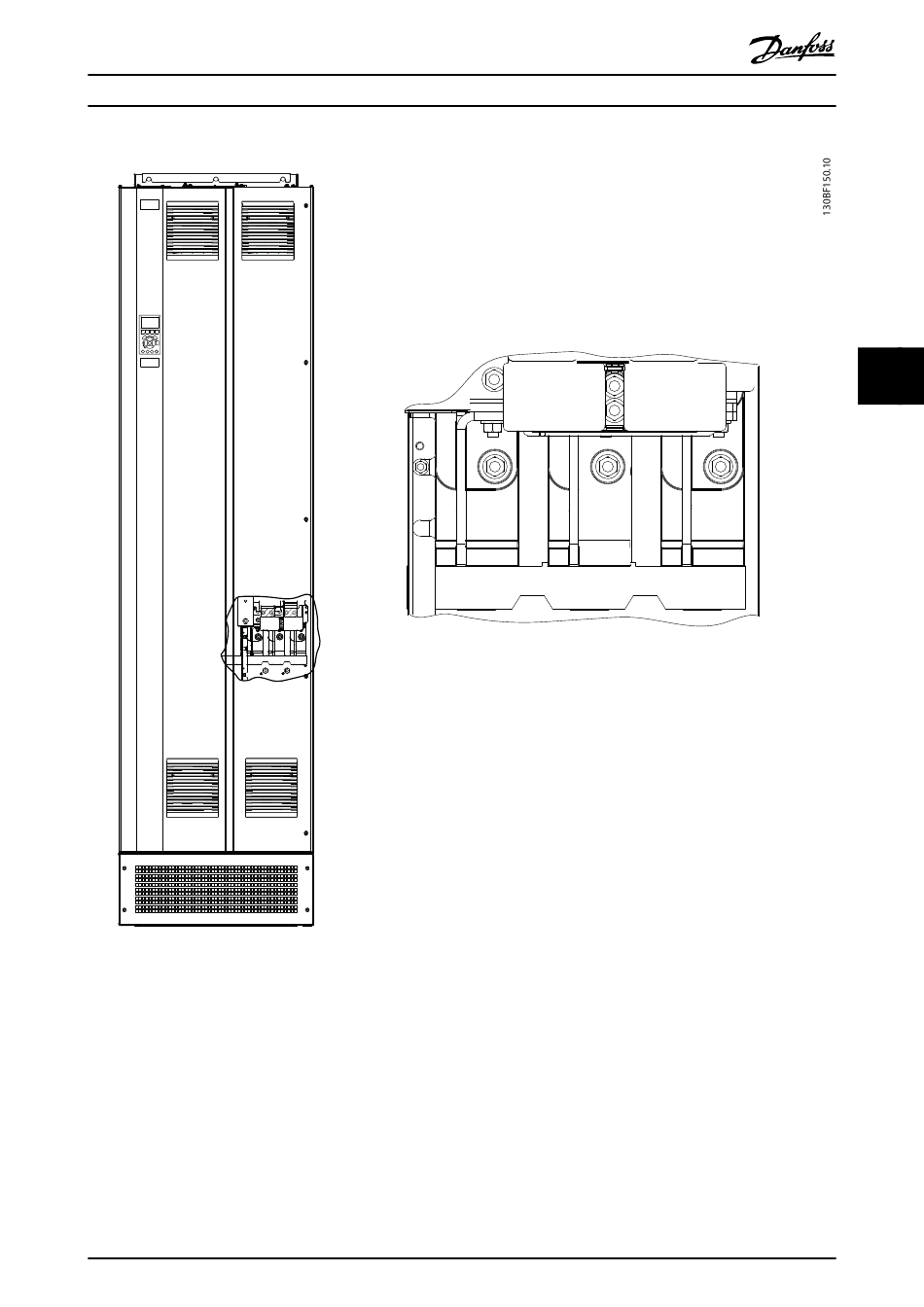

Illustration 5.3 AC motor terminals (E1h shown). For a detailed view of terminals, refer to chapter 5.7 Terminal Dimensions.
MG38A202
Operating Guide
- REGEN 83
FASTENER TORQUE:
M10 19Nm (14FT-LB)
M12 35Nm (26FT-LB)
V/T2 97
W/T3 98
Danfoss A/S © 04/2018 All rights reserved.
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
U/T1 96
V/T2 97
W/T3 98
