9.8 Enclosure Dimensions

9.8.1 E1h Exterior Dimensions
2043
(80.4)
2002
(78.8)
9 9
1553
(61.1)

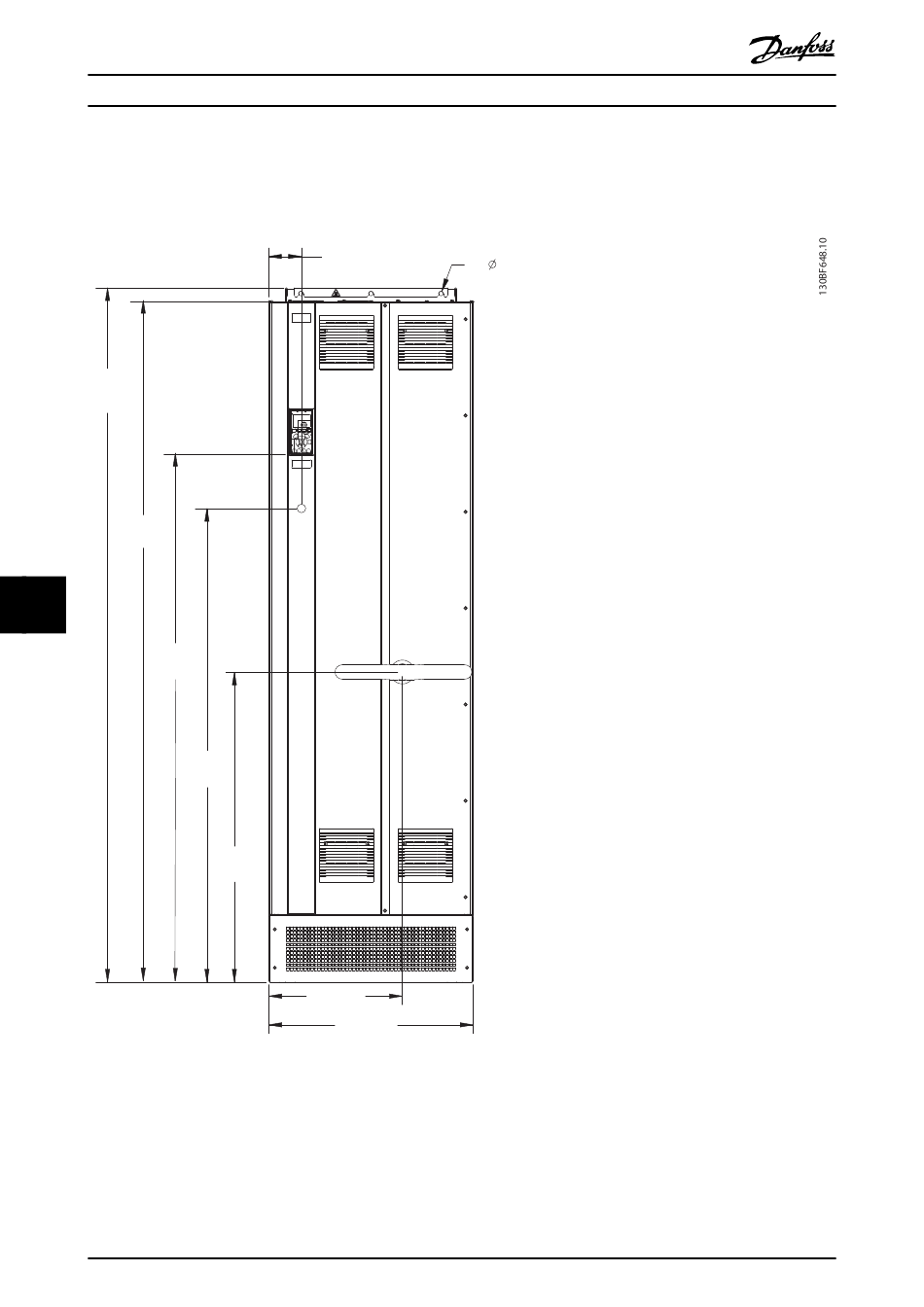

Illustration 9.2 Front View of E1h
80
VLT® AutomationDrive FC 302
22 (0.8)
1393
(54.9)
912
(35.9)
393 (15.5)
602 (23.7)
Danfoss A/S © 04/2018 All rights reserved.
3X 13 (0.5)
MG38A202
