Electrical Installation
5.7.4 E4h Terminal Dimensions
6X 148 (5.8)
1
90 (3.5)
50 (2.0)
0 (0.0)
1 Mains terminals
2 Brake or regeneration terminals

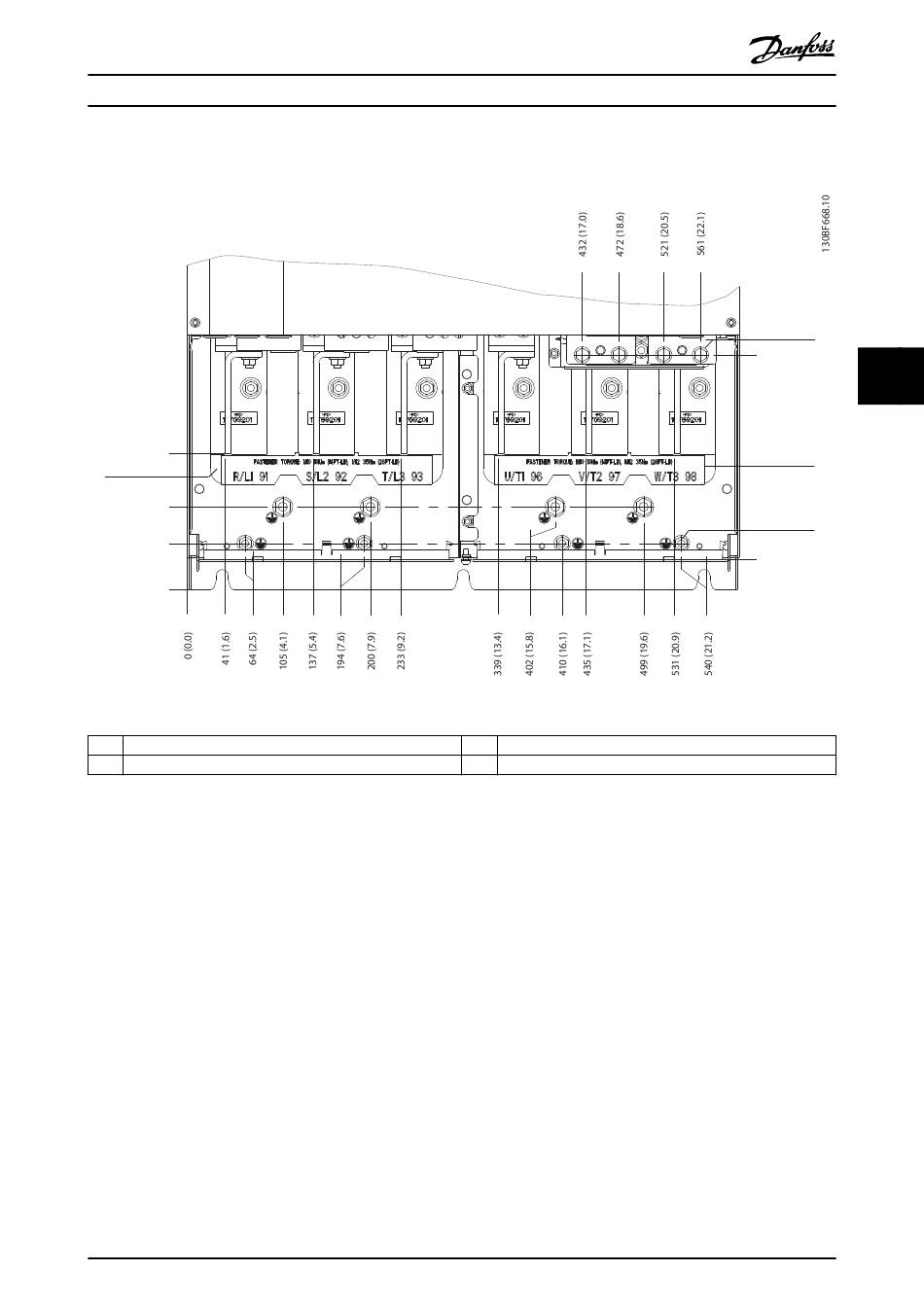

Illustration 5.13 E4h Terminal Dimensions (Front View)
MG38A202
Operating Guide
3 Motor terminals
4 Ground terminals, M8 and M10 nuts
