Electrical Installation
Operating Guide
5
5
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
R/L1 91
S/L2 92
T/L3 93
FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB)
R/L1 91
S/L2 92
T/L3 93

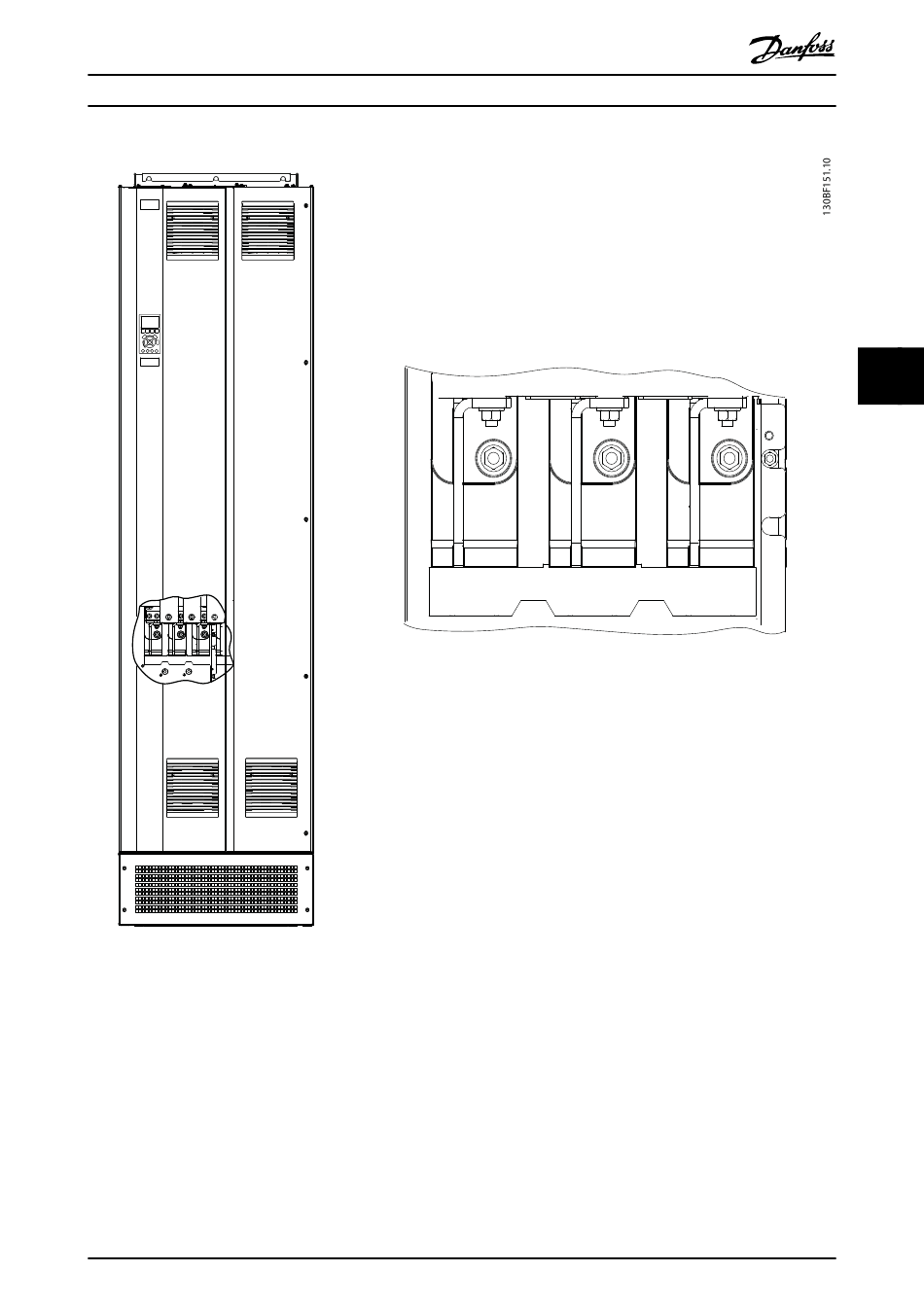

Illustration 5.4 AC mains terminals (E1h shown). For a detailed view of terminals, refer to chapter 5.7 Terminal Dimensions.
MG38A202
