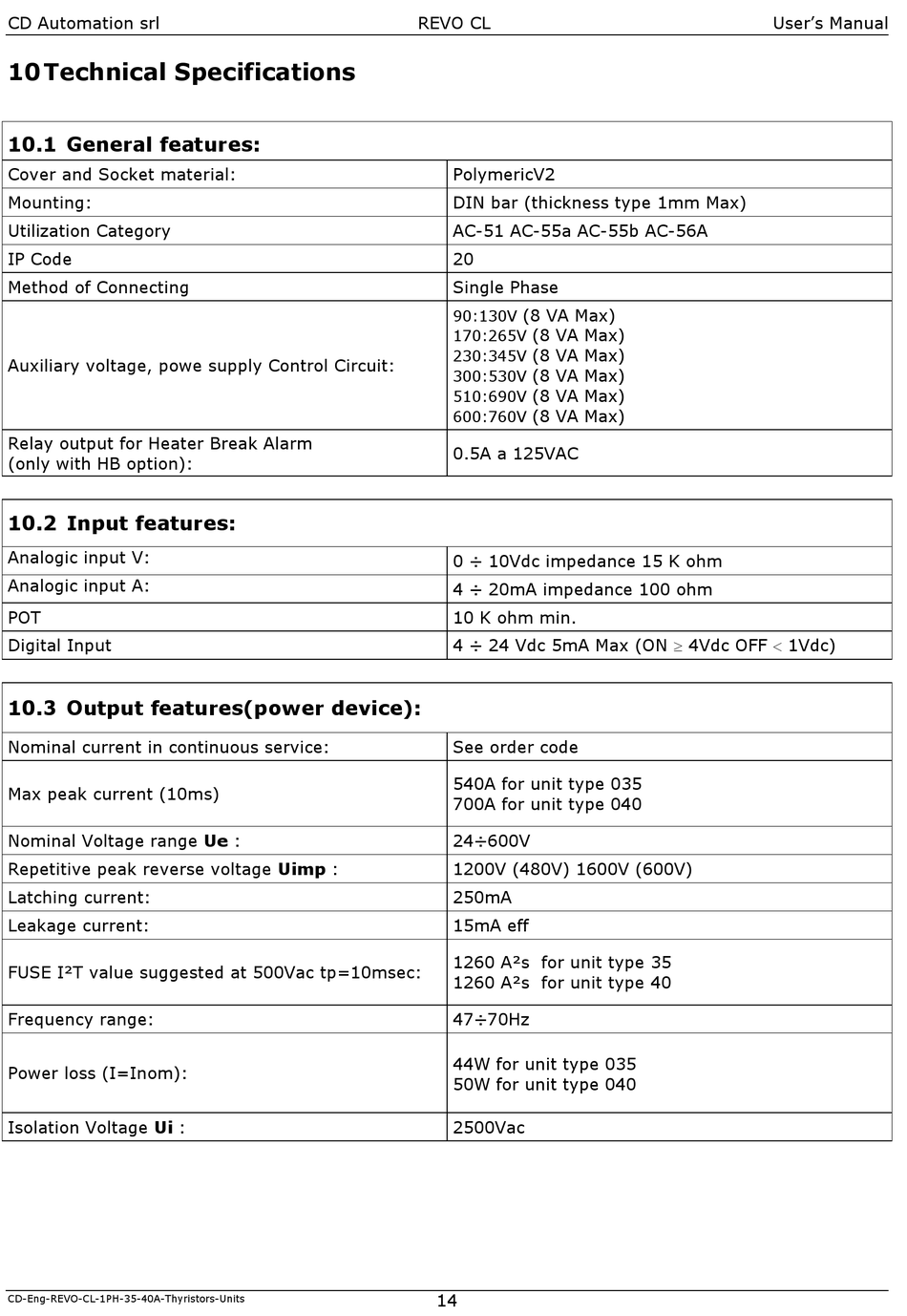

10 Technical Specifications

10.1 General features:

Cover and Socket material:
Mounting:
Utilization Category
IP Code
Method of Connecting
Auxiliary voltage, powe supply Control Circuit:
Relay output for Heater Break Alarm
(only with HB option):

10.2 Input features:

Analogic input V:
Analogic input A:
POT
Digital Input

10.3 Output features(power device):

Nominal current in continuous service:
Max peak current (10ms)
Nominal Voltage range Ue :
Repetitive peak reverse voltage Uimp :
Latching current:
Leakage current:
FUSE I²T value suggested at 500Vac tp=10msec:
Frequency range:
Power loss (I=Inom):
Isolation Voltage Ui :
CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
REVO CL
PolymericV2
DIN bar (thickness type 1mm Max)
AC-51 AC-55a AC-55b AC-56A
20
Single Phase
(8 VA Max)
90:130V
(8 VA Max)
170:265V
(8 VA Max)
230:345V
(8 VA Max)
300:530V
(8 VA Max)
510:690V
(8 VA Max)
600:760V
0.5A a 125VAC
0 ÷ 10Vdc impedance 15 K ohm
4 ÷ 20mA impedance 100 ohm
10 K ohm min.
4 ÷ 24 Vdc 5mA Max (ON  4Vdc OFF  1Vdc)
See order code
540A for unit type 035
700A for unit type 040
24÷600V
1200V (480V) 1600V (600V)
250mA
15mA eff
1260 A²s for unit type 35
1260 A²s for unit type 40
47÷70Hz
44W for unit type 035
50W for unit type 040
2500Vac
