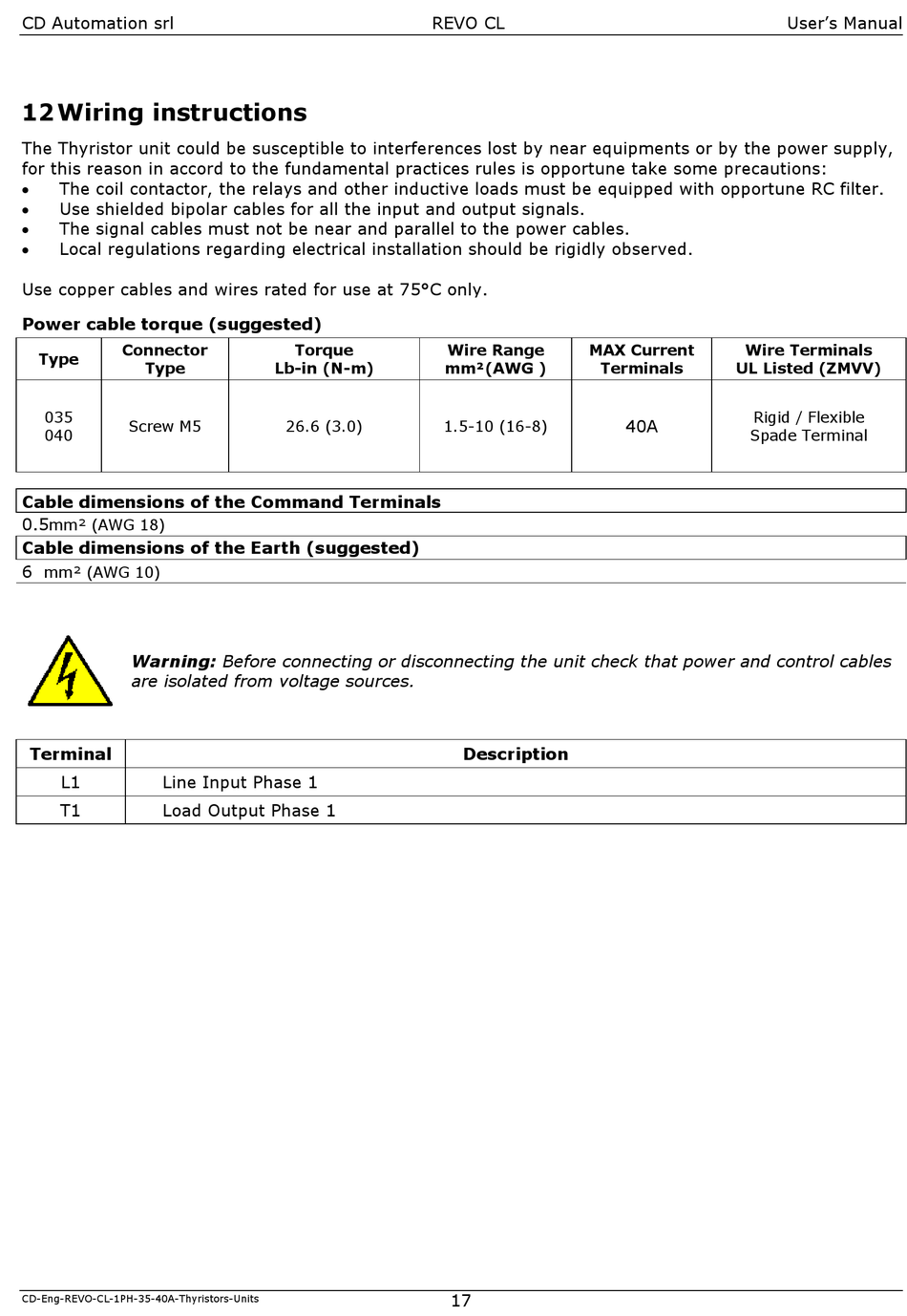

12 Wiring instructions

The Thyristor unit could be susceptible to interferences lost by near equipments or by the power supply,
for this reason in accord to the fundamental practices rules is opportune take some precautions:
 The coil contactor, the relays and other inductive loads must be equipped with opportune RC filter.
 Use shielded bipolar cables for all the input and output signals.
 The signal cables must not be near and parallel to the power cables.
 Local regulations regarding electrical installation should be rigidly observed.
Use copper cables and wires rated for use at 75°C only.
Power cable torque (suggested)
Connector
Type
Type
035
Screw M5
040
Cable dimensions of the Command Terminals
0.5
mm² (AWG 18)
Cable dimensions of the Earth (suggested)
6
mm² (AWG 10)
Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Terminal
L1 Line Input Phase 1
T1 Load Output Phase 1
CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
REVO CL
Torque
Lb-in (N-m) mm²(AWG )
26.6 (3.0) 1.5-10 (16-8)
Wire Range MAX Current
Terminals
Description
17
User's Manual
Wire Terminals
UL Listed (ZMVV)
Rigid / Flexible
40A
Spade Terminal
