CD Automation srl

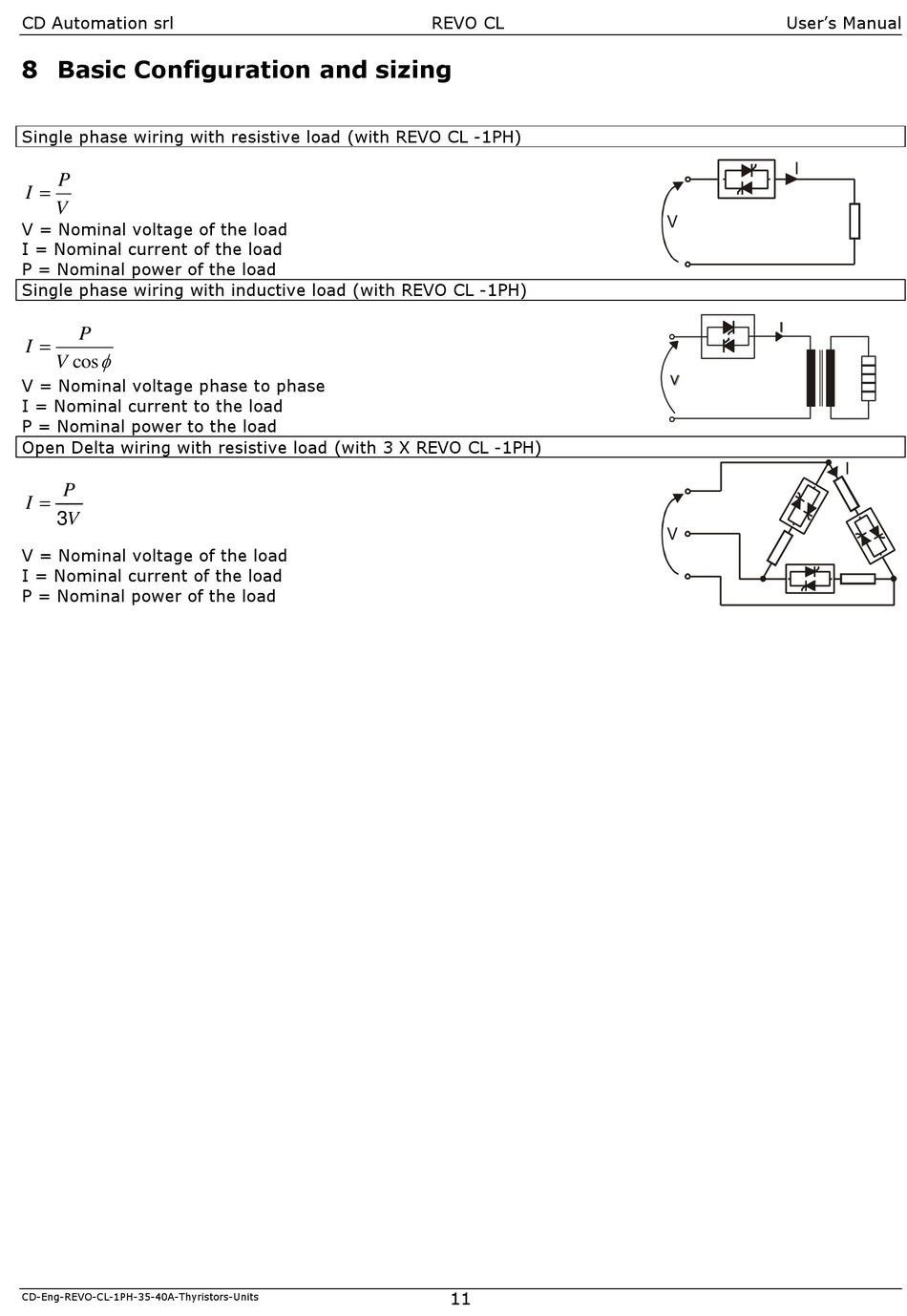

8 Basic Configuration and sizing
Single phase wiring with resistive load (with REVO CL -1PH)
P
I
V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Single phase wiring with inductive load (with REVO CL -1PH)
P
I
V
cos
V = Nominal voltage phase to phase
I = Nominal current to the load
P = Nominal power to the load
Open Delta wiring with resistive load (with 3 X REVO CL -1PH)
P
I
3
V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
REVO CL
11
User's Manual
I
V
V
I
