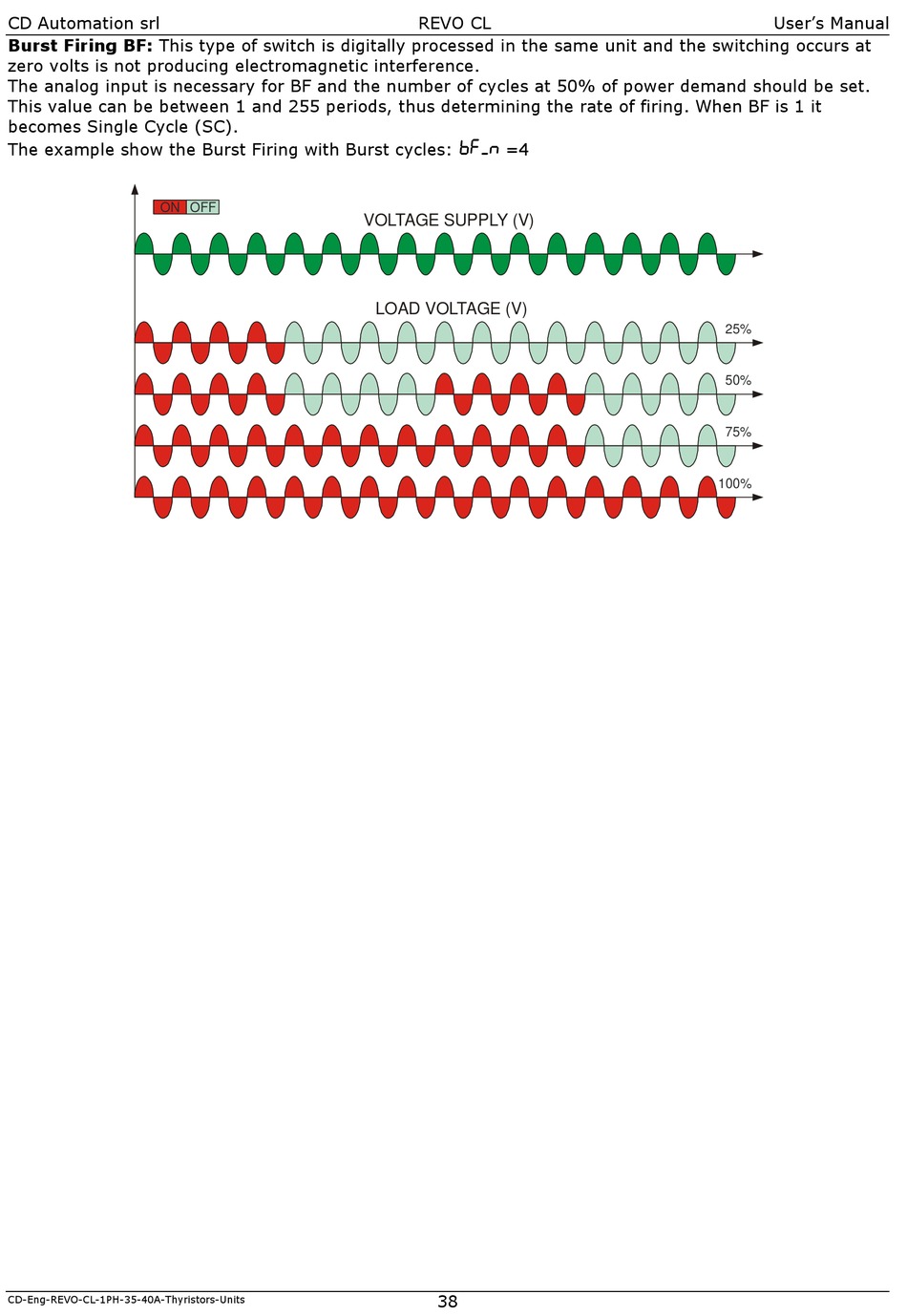

Burst Firing BF: This type of switch is digitally processed in the same unit and the switching occurs at
zero volts is not producing electromagnetic interference.
The analog input is necessary for BF and the number of cycles at 50% of power demand should be set.
This value can be between 1 and 255 periods, thus determining the rate of firing. When BF is 1 it
becomes Single Cycle (SC).
The example show the Burst Firing with Burst cycles:  =4
ON OFF
CD-Eng-REVO-CL-1PH-35-40A-Thyristors-Units
REVO CL
VOLTAGE SUPPLY (V)
LOAD VOLTAGE (V)
38
User's Manual
25%
50%
75%
100%
