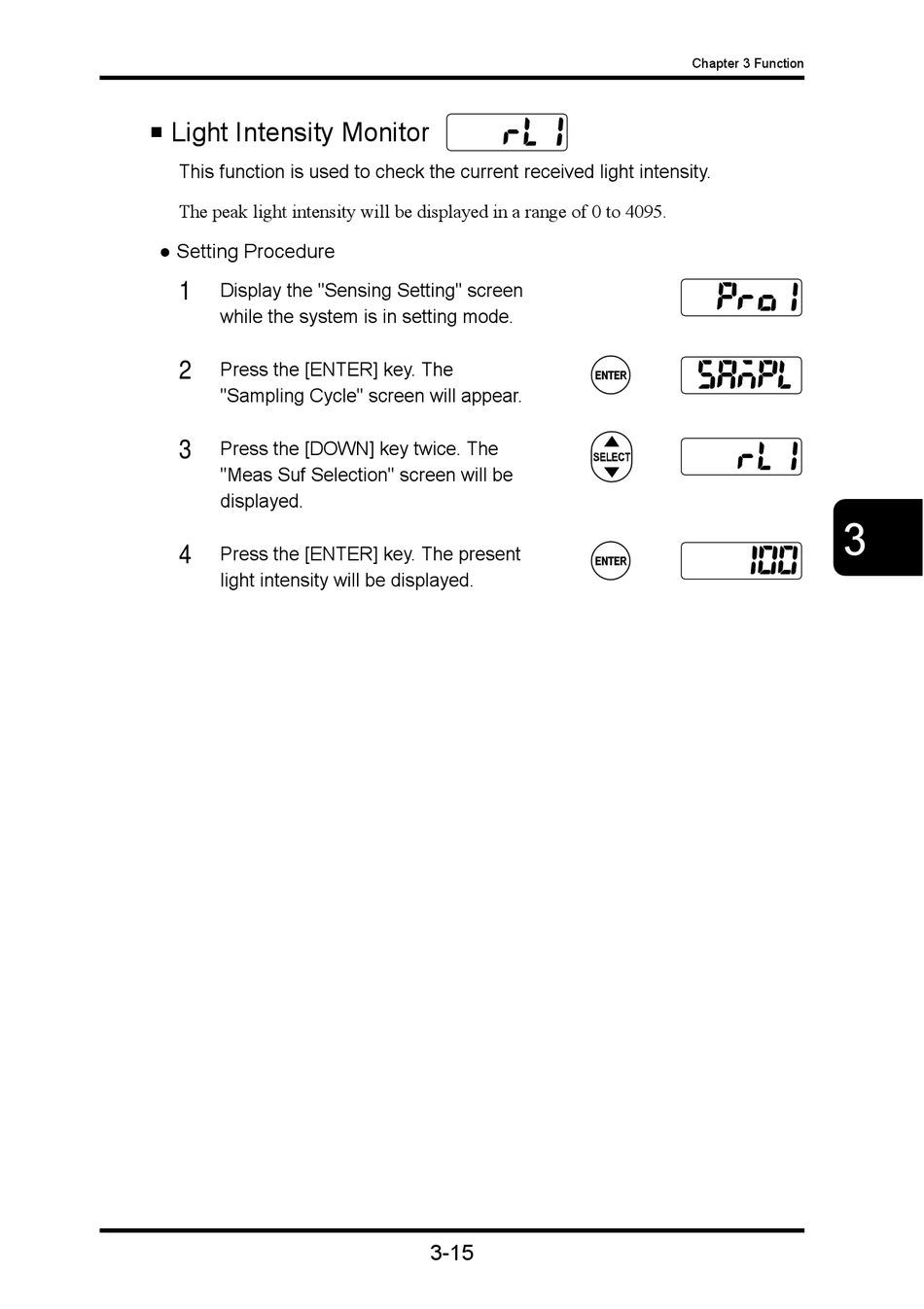

Light Intensity Monitor
This function is used to check the current received light intensity.
The peak light intensity will be displayed in a range of 0 to 4095.
● Setting Procedure
1
Display the "Sensing Setting" screen
while the system is in setting mode.
2
Press the [ENTER] key. The
"Sampling Cycle" screen will appear.
3
Press the [DOWN] key twice. The
"Meas Suf Selection" screen will be
displayed.
4
Press the [ENTER] key. The present
light intensity will be displayed.
