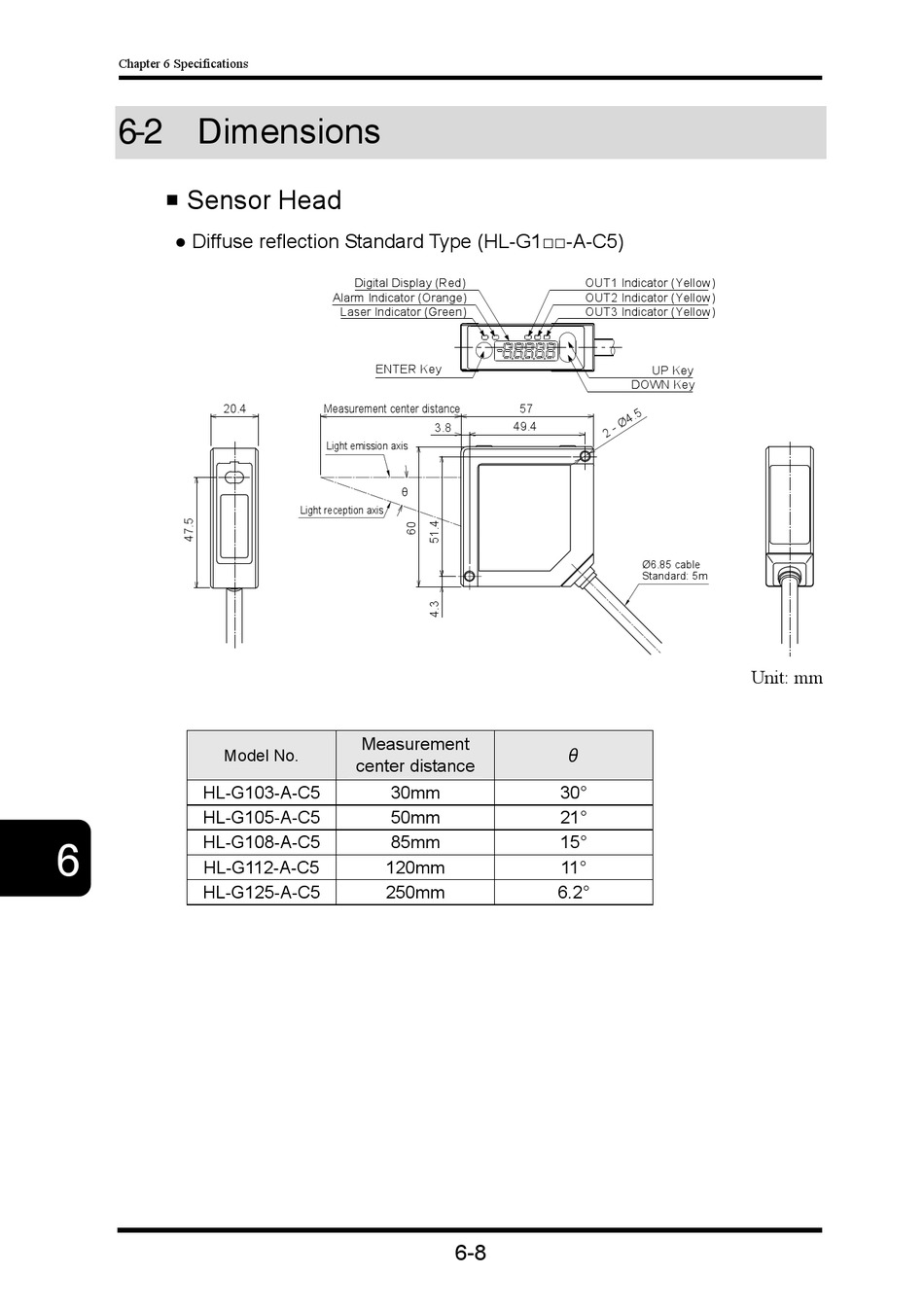

Dimensions; Sensor Head - Panasonic HL-G1 A-C5 Series User Manual

Chapter 6 Specifications
6-2

Dimensions

 Sensor Head
● Diffuse reflection Standard Type (HL-G1□□-A-C5)
20.4
Model No.
HL-G103-A-C5
HL-G105-A-C5
HL-G108-A-C5
6
HL-G112-A-C5
HL-G125-A-C5
Digital Display (Red)
Alarm Indicator (Orange)
Laser Indicator (Green)
ENTER Key
Measurement center distance
3.8
Light emission axis
θ
Light reception axis
Measurement
center distance
30mm
50mm
85mm
120mm
250mm
6-8
OUT1 Indicator (Yellow)
OUT2 Indicator (Yellow)
OUT3 Indicator (Yellow)
UP Key
DOWN Key
57
49.4
Ø6.85 cable
Standard: 5m
θ
30°
21°
15°
11°
6.2°
Unit: mm
