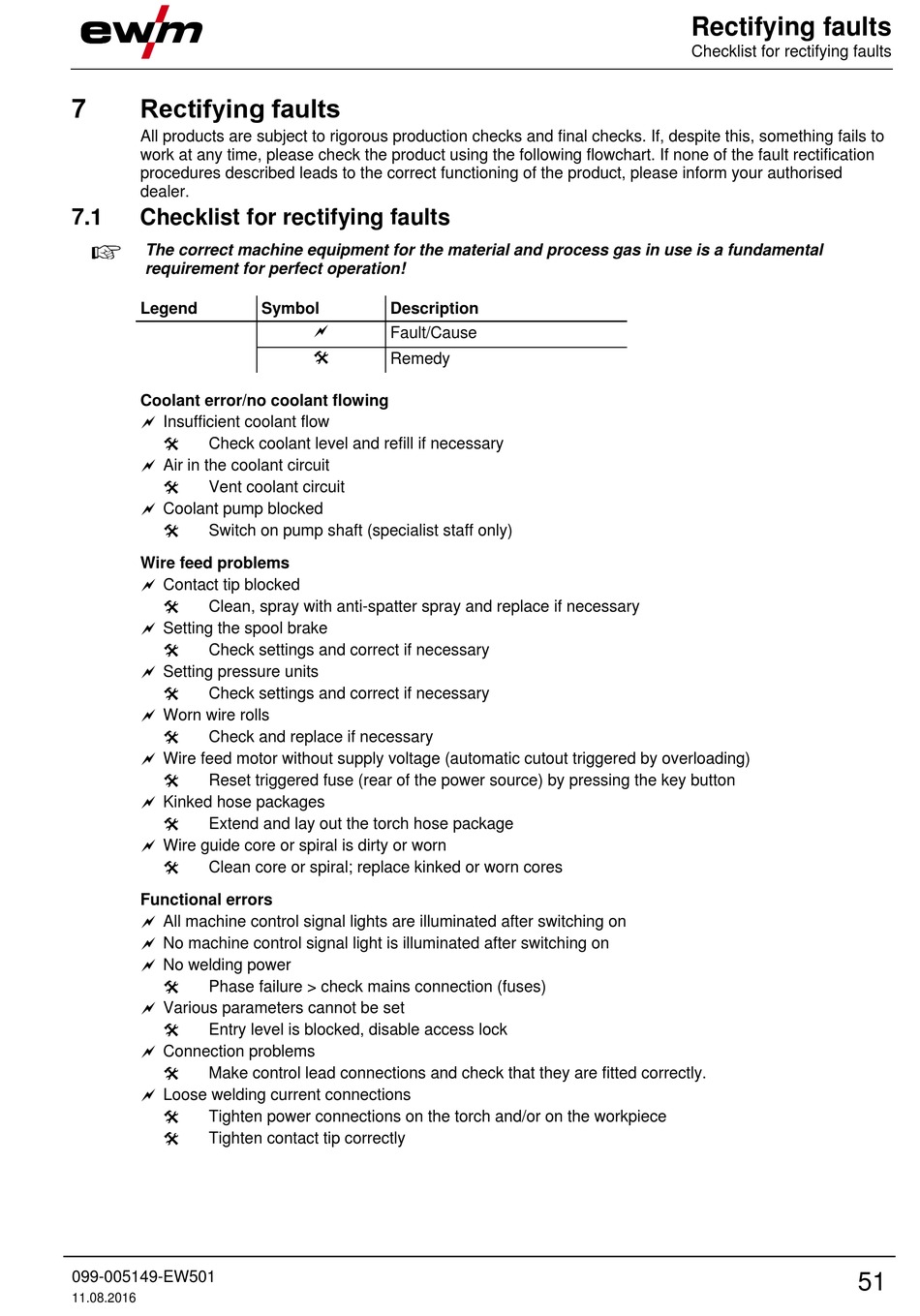

Rectifying faults
7
All products are subject to rigorous production checks and final checks. If, despite this, something fails to
work at any time, please check the product using the following flowchart. If none of the fault rectification
procedures described leads to the correct functioning of the product, please inform your authorised
dealer.
7.1
Checklist for rectifying faults
The correct machine equipment for the material and process gas in use is a fundamental
requirement for perfect operation!
Legend
Coolant error/no coolant flowing
Insufficient coolant flow
Check coolant level and refill if necessary
A ir in the coolant circuit
Vent coolant circuit
Coolant pump blocked
Switch on pump shaft (specialist staff only)
Wire feed problems
Contact tip blocked
Clean, spray with anti-spatter spray and replace if necessary
Setting the spool brake
Check settings and correct if necessary
Setting pressure units
Check settings and correct if necessary
Worn wire rolls
Check and replace if necessary
Wire feed motor without supply voltage (automatic cutout triggered by overloading)
Reset triggered fuse (rear of the power source) by pressing the key button
Kinked hose packages
Extend and lay out the torch hose package
Wire guide core or spiral is dirty or worn
Clean core or spiral; replace kinked or worn cores
Functional errors
All machine control signal lights are illuminated after switching on
No machine control signal light is illuminated after switching on
No welding power
Phase failure > check mains connection (fuses)
Various parameters cannot be set
Entry level is blocked, disable access lock
Connection problems
Make control lead connections and check that they are fitted correctly.
L oose welding current connections
Tighten power connections on the torch and/or on the workpiece
Tighten contact tip correctly
099-005149-EW501
11.08.2016
Symbol
Description
Fault/Cause
Remedy
Rectifying faults
Checklist for rectifying faults
51
