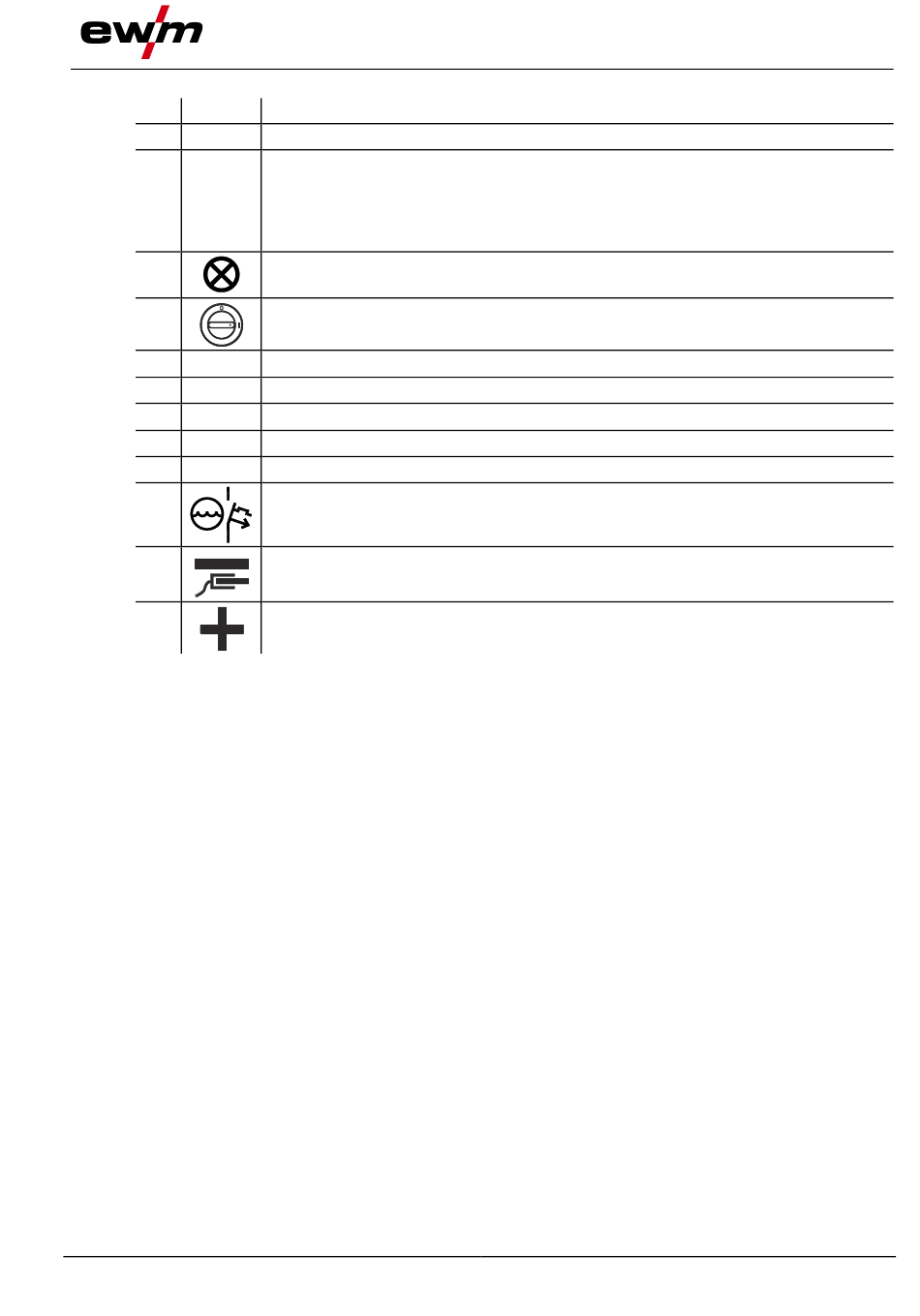

Machine description – quick overview
Description 0
Lifting lug
Voltage reduction device (VRD) signal light
The VRD signal light is illuminated when the voltage reduction device is operating
without fault and the output voltage is reduced to a value specified in the relevant
standard (see technical data). The voltage reduction device is only active on VRD
machine versions.
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Main switch, machine on/off
Carrying handle
Cooling air inlet
Wheels, guide castors
Coolant tank
Coolant tank cap
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
Connection socket, "-" welding current
Connection socket, "+" welding current
Front view
