Power-saving mode (Standby)

5.7 Power-saving mode (Standby)
You can activate the power-saving mode by either pressing the push-button > see 5.6 chapter for a
prolonged time or by setting a parameter in the machine configuration menu (time-controlled power-
saving mode
When power-saving mode is activated, the machine displays show the horizontal digit in the
centre of the display only.
Pressing any operating element (e.g. tapping the torch trigger) deactivates power-saving mode and the
machine is ready for welding again.
5.7.1

Aligning the cable resistance

The resistance value of the cables can be set directly or be aligned by the power source. In the delivery
status the cable resistance of the power source is set to 8 mOhm. This value corresponds to a grounding
cable of 5 m, an intermediate hose package of 1.5 m and a water-cooled welding torch of 3 m. The
electric cable resistance should be aligned again whenever an accessory component, such as the
welding torch or the intermediate hose package, has been changed.
1
0
2
3
4
46
) > see 5.6 chapter.
l
+
0
l
B
A

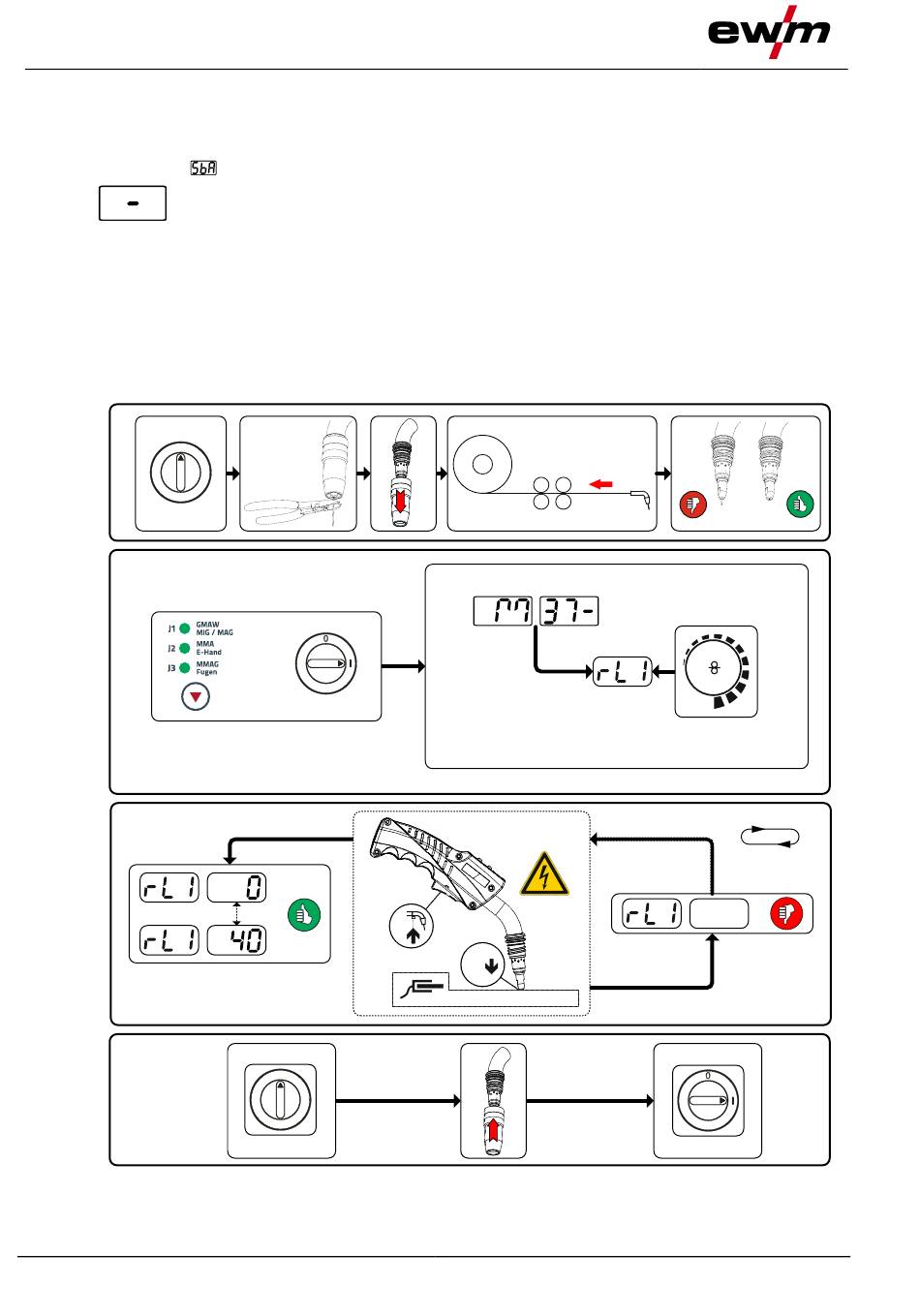

Figure 5-26
50mm
099-005149-EW501
11.08.2016
