5.3.1

Connecting the electrode holder and workpiece lead

Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
Item Symbol
1
2
3
4
•
Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
•
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
099-005149-EW501
11.08.2016
Description 0
Connection socket, "+" welding current
Connection socket, "-" welding current
Workpiece
Electrode holder
Design and function

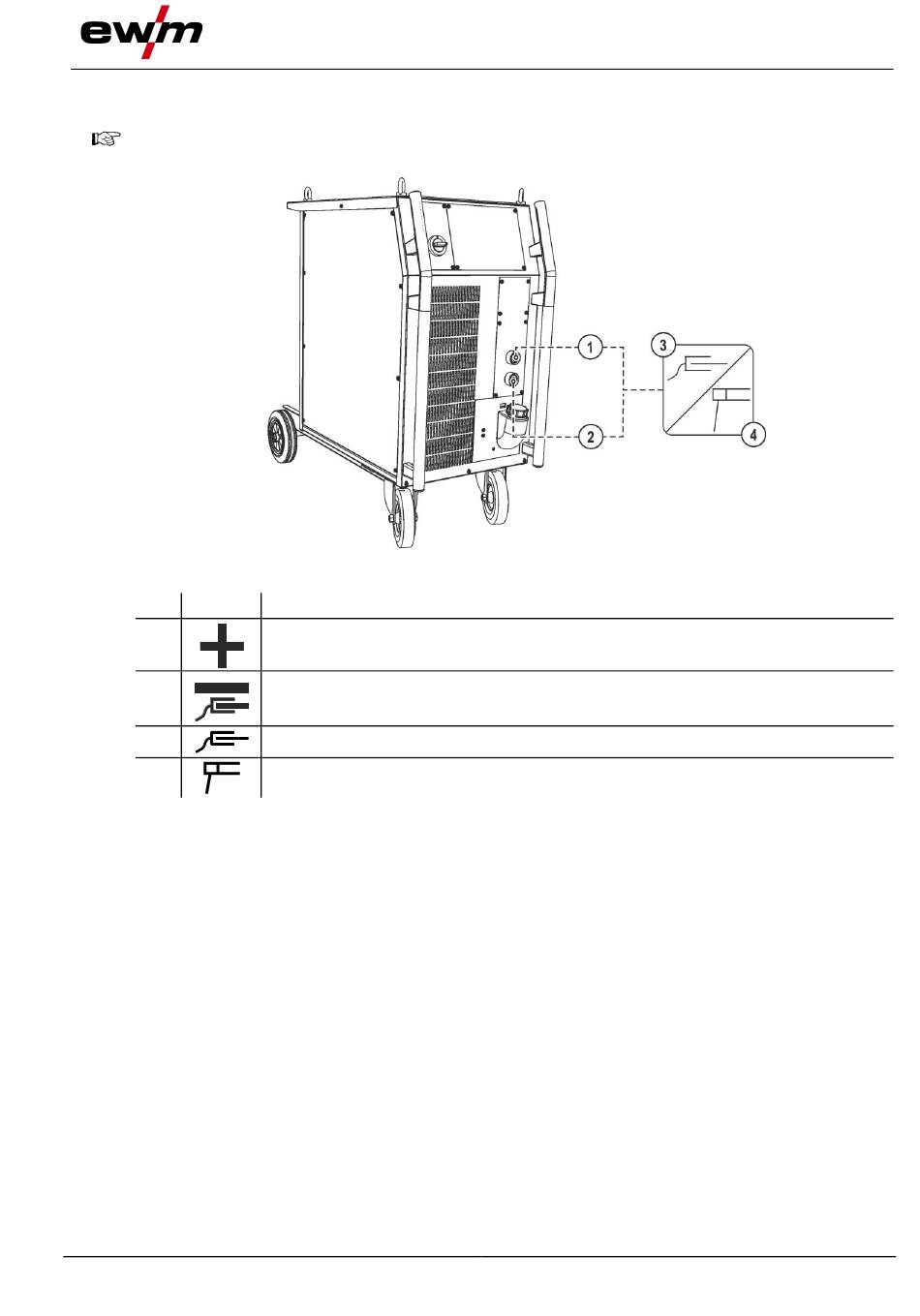

Figure 5-16
MMA welding
