Air arc gouging

Please note the relevant documentation of the accessory components.
During gouging, an arc burns between a carbon electrode and the workpiece, heating the workpiece until
it is molten. At the same time, the molten metal is blown out with compressed air. Special electrode
holders with a compressed-air connection and carbon electrodes are required for gouging.
5.3.6.1

Connection

Item Symbol
1
2
3
4
•
Insert the gouging torch cable plug into the "+" welding current connection socket and lock in place by
turning to the right.
•
Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
099-005149-EW501
11.08.2016
Description 0
Workpiece
Connection socket, "-" welding current
Gouging torch
Connection socket, "+" welding current
Design and function

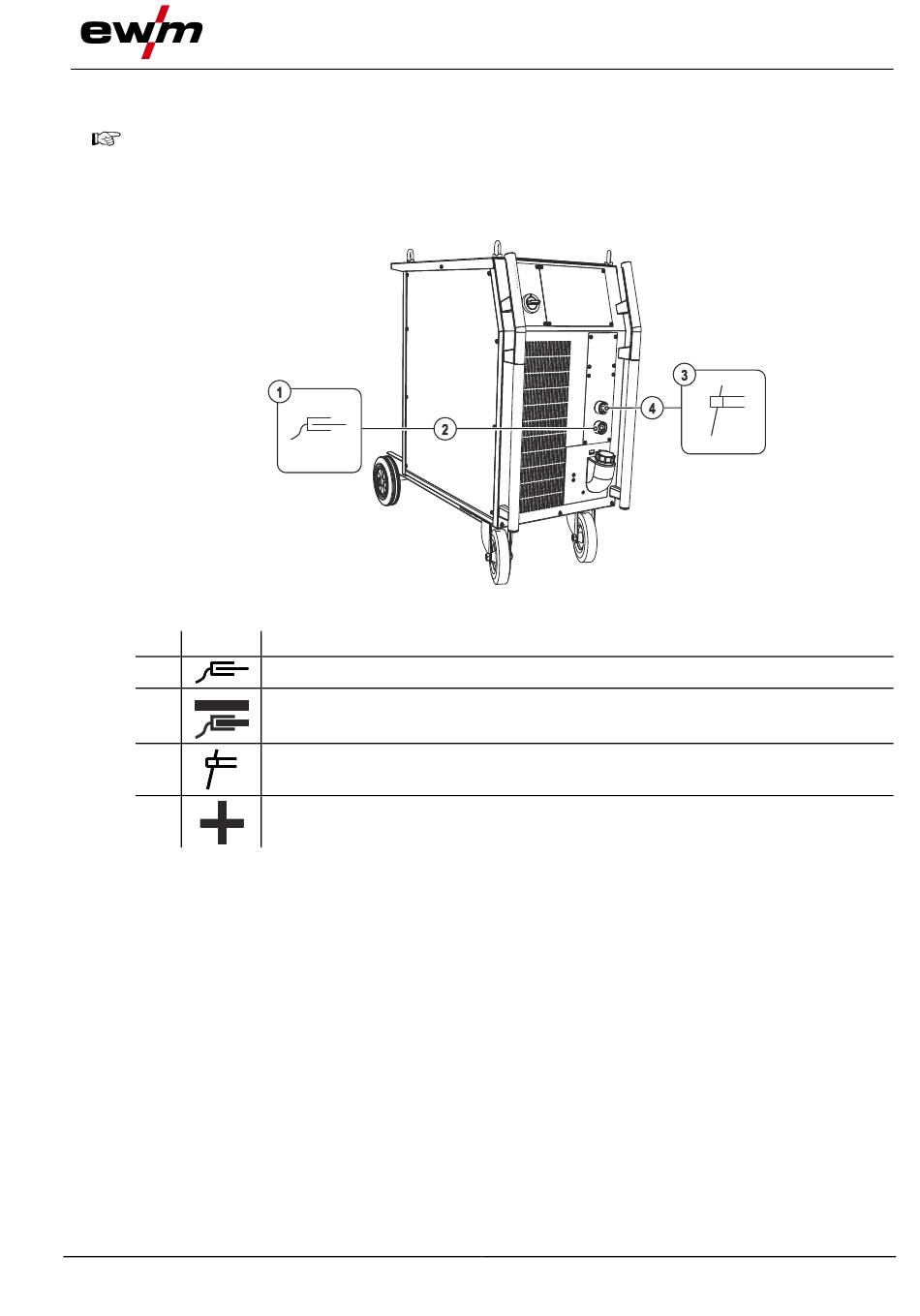

Figure 5-21
MMA welding
