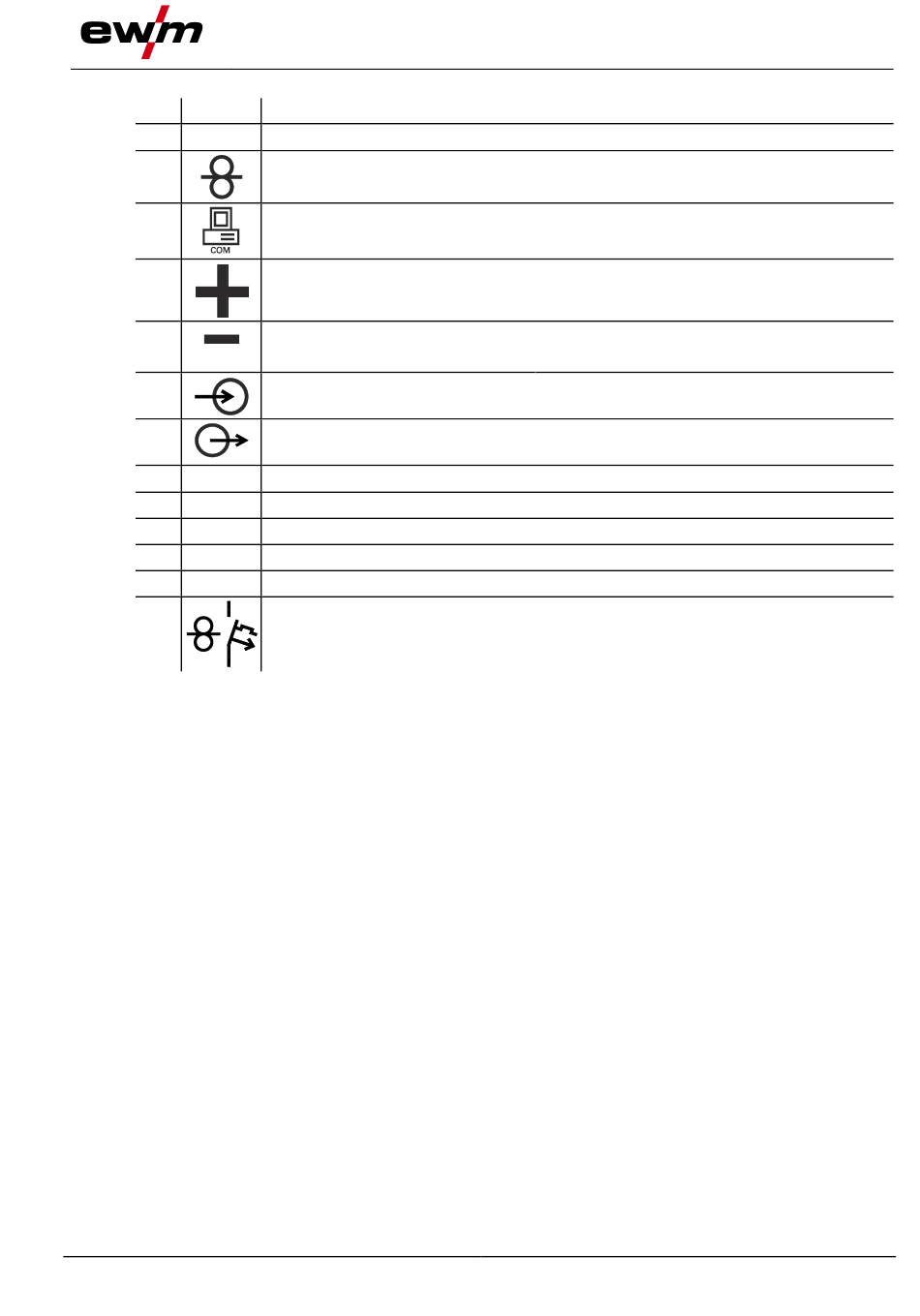

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
099-005149-EW501
11.08.2016
Machine description – quick overview
Description 0
Intermediate hose package strain relief
19-pole connection socket (analogue)
Wire feed unit control lead connection
D-sub connection socket, 9-pole
With this machine series for maintenance purposes only (specialist staff)
Connector plug, welding current "+"
Welding current connection on wire feed unit
Connection socket, "-" welding current
•
MIG/MAG cored wire welding:
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wheels, fixed castors
Bracket for shielding gas cylinder
Cooling air outlet
Mains connection cable > see 5.1.8 chapter
Securing elements for shielding gas cylinder (strap/chain)
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
Welding current to wire feed/torch
Rear view
