Item Symbol
7
8
9
10
11
12
099-005149-EW501
11.08.2016

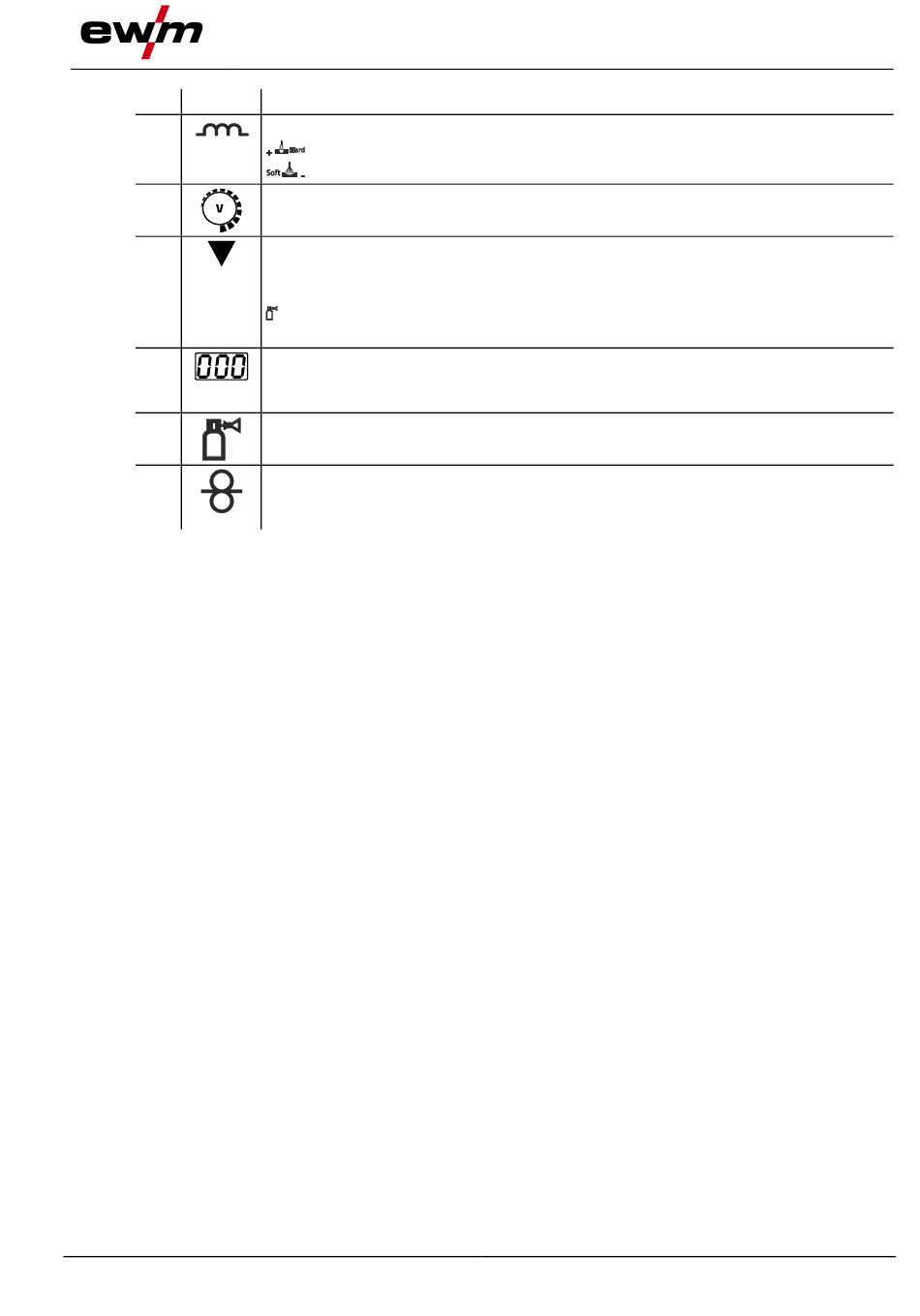

Machine description – quick overview
Description 0
Push-button, throttling effect (arc dynamics)
----- Arc is harder and more narrow
----- Arc is softer and wider
Rotary dial, arc length
No function. Setting is made on the wire feed unit.
Push-button, parameter selection right/power-saving mode
VOLT ---- Welding voltage
kW ------- Welding power display
---------- Gas flow rate (option)
Enter power-saving mode by pressing the push-button for long interval.
Display, right
Welding voltage, welding performance, motor current (wire feed mechanism) during
wire inching, shielding gas flow rate (option)
Push-button gas test / rinse hose package > see 5.1.9.4 chapter
Push-button, wire inching
Potential- and gas-free inching of the wire electrode through the hose package to the
welding torch.
Machine control – Operating elements
