Shock sensor harness, 4-pin connector

H GREEN
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while
inputs longer than 0.8 seconds will trigger full alarm sequence and report Zone

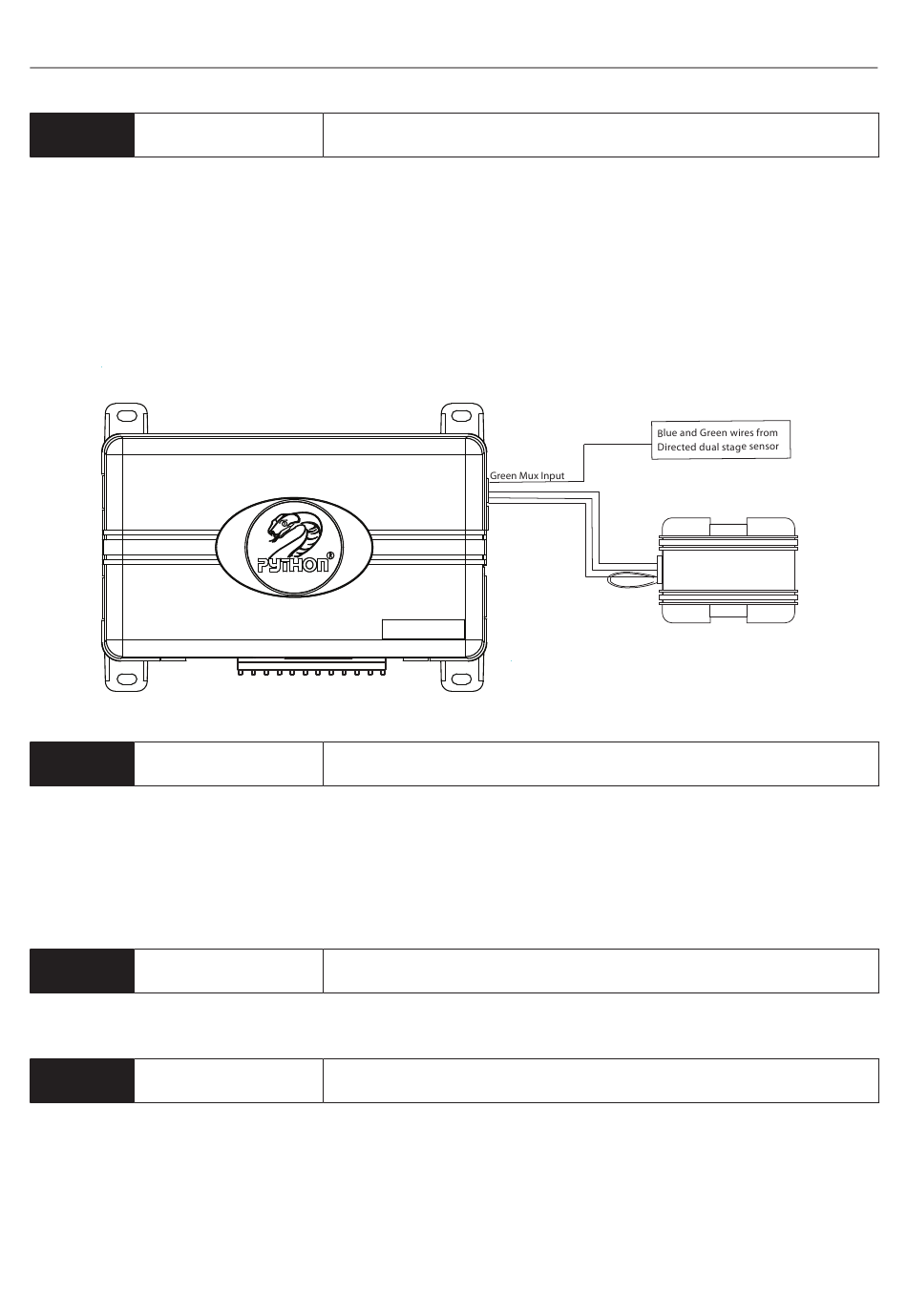

4. If installing an optional Directed Electronics dual stage sensor, connect to the
green wire as shown below. When you use this connection it eliminates the
need for diodes to isolate the sensors.
H BLUE
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while
inputs longer than 0.8 seconds will trigger full alarm sequence and will also
report Zone Two.
H RED
Do not use these for anything besides the plug-in shock sensor.
H BLACK
Do not use these for anything besides the plug-in shock sensor.
© 2009 Directed Electronics. All rights reserved.
(-) MULTIPLEX INPUT, ZONE 4
533
(-) MULTIPLEX INPUT, ZONE 2
(+) 12V CONSTANT
(-) GROUND
