Programmer Interface, 3-Pin Port

The BLACK three-pin port is provided for programming of the unit. When using the 998T

Bitwriter, it is possible to configure any and all of the programmable functions. For more infor-

mation please refer to the guide packaged with the programmer. This port can also be used to interface

with Directed Video components for on-screen security system programming and trigger information.

GREEN (-) multiplex input, zone 2

Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8

seconds will trigger full alarm sequence and report Zone Two. If installing an optional Directed

dual-stage sensor, connect to the green wire as shown below. The diagram below eliminates the need

for diodes to isolate the sensors.

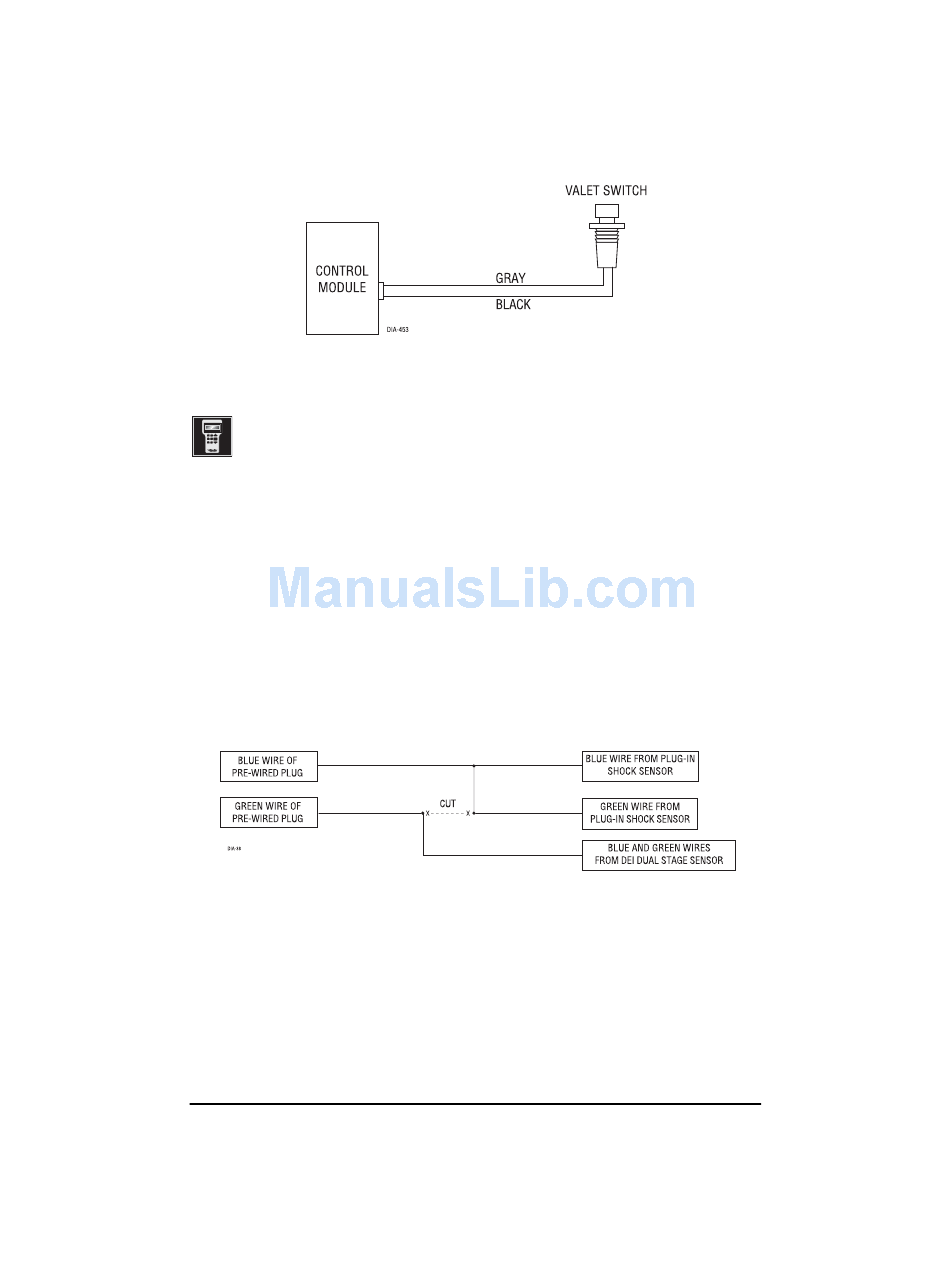

Diagram for adding optional Directed dual-stage sensor to GREEN wire (Zone 2):

BLUE (-) multiplex input, zone 2

Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8

seconds will trigger full alarm sequence and will also report Zone Two.

RED and BLACK: RED is (+)12V constant, BLACK is (-) ground

Do not use these for anything besides the plug-in shock sensor.

2003

Directed Electronics, Inc.
