Summary of Contents for Directed Electronics 544T
- Page 1 5 5 5 5 4 4 T T O O w w n n e e r r ’ ’ s s G G u u i i d d e e...
- Page 3 l l i i m m i i t t e e d d l l i i f f e e t t i i m m e e c c o o n n s s u u m m e e r r w w a a r r r r a a n n t t y y Directed Electronics, Inc.
- Page 4 CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE.
-
Page 5: Table Of Contents
t t a a b b l l e e o o f f c c o o n n t t e e n n t t s s t t r r a a n n s s c c e e i i v v e e r r d d i i a a g g r r a a m m ....... . 2 2 s s t t a a n n d d a a r r d d t t r r a a n n s s c c e e i i v v e e r r c c o o n n f f i i g g u u r r a a t t i i o o n n s s . - Page 6 t t r r a a n n s s c c e e i i v v e e r r d d i i a a g g r r a a m m © 2002 directed electronics, inc.
- Page 7 s s t t a a n n d d a a r r d d t t r r a a n n s s c c e e i i v v e e r r c c o o n n f f i i g g u u r r a a t t i i o o n n s s Vehicle Interior Temperature Indicator Numeric Display AM/PM Indicator...
- Page 8 w w h h a a t t i i s s i i n n c c l l u u d d e e d d Control module A.S.K. Receiver One four-button two-way transceiver One four-button transmitter Stinger™ DoubleGuard® two-stage shock sensor Revenger™...
-
Page 9: Warning! Safety First
warning! safety first The following safety warnings must be observed at all times: warning! THIS SYSTEM PROVIDES REMOTE NOTI- FICATION OF SECURITY SYSTEM TRIGGER EVENTS. CONTACT POLICE OR SECURITY PER- SONNEL IMMEDIATELY. NEVER CONFRONT A CAR THIEF OR VANDAL. Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. - Page 10 injury, or death. (1) Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user must also have the neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear.
-
Page 11: System Maintenance
D D E E A A L L E E R R T T O O R R E E P P A A I I R R O O R R D D I I S S C C O O N N N N E E C C T T T T H H E E I I N N S S T T A A L L L L E E D D R R E E M M O O T T E E S S T T A A R R T T M M O O D D U U L L E E . -
Page 12: Fcc/Id Notice
will not be validated if your warranty registration is not returned. Make sure you receive the warranty registration from your dealer. It is also necessary to keep your proof of purchase, which reflects that the product was installed by an authorized dealer. fcc/id notice This device complies with Part 15 of FCC rules. -
Page 13: Standard Button Configurations

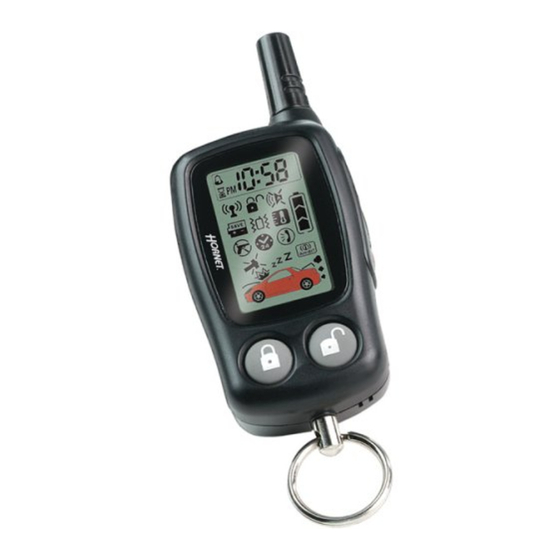

t t r r a a n n s s c c e e i i v v e e r r f f u u n n c c t t i i o o n n s s The transceiver buttons are used to send commands to the system. - Page 14 Buttons The remote start function of the system is controlled by pressing these buttons simultaneously for one second. Buttons When pressed simultaneously these buttons activate remote start timer mode, engaging the remote start function every 24 hours. Buttons When pressed simultaneously these buttons display the internal temperature of the vehicle on the LCD.
-
Page 15: Standard Icon Configurations
Buttons When pressed simultaneously these buttons toggle between beep notification and vibrate notification. Buttons When pressed simultaneously these buttons activate battery saver mode, which will drop power consumption on the transceiver battery to zero when the alarm is inactive or disarmed. standard icon configurations Icon The vehicle interior temperature icon displays the temperature of... - Page 16 Icon The transmit range indicator icon stays visible as long as the system is within operating range. Icon The remote transmission indicator icon displays when the trans- ceiver is transmitting a signal. Icon The vibrate/beep mode icon appears when the transceiver is set to vibrate mode.
- Page 17 Icons The hood/trunk open or trigger icon illuminates when the hood or trunk trigger has been activated or the hood or trunk is open, and bypasses those zones until it is closed. Icon The parking light icon will flash twice when armed or disarmed. The icon also flashes during WarnAway and at the beginning and end of remote start cycles.
- Page 18 Icon The temperature-controlled remote start icon indicates that the system has entered the temperature remote start mode and auto- matically starts the vehicle if the temperature of the vehicle drops below 0 degrees Fahrenheit. Icon The silent arm/disarm icon appears when the system has been armed or disarmed in the silent mode.
-
Page 19: Function Button Configurations
function button configurations F F u u n n c c t t i i o o n n B B u u t t t t o o n n Lamp On (10 sec) Power-Saver Mode* Beep/Vibrate Mode Time Adjust for 5 Seconds Mode (hour)** Time Adjust... - Page 20 Remote Start On 10 times*** Melody Selection 2 10 Min Parking 1 Time Count Down Mode 20 Min Parking 2 Times Count Down Mode 30 Min Parking 3 Times Count Down Mode 60 Min Parking 4 Times Count Down Mode 90 Min Parking 5 Times Count Down Mode...
-
Page 21: System Signal Paging Features
r r e e m m o o t t e e o o p p e e r r a a t t i i o o n n The 554 remote start system operates at 434 MHz and incorpo- rates Directed’s proprietary A.S.K. -
Page 22: Active Arming
u u s s i i n n g g y y o o u u r r s s y y s s t t e e m m active arming Press for one second to arm the system. The vehicle’s lights will flash once, the doors will lock, the siren will chirp once, and while the system is armed, the status LED will blink approxi- mately once per second to indicate the system is actively... -
Page 23: Vehicle Protection
3. The status LED will blink at twice its normal rate indicating the system has begun the 30 second countdown. 4. After 20 seconds the siren will chirp once (unless programmed off ) as an audible indication that the system is about to arm. -
Page 24: Warn Away Response Description
When triggered, the siren chirps and the parking lights flash for a few seconds. T T r r i i g g g g e e r r e e d d S S e e q q u u e e n n c c e e - Heavy impacts trip a Triggered Sequence. -
Page 25: Triggered Response Description
note: Icons 13 and 14 represent alarm system zone inputs. For more information about icons and the zones they represent refer to the Standard Remote Configurations section. triggered response description A Triggered Response can be activated by any of the triggers listed below and consists of an alarm page along with the response described for each trigger. -
Page 26: Arming/Disarming While Driving
When a Triggered Response is activated the transceiver will: Repeat four quick beeps (or vibrate) for 15 seconds. The full trigger alert icon (28) will turn on for 15 seconds The zone icons will turn on and remain on until a transceiver button is pressed, clearing the page alert. -
Page 27: Multi-Level Security Arming
Disarming while driving Press on the transceiver or simply turn off the ignition to disarm the system. The lights will flash twice, the doors will unlock, the siren will chirp twice, and the status LED will turn off. The transceiver will beep twice (or vibrate). The disarm icon (29) will be displayed on the LCD. -
Page 28: Disarming
Press a fourth time within five seconds: The siren chirps four times followed by a long chirp. Zones 2 and 4 are now bypassed. Press a fifth time within five seconds: The siren chirps five times followed by a long chirp. All input zones, except the ignition, are now bypassed. -
Page 29: 2002 Directed Electronics, Inc
high security disarm This security system offers High Security Disarm. High Security Disarm is a feature that makes it possible to silence and reset the system while it is triggered, without disarming the system. If the system is triggered and the siren has been sounding for longer than six seconds, press any button on the transceiver to stop the page, then press on the transceiver to stop the trigger and... -
Page 30: Silent Mode
To disarm the security system, turn the ignition to the ON posi- tion. Press the Valet button the preset number of times (one to five times) within five seconds. The factory preset is one. After five seconds, the system will disarm. If the system does not disarm, you may have waited too long;... -
Page 31: Panic Mode
note: The Warn Away response to lighter impacts is ® bypassed if the system is armed using Silent Mode. This ensures that no chirps will be emitted by the siren in an area you want chirp-free. The system is still fully capable of triggering. - Page 32 To enter or exit Valet mode: 1. Turn the ignition on. 2. Turn the ignition off. 3. Press and release the Valet switch within 10 seconds. The status LED will light solidly if you are entering Valet mode, and it will go out if you are exiting Valet mode. The transceiver will not generate a page notification when entering or exiting Valet mode using the Valet switch.
-
Page 33: Remote Start
remote start This feature allows you to remotely start and run your vehicle for a programmable period of time. This makes it possible to warm up the engine, as well as adjust the interior temperature of the vehicle with the climate control system. If interior heating or cooling is desired, the climate controls must be preset, and the fan blower must be set to the desired level prior to remote starting the vehicle. - Page 34 5. Once the vehicle has started, it will run for the pre-program- med period of time (either 12, 24, or 60 minutes - see Programming Options section of this guide) or until a shut- down input is triggered. When using the Directed Bitwriter, the run time can be programmed from 1-60 minutes.
-
Page 35: Valet Take-Over
Transceiver buttons the vehicle. The transceiver will generate a page notification with a unique melody (or vibrate) and the remote start icon (19) will turn off when the remote start shuts down. valet take-over The Valet ® Take-Over feature allows the vehicle to remain running after the key has been removed from the ignition. -
Page 36: Setting The Clock
setting the clock To set the clock press and hold ceiver will chirp twice and the hour selection will start flashing. Immediately press to advance the hour selection or reverse the hour selection. Once the correct hour is displayed press again and the minute selection will start flashing. -
Page 37: Starter Anti-Grind Circuitry
s s a a f f e e t t y y f f e e a a t t u u r r e e s s This system has several important safety features to ensure proper operation of the motor and prevent accidental damage to the engine or its components. -
Page 38: Over And Under Rev Protection
over and under rev protection The system monitors the engine speed and will automatically shut the engine off if the RPMs rise above or fall below the programmed levels. This feature prevents damage to the motor due to fuel delivery system failures or other problems which may cause the engine to race. - Page 39 Example If the alarm triggers three times within a 60-minute period and each time the same sensor or switch triggers the alarm, NPC will interpret those triggers as false alarms. After the third trigger, ignores, or bypasses, that sensor or switch (along with any ™...
-
Page 40: Arming Diagnostics
d d i i a a g g n n o o s s t t i i c c s s The microprocessor at the heart of your system is constantly monitoring all of the switches and sensors connected to it. It is designed to detect any faulty switches and sensors and prevents them from disabling the entire system. -
Page 41: System Status Chirps
triggered so many times that the Nuisance Protection Circuitry has bypassed that zone. In either case, the status LED and trans- ceiver LCD will indicate which zone was triggered (see Table of Zones section). The security system will retain this information in its memory and chirp four or five times each time it is dis- armed, until the next time that the ignition is turned on. -
Page 42: Interpreting Zone Diagnostics
ZONE (Number of DESCRIPTION LED Flashes) Instant trigger - hood pinswitch Instant trigger - a heavier impact detected by the shock sensor Door switch trigger Instant trigger - for optional sensors Ignition trigger interpreting zone diagnostics Warn Away responses are not reported by the arming or disarming diagnostics. - Page 43 Arming and disarming diagnostics (including Warn Away responses) are reported by the transceiver on the LCD. When a Bypass Notification is generated during arming the transceiver LCD will flash until the alarm is reset by the ignition. To review zones that have been bypassed press seconds after arming the system.
- Page 44 range of the vehicle. The alarm will automatically re-sync and respond to the transceivers normally. o o w w n n e e r r r r e e c c o o g g n n i i t t i i o o n n Owner Recognition is a revolutionary new feature available only from Directed.
- Page 45 as servicing the car, when the battery is reconnected the unit will still be in Valet ® Mode. This applies to all states of the system including arm, disarm, and Valet ® p p o o w w e e r r s s a a v v e e r r m m o o d d e e Your system will automatically enter Power Saver Mode while armed or in Valet Mode, after a period of time in which no...
- Page 46 p p r r o o g g r r a a m m m m i i n n g g o o p p t t i i o o n n s s Programming options control your system's normal, operational set-up.
- Page 47 Forced passive arming o o n n or off. If your security system is programmed for passive arming and the forced passive arming feature has been programmed on, the system will passively arm after one hour, even if a protected entry has been left open.
- Page 48 car, it will be necessary to disarm the system with the trans- ceiver. It is also possible to disarm the AED feature by turning the ignition key to the RUN position and pressing the Valet button the programmed number of times. AED ®...
- Page 49 s s e e c c u u r r i i t t y y & & c c o o n n v v e e n n i i e e n n c c e e e e x x p p a a n n s s i i o o n n s s Listed below are some of the many expansion options available.
- Page 50 Although the on-board relay can control most power trunk re- leases, sometimes an optional relay is required. If the factory release is not power-activated, Directed solenoid can often be added. Automatic power window control is pro- Power Window Control: vided with the 529T and 530T systems. These can operate power windows, and can roll them up automatically when the system is armed, roll them down, or both up and down.
- Page 51 A physical connection to the system. An input can be Input: provided by a sensor, pinswitch or by existing systems in the vehicle, such as ignition or courtesy lights. A red light mounted at a discretionary location inside the LED: vehicle.
- Page 52 Lighter impacts to the vehicle will generate Warn Away Response: the Warn Away response. It consists of several seconds of siren chirps and parking light flashes. A zone is a separate input that the alarm can recognize as Zone: unique. Each input to the system is connected to a particular zone.
- Page 53 © 2002 directed electronics, inc.
- Page 54 The company behind this system is Directed Electronics, Inc. Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, Directed is ISO 9001 registered.
