Shock Sensor Harness, 4-Pin Connector; Tach Learning - Directed Electronics Python 990 Installation Manual

shock sensor harness, 4-pin connector

GREEN (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8 seconds will
trigger full alarm sequence and report Zone Two. If installing an optional Directed Electronics dual stage sensor,
connect to the green wire as shown below. The diagram below eliminates the need for diodes to isolate the sensors.

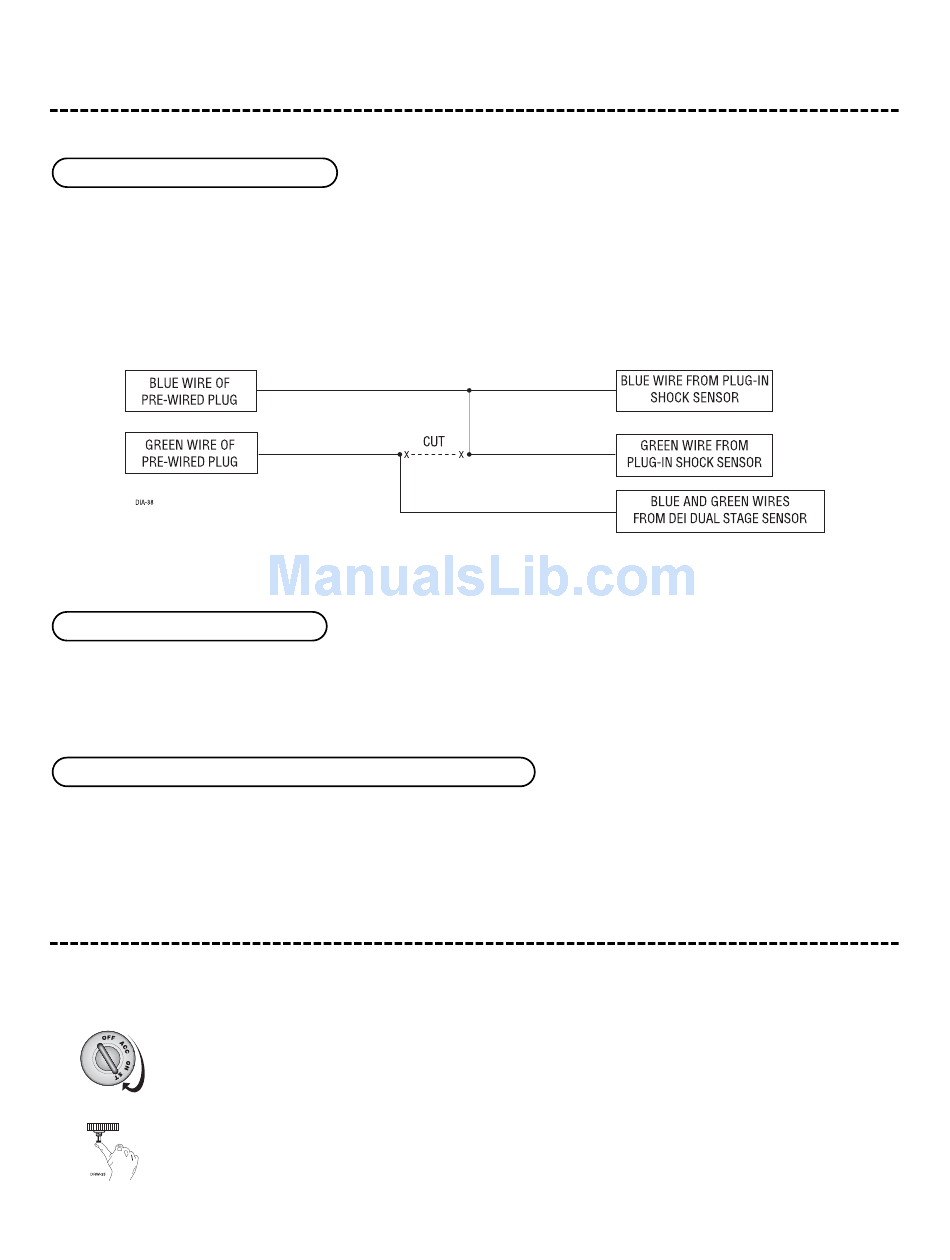

Diagram for adding optional Directed Electronics dual stage sensor to green wire (Zone 2):
BLUE (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8 seconds will
trigger full alarm sequence and will also report Zone Two.
RED and BLACK: RED is (+)12V constant, BLACK is (-) ground
Do not use these for anything besides the plug-in shock sensor.

tach learning

To learn the tach signal:
1.
DRW-96
2.
32
Start the vehicle with the key.
Within 5 seconds, press and HOLD the Valet/Program switch.
