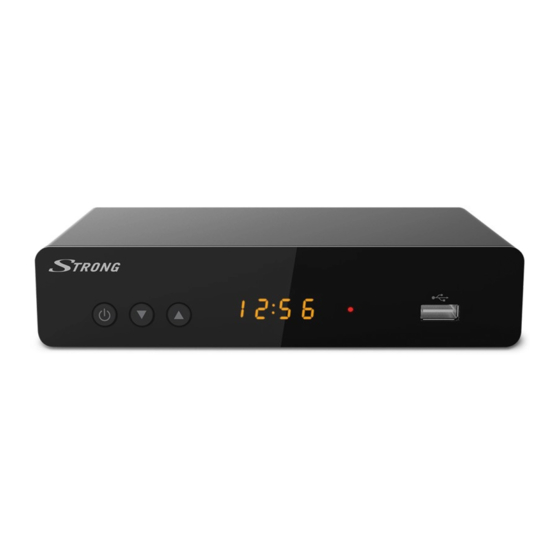

Digital Terrestrial HD Twin Tuner Receiver
SRT 8222
User Manual
Instrukcja obsługi
Bedienungsanleitung
Návod k obsluze
Manuel d'utilisation
Používateľská príručka
Manuale d'uso
Használati útmutató
Manual del Usuario
Посібник користувача
Manual do Utilizador
Ръководство за употреба
Bruksanvisning
Руководство пользователя
Advertisement
Table of Contents
Related Manuals for Strong SRT 8222
Summary of Contents for Strong SRT 8222
- Page 1 Digital Terrestrial HD Twin Tuner Receiver SRT 8222 User Manual Instrukcja obsługi Bedienungsanleitung Návod k obsluze Manuel d'utilisation Používateľská príručka Manuale d'uso Használati útmutató Manual del Usuario Посібник користувача Manual do Utilizador Ръководство за употреба Bruksanvisning Руководство пользователя...
- Page 4 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna Austria Email: support_at@strong.tv 02 Feb 2022 10:47...
- Page 5 Licenses THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO.
-
Page 6: Table Of Contents
Hereby, STRONG declares that the device SRT 8222 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. -
Page 7: Introduction
1.0 INTRODUCTION 1.1 Safety Instructions Read all of the instructions before operating the device. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ exclusive supply adapter, battery etc.). Please refer to the information on the product enclosure for electrical and safety information „... -
Page 8: Storage
It is a necessity that you only use an approved extension and compatible wiring that is suitable „ for the electrical power consumption of the installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate at the back of the device. -
Page 9: Usage Of External Usb Devices
„ Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information. Please ensure that either the USB device is already formatted to NTFS or FAT32 or format the USB „... -
Page 10: Remote Control
6. TV SCART To connect your receiver with your TV set using a SCART cable. 7. Power Cord Your receiver requires a voltage of 220~240 V AC (Auto- selectable), 50/60 Hz +/-5%. Check the local power specification before connecting your receiver to the wall outlet. 2.4 Remote Control Fig. 3 1. -
Page 11: Installing The Batteries
2.5 Installing the batteries Fig. 4 Open the cover on the remote control and insert 2x AAA type batteries into the compartment. Observe correct polarity of the batteries when inserting. A terminal diagram is shown inside the compartment. 1. Remove the cover. 2. -
Page 12: Connecting To A Digital Audio Amplifier With S/Pdif
For proper functioning of Timeshift and recording functions, a fast USB device (such as a hard disk drive) is needed. Interrupted playback or a distorted picture during playback or Timeshift are indications for a low device speed. STRONG cannot guarantee proper functioning of recording and or Timeshift functions with all USB devices. -
Page 13: Starting Up For The First Time
5.0 QUICK GUIDE TO USING YOUR RECEIVER We at STRONG understand that you can't wait to enjoy your new high definition digital terrestrial receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your receiver. -
Page 14: Operation
6.0 OPERATION Your new receiver is equipped with several features to make watching TV a true pleasure. This paragraph describes these features. Please also read chapter 7.0 to get familiar with the menu of your receiver. 6.1 Changing channels Your new receiver is equipped with four ways to change channels. Via direct access using the 0~9 buttons. -
Page 15: Teletext
6.4 Teletext Your receiver includes a fully featured Teletext. To access Teletext, press the TEXT button in viewing mode and use the 0~9 buttons to input the number of the page you wish to see. The coloured buttons of the remote control allow you to jump to selected pages immediately, as indicated on the bottom of the teletext screen. -
Page 16: Sleep
6.9 Sleep Press SLEEP repeatedly to select an automatic switch off time, at which the unit will go to standby. Default is OFF. 7.0 MAIN MENU The main menu gives you access to settings and multimedia functions. To access the main menu, press MENU in viewing mode. -
Page 17: Epg (Electronic Programme Guide)
NOTE: Deleted channels can only be retrieved if you do a frequency scan in the Channel Search menu again. Adding channels to favourite lists Channels from the can be added to up to 4 different favourite groups. Press FAV in Programme Edit to access the function. -
Page 18: Picture
NOTE: For successful editing of channel list (see ch 7.1), switch Off LCN function. 7.4 Picture Use this menu to match your receiver to your TV set. The following settings are available: Aspect Ratio: Select the aspect ratio that matches your TV. This There is either a 4:3 or a 16:9 possibility. -
Page 19: Time
installed in the channel list and afterwards you can create a new favourite list if you like. Press OK to start the scan. Manual Search Select a particular channel to do a search on just one (known) frequency. Press OK to start the scan. The signal quality bar might be useful to check if the frequency is indeed in use. -
Page 20: System
RAW HDMI Off No audio will be forwarded to the outputs. Audio Description AD. Useful for the visual impaired. If you like to have support of an audio track that describes the content on screen, select the volume from the AD audio track. -
Page 21: Usb
settings, switch DHCP to Off and to Edit, press GREEN and enter the required numbers. However, some technical knowledge about TCP/IP protocols is required. MAC Address Information about the unit's unique identification to the LAN port. Status Information about the current status of your Ethernet connection. 7.9 USB Multimedia This function allows playback of different kind of files from the connected USB storage device. -
Page 22: Troubleshooting
If the receiver does not work properly after checking it, please contact your dealer or the local Service Hotline or send email to our Support via www.strong.tv. Do NOT try to open or disassemble the receiver. It may cause a dangerous situation and warranty will be void. - Page 23 Problem Possible cause What to do Press the INFO key on the remote control The picture and The transmission signals are sound remain too weak or have reflections/ 3x to call up signal bars to visually assess frozen, or macro interference.
- Page 24 Forgotten PIN code/password. the user manual of your Device). Contact your local Service Hotline or send an email to our Support via www.strong.tv Forgotten Contact your local Service Hotline or send channel lock an email to our Support via www.strong.tv code.
-
Page 25: Technical Specifications
9.0 TECHNICAL SPECIFICATIONS Demodulator: Demodulator: COFDM; 16 QAM/64 QAM; QPSK; 128/256QAM Transmission mode: 2 K - 8 K Video Decoder: Profile level: HEVC (H265) AVC/H.264HP@L4.1, MPEG-4 ASP supported Video resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Decoding: PAL/NTSC Aspect ratio: 4:3 Letterbox, 4:3 Pan &... - Page 26 Size (WxDxH) in mm: 170 x 105 x 36 Weight: 0.27 kg...
