Summary of Contents for Strong SRT 8115
- Page 1 Digital Terrestrial HD Receiver SRT 8115 User manual Bedienungsanleitung Manuel d’Utilisateur Manuale Utente Manual del usuario Manual do Utilizador Felhasználói kézikönyv Instrukcja obsługi Ръководство на потребителя...
- Page 3 Digital Audio Amplifier...
-
Page 4: Table Of Contents
8.0 TRoublEShooTIng 9.0 TEChnICAl SPECIfICATIonS STRong declares that this item complies with the basic requirements and other relevant regulations of directives 2004/108/EC and 73/23/EC, RohS 2002/95/EC Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. -
Page 5: Introduction
PART 1 • English 1.0 InTRoduCTIon 1.1 Safety Instructions do noT InSTAll YouR RECEIvER: In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface which might obstruct the ventilation slots. do noT EXPoSE ThE RECEIvER oR ITS ACCESSoRIES: To direct sunlight or any other equipment that generates heat;... -
Page 6: Equipment Set-Up
It is advised not to store important information on USB storage devices used with „ „ the receiver. Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information. -
Page 7: Your Receiver

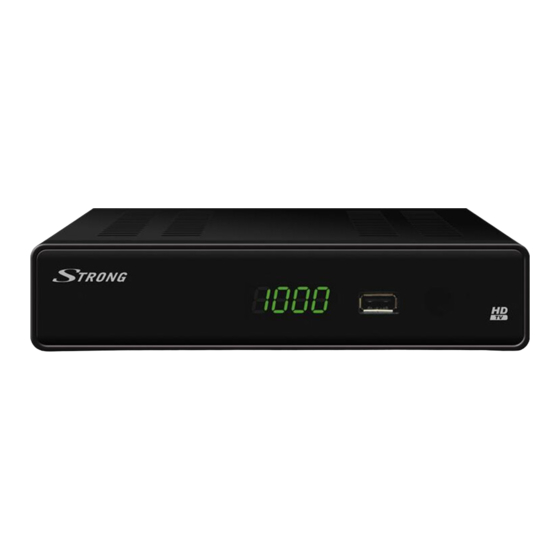

PART 1 • English 2.0 YouR RECEIvER 2.1 dEfAulT PIn: 1234 2.2 front Panel Fig. 1 1. 4 digits display Indicates current time in STANDBY mode Indicates current channel number in OPERATING mode 2. uSb Connector for USB storage devices. 3. IR sensor Point your remote control towards this sensor. -
Page 8: Connection
PART 1 • English 10. tu Menu Off: Decreases/increases the volume level. Menu On: Change settings for specific menus 11. ok Menu Off: Displays the current channel list Menu On: Activates the highlighted menu item. 12. RECoRd Records the TV programme to the connected USB storage device 13. -
Page 9: Connecting To Tv With Rca Cable
PART 1 • English 3.4 Connecting to Tv with RCA cable Fig. 4 TV sets without SCART or HDMI input(s) can be connected to the receiver using suitable RCA cables. Connect one end of the cable to the Audio L, R and VIDEO connectors on the back of the receiver. Connect the other end to the respective inputs on your TV set. -
Page 10: Quick Guide To Using Your Receiver
PIn: 1234). 5.0 QuICk guIdE To uSIng YouR RECEIvER We at STRONG understand that you can’t wait to enjoy your new high definition digital terrestrial receiver. The following quick guide will make you familiar with the basic operation of this device. We... -
Page 11: Operation
PART 1 • English To turn your receiver ON or to Standby, use the q button on the remote control. Choose the desired channel with the pq buttons. Alternatively, you can digit the channel number with the 0~9 buttons on the remote control or press ok in viewing mode to display the channel list. The volume can be adjusted with the tu buttons. -
Page 12: Selection Of Audio Language
PART 1 • English 6.3 Selection of audio language Some channels support a choice of audio formats and/or languages. To select another audio stream, press AudIo in viewing mode. A list with available audio streams will now be displayed. Use pq to select the desired stream and confirm with ok. -
Page 13: Instant Recording
PART 1 • English noTE: Availability of EPG data depends on broadcast. 6.8 Instant Recording Your new receiver allows you to make an instant recording of the programme you are watching. Simply press RECoRd to start the recording. To enter the duration for the recording, press RECoRd again. - Page 14 PART 1 • English To lock or unlock a channel, press REd while in TV Channel List. The red on the top of the screen will move up to indicate that the Lock function is selected. Use pq to select the a channel and press ok to lock or unlock it.
-
Page 15: Installation
PART 1 • English will now pop up at the right of the screen. Use tu pq to select characters and enter them with ok. When you have finished editing, press bluE to enter the changes. When all changes have been made, press EXIT twice. -
Page 16: System Setup
PART 1 • English Use pq to select Channel Scan and press ok to enter. Use tu to toggle between available scan modes: By Channel and By Frequency. If By Channel is selected, use the cursor buttons to select Scan Band and Channel No. If By Frequency is selected, use the cursor buttons to select Frequency and Bandwidth. - Page 17 PART 1 • English manual selections 480i, 576i up to 1080p Please use a setting that matches your TV’s specifications. After a selection is made, you will be asked to confirm. Selection above 576i is only applicable on HDMI output. Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred conversion method.
-
Page 18: Tools
This submenu shows receiver specific information such as hardware version and software version. It also displays our web address www.strong.tv. Please have the Information screen on hand when you call our hotline. The person who answers your call might ask for the information given in this screen. -
Page 19: Games
This receiver is equipped with an Over The Air ‘OTA’ software upgrade function. An Over The Air update might not be available in your region. Please visit our website www.strong.tv or contact your local service hotline for more information about this option. -
Page 20: Media
PART 1 • English 7.6 media The Media menu consists of the following submenus: Media Player, HDD Information and DVR Setting. Use pq to highlight the menu of choice and press ok to enter. Press EXIT to quit. 7.6.1 media Player This function allows playback of different kind of files from the connected USB storage device. - Page 21 PART 1 • English Press 6 to add all files of this directory/folder to the play list. Press 6 again to delete all files from the play list. Press 7 to open the Edit menu. This menu allows accessing the following functions by entering the number: rename 4, copy 5, delete 6, create folder 7.
-
Page 22: Troubleshooting
Formatting will permanently delete ALL data stored on the connected device. Please make a backup copy of all data you wish to keep before entering the HDD Format menu. STRONG cannot be held responsible for loss of data from USB devices used with this receiver. - Page 23 PIn IS 1234 Forgotten PIN code Forgotten channel lock code Contact local Service Hotline or send email to our Support via www.strong.tv Press the Info button on After moving the receiver to Antenna signals are too weak another room/area you are no...
-
Page 24: Technical Specifications
MP3 and OGG * Picture view: BMP and JPEG * *STRONG cannot guarantee the playback of video files although extensions are listed, as it depends on codec used, data bit rate and resolution (all MPEG codec formats are supported). Connectors... - Page 25 PART 1 • English USB 2.0 port: 5 V/800 mA (max.) General Data Supply Voltage: 220 - 240 V AC (SMPS), 50/60 Hz Power Consumption: 4.40 W (typ.), 12.00 W (max) Power consumption in Standby: 0.80 W Operating Temperature: 0 ~ +40° C Storage Temperature: -30 ~ +80°...
